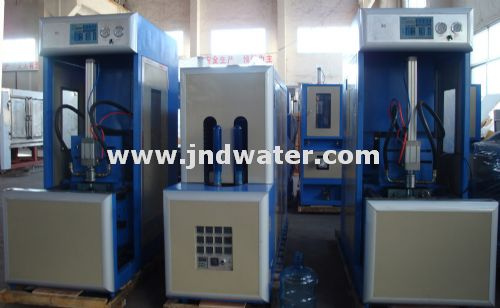

3-6 Gallon Bottle Semi-Auto Blow Moulding Machine (JND-90)
| Price: |
Negotiable |
| Min Order: |
1 |
JND-90 semi-auto stretch blow molding machine is specially designed to produce 3-6 gallon bottle and 25L wide mouth jar. Its max output is up to 90 BPH for 5-gallon bottle and even could reach 120 bottles per hour in certain case.
JND-90 consists of main unit and rotary infrared heater. The ordinary quartz lamp cannot heat preform ideally because the preform wall is excessively thick. The infrared heater with high penetrative force can heat the inside and outside of preform simultaneously and keep preform in even heating, therefore high shaping quality.
What an operator should do during production is just to put heated preform into the blow mold and press the switch, and then computer will take care of the whole procedure.
| General Information | JND-120 | JND-90 |
| Clamping Force | 34T | 30T |
| Clamping Stroke | 330mm | 330mm |
| Max. Stretching Stroke | 550mm | 450mm |
| Bottom Moving Stroke | 70mm | -- |
| Number of Cavities | 1 Cavity | 1 Cavity |
| Theoretical Output | 120BPH | 90BPH |
| Max. Mould Thickness | 400mm | 380mm |
| Space Between Tie Bars | 520*600mm | 480*550mm |
| Electrical System | |
| Voltage Standard | AC 380V/50HZ |
| Number of Heating Zone | 2 Sections | 2 Sections |
| Total Power(Full Loaded) | 15kw | 15kw |
| Container |
| Max. Container Volume | 25L | 25L |
| Neck Diameter Range | 65mm | 65mm |
| Max. Container Diameter | 400mm | 330mm |
| Max. Container Height | 550mm | 550mm |
| Auxiliary System |
| Low Air compressor | 8-10Bar |
| High Air compressor | 30Bar |
| Air Dryer | 2.0/30 |
| Dimension & Weight (L×W×H) |
| Blow molding machine | 2600*1900*1950mm | 1550*820*2000mm |
| Preform Autoloader | -- | 2520*680*1550mm |
| Net Weight | 5.2Ton | 1.4Ton |
| Prod Model: |
JND-90 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
