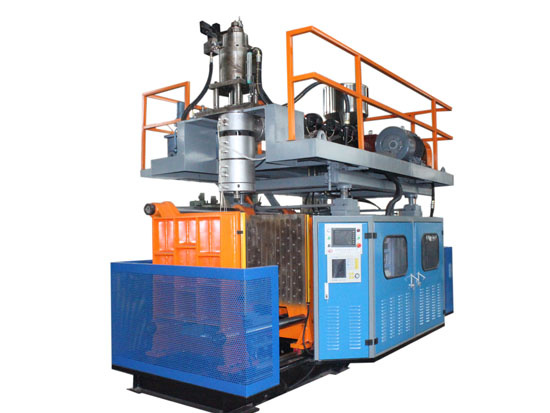

30L Accumulation Injection Type Blow Mold Machine Djb80n

30L Accumulation Injection Type Blow Mold Machine Djb80n
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
DJB80N full automatic bottle blow molding machine(Accumulation injection fixed clamping mold) is specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles, cosmetic bottles, and other plastic containers not over 30L with PE, HDPE, PP, PVC, PETG, PS and so on.

The features of this machine:
(1) Man-Machine integrated touch-type operation system, different Process parameters storage, equipment failure alarm.

(2) Plasticizing system driving motor with frequency conversion, which realizes stepless speed change.

(3) The Die head adopts is of accumulation & injection type, First-in first-out and reasonable flow channel. This can eliminate fusion line of parison and change color quickly.

(4) Three-axis single cylinder, two-way synchronization clamping mechanism. Linear rolling guide rails and column type mold moving is helpful to auto flashing. Also electric eye is installed which can protect operator when mold clamping.

(5) Optional wall thickness control system can adjust uniformity of the axial wall thickness. And Optional multifunctional bottom blowing device and robot can reduce intensity of work.

(6) Multiple screw is available for double layer or transparent liquid lever line.

Basic parameter
Material: PE. PP. PVC...
Max Volume: 30L
Outer Size: 4.7*2.6*4 M
Machine weight: 12T

Plasticizing system
Screw diameter: 80mm
Screw L/D: 1: 24
Capacity: 100kg
Heating sections: 4 zones
Heating power: 20.2 KW
Extruder motor power: 30 KW

Die Head
Center distance:
Heating sections: 4 Zones
Max Die 250 mm

Clamping Force: 200 KN
Distance: 400 --- 900 mm
Dimension: 600*1000 mm

Motor power: 22 KW
System pressure: 120g/cm2

Pressure of air supply 1 Mpa
Consumption of air supply: 48 M3 /min

Pressure: 0.3 ~0.6 Mpa
Flow rate of water supply: 50L/min
Prod Model: DJB80N
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Making Method Of Parison: Extrusion-Blow Molding
Raw Material: Mixing
Certification: ISO9001:2008
Type: Extrusion Blow Molding Machine
Automation: Automatic
Computerized: Computerized
Zhangjiagang Shazhou vehicle company have being specialized in producing trucks and buses since established in 1984, the former was the 7th factory of MUDAN Automobile Group. And Entered plastic machinery business in 2012 and mainly focus on blow molding machine.

Our main products cover from light trucks(2 ton ~5 ton), special purpose truck, mini bus. The truck category includes cargo truck, tipper, box truck, freezer, dumper, tow trucks and tank trucks.

As per blow molding Machines, which are suitable for producing all kinds containers and bottles (capacity from 0.5L to 1000L, all shaps are avaiable).

All our products have been proved to be strong marketable in oversea markets with stable quality and reasonable price. And our products have been to more than 40 countries, such as Ukraine, Syira, Algeria, Colombia and so on.

We offered a good after sales service for our vehicles: We have a team of experienced technicians and engineers in charge of after sales service. All English version Parts Catalogues and Service Manuals are available. Also, We have quicker response for parts supply.

As manufacturer, we are looking forward to cooperating with you and establishing a long term and mutual business relationship.
