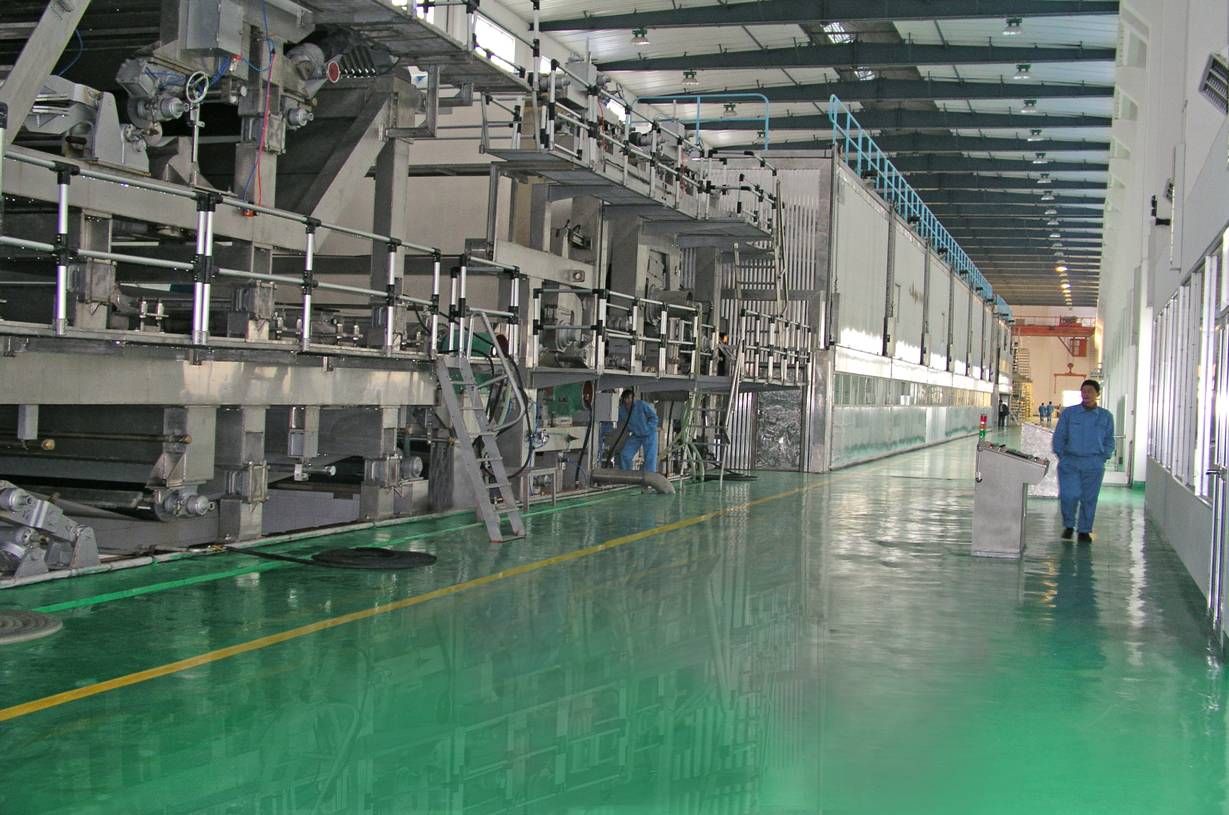

I. Technical data:
1. Material: Waste paper
2. Paper making style: Kraft paper, corrugated paper
3. Weight of paper: 100-250g
4. Net paper width: 3200mm
5. Width of cylinder mould: 3750mm
6. Rail gauge: 4300mm
7. Working speed: 80-150mpmin
8. Capacity: 30-35TPD
9. Drive way: Alternating current frequency conversion, section drive
II. The main structure of equipment:
1. Cylinder section: Φ 1500× 3750mm cylinder mould 2 PCS, Φ 500× 3750mm couch roll 3PCS(including round roller 1PCS); Rubber hardness shore 38 ± 2.
2. Compression section: Φ 800× 3750mm natural marble roller 1 PCS, Φ 750× 3750mm rubber roll 1PCS, rubber hardness shore 90 ± 2, pneumatic pressure device.
3. Dryer section: Φ 2500× 3750mm alloy dryer 2PCS, Φ 750× 3750mm roller 1PCS, rubber hardness shore 90 ± 2, pneumatic pressure device; 2ND dryer sectionΦ 500× 3750mm opposite pressurized roll 1 PCS, rubber hardness shore 90 ± 2, 2ND dryer section route mesh device.
4. Drive and controlling section: 650 speed reduction machine 1 set, 500 speed reduction machine 2set, adopt alternating current frequency conversion, closed digital signal controller.
NO. |
name of equipment |
quantity(set) |
price(USD) |
1 |
3200mm paper machine |
1 |
812, 000 |
2 |
dryer exhaust hood |
1 |
4, 400 |
3 |
exhaust blower |
1 |
1, 300 |
4 |
3200mm winding machine |
1 |
11, 800 |
5 |
3200mm calendar |
1 |
26, 600 |
6 |
3200mm rewinding machine |
1 |
22, 200 |
7 |
15 type vacuum pump |
2 |
2, 960 |
8 |
suction box |
4 |
1, 780 |
9 |
UY100up-flow pressure screen |
1 |
11, 700 |
10 |
2m2high frequency vibrating screen |
2 |
2, 950 |
11 |
606disander |
12pcs |
5, 325 |
12 |
ZSC 1.6 m3centrifugal screen |
1 |
2, 955 |
13 |
380 type double-disc refiner |
3 |
13, 300 |
14 |
20 m3gravitation Decker |
1 |
26, 600 |
15 |
8m3high consistency hydrapulper |
1 |
10, 350 |
16 |
15m conveyor |
1 |
4, 400 |
17 |
Φ 700propeller |
4 |
8, 880 |
18 |
biphase flow pump-100 |
5 |
2, 200 |
19 |
biphase flow pump-150 |
4 |
3, 550 |
20 |
frequency exchange control cabinet |
1 |
17, 750 |
21 |
air pump cabinet |
1 |
2, 200 |
22 |
pulp consistency testing and controlling apparatus |
1 |
5, 900 |
23 |
all the working board |
1 |
7, 400 |
24 |
4Ton coal boiler |
1 |
41, 500 |
Zhengzhou guang mao machinery manufacturing Co., Ltd. is located in zhengzhou city, China. We are a leading and professional paper machine manufacturer in China.
We specialize in the manufacture of paper machines, paper processing machines and paper machine parts.
Our company has perfect service system. We have experienced engineer teams, who can supply perfect service during the whole deal, including technology consultation, civil work design, project evaluation; Installation and testing the whole production line; Training engineers and workers; Meanwhile, we also supply spare parts for long time and manufacture machines in accordance with customers' special requirements.
1. Following is main introduction of our company:
(1) total area of factory: 20, 000m2;
(2) total qty of workshop: 4;
(3) workers: 110 workers;
(4)engineer qty: 25 engineers;
2. Why you choose us?
(1) professional engineer team with 30years experience;
(2) we can supply you turn -key solution without any trouble;
(3) we have strict quality control system and ensure there is no unqualifiedly product;
(4) professional installation technician and clear technical training for your workers;
(5) strict recalling system: If any problem of machine, we will recall it and change a new one for free;
3. About shipment:
1. Sea transportation and rail way transportation is our main shipment way.
2 the delivery time is decided by your the machine model, we can also adjust delivery time according to your special requirement;
We hope to establish friendship and business relationship with friends from all over the world.
