Adopt imported P20, 2316 etc, steel.
Hot runner is designed advanced and reasonably. Each cavity heat controlled independently, temperature uniform.
Each cavity and core have independent cooling system, which can shorten production cycle time.
Cavity can be changed, convenient to change remark of the cap.
For this kind of mould, we have significant experience in the manufacture of cap moulds for different types of closures by customer's demand.

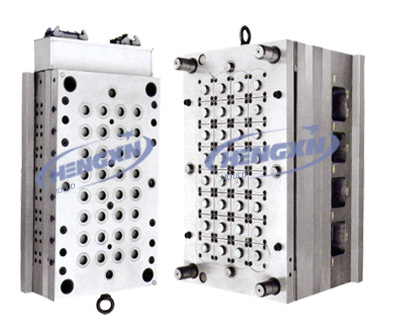

Bottle Cap Mould
Caliber No. Of Cavity 16Cavity 24Cavity 32Cavity
28mm W*L*H(cm) 48*47*45 64*47*49 80*49*53
Weight(kg) 720 1000 1450
30mm W*L*H(cm) 48*48*57 66*52*54 85*53*58
Weight(kg) 920 1300 1850
38mm W*L*H(cm) 54*58*54 74*58*59 95*63*63
Weight(kg) 1180 1750 2600
These measurements will change in case the products are improved
Established in 1992, Zhejiang Taizhou Huangyan Hengxin Mould & Plastic Co., Ltd. is dedicated himself to the producing & researching of PET preform moulds, bottle blowing moulds, cap moulds and injection moulds.
Our company owns high-precision numerical control machine tools and processing centers, advanced equipments and detectors, superior crafts, strict and sound quality management system. We also assemble a group of professional technique elites and leading scientific and to ensure the stability and reliability of our products.
