Mould Manufacturers and Factories

Home Mould Products 4 Axis CNC Machine for Wood Mould

4 Axis CNC Machine for Wood Mould

4 Axis CNC Machine for Wood Mould
Price: US $ 31000-31200set
Trade Terms: FOB,CFR,CIF
Min Order: 1set
Pay Type: L/C,T/T,Western Union

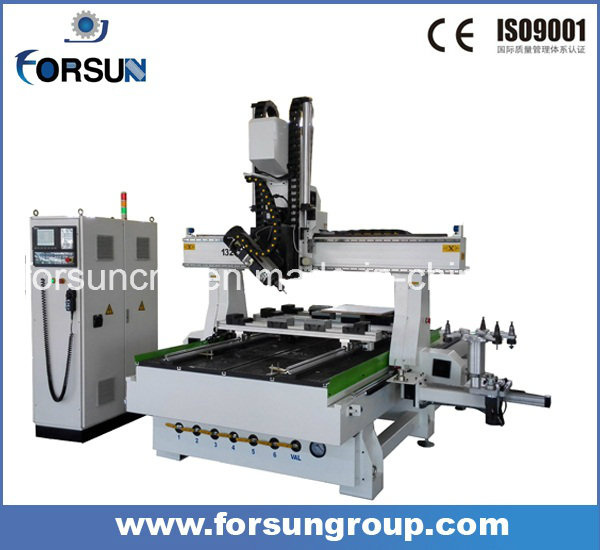

                                       FS1325D-4Axis CNC Machine for Wood mould

Applicable Industry and materials:

1) Mould: Wood, wax, wood, gypsum, foams, wax
2) Furniture: Wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and
3) The wood products: Voice box, game cabinets, computer tables, sewing machines table,
4) Plate processing: Insulation part, plastic chemical components, PCB, inner body of car, bowling
Tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Machine configurations

1.9.0kw HSD spindle original famoue brand from Italian, also can choose Kolumb spindle
2. SYNTEC control system from Taiwan with high performance and competitive price
3. Yaskawa servo motor and drives from Japan with high precision and long life
4. HIWIN linear guide - made from Taiwan, used for linear reciprocating stadium
5. Working area: 1300*2500*400mm
C Rotary Axis: 360o
6. Whole cast steel structure thicken to 8mm
7. Drive System: X, Y-Rack Z-Ball Screw, Z with high precision ball screw
8. Automatic Tool Calibration - To guide rail and slide block, make it run better
10. Schneider electrical components - original brand from France
11. Japanese Omron Switch with long life
12. APEX Reudcer from Taiwan
13. T-Slot table with Aluminum sheel - Use clamp fixed materials
14.380V/3ph/50 or 60HZ
Prod Model: FS1325D-4Axis
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item: 4 Axis CNC Machine
Spindle: 9.0kw Air Cooling Spindle
Controller System: Syntec Controller
Rack And Pinion: Helical Rack and Pinion
Wroking Size: 1300*2500*400mm
Table: Vacuum Table
Motor: Yaskawa Servo Motor
Warranty: 18 Months
Spindle Layout: Vertical
Spindle Number: Single-Spindle
Feed Mode: Mechanical
Controlling Mode: CNC
Certification: FDA
Forsun is a leading global manufacturer of CNC routers, plasma arc cutting machines, and laser cutting machines. All the machines have been certified by CE. In manufacturing, the quality processes used are directly reflected in the excellent product that is delivered to your door. We have partnered with specific component manufacturers to deliver the best components for our machine systems. Our focus is on integrating advanced technology and value into systems that are highly productive, easy to use and built to last. Some of our strategic vendors include HSD Spindles, THK Bearing Systems, Siemens control system, YASKAWA servo, HIVIN linear guide and Eisler Reducer. As a machine builder, the exacting manufacturing processes we have created ensure that even custom systems can be engineered, manufactured and delivered with the shortest manufacturing lead times in the industry. We are near to you physically, and only a phone call or email away electronically for machinery, software and consumable sales as well as after sales support. Count on Forsun to work with you in your machine decision process, to build you an excellent quality CNC router that will work for years, and to continue to support you and your machine decision for years to come. We strive toward exemplary customer satisfaction, employee career fulfillment and corporate citizenship. Success in these areas, we believe, will yield long-term benefits for the Forsun brand, Forsun employees and our partners.
