Jtp Mould is known as one of the best manufacturers and exporters for plastic injection moulds for household articles, chair mould, pallet mould, crate mould, automotive mould and so on. Our moulds are mainly exported to Italy, Australia,Saudi Arabia,Jordan,Argentina,Colombia,India, Malaysia, Philippines and other 20 countries.

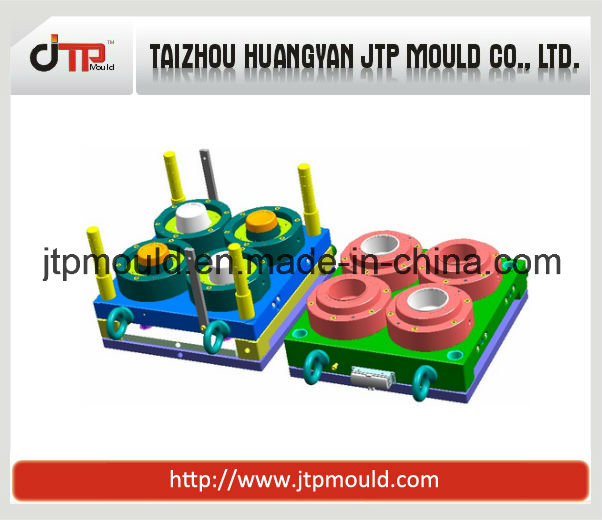

1. More detailed about 4 cavities plastic food container mould
name 4 cavities plastic food container mould
mould material H13
cavity 4 cavities
runner hot runner
mould design 3D/2D
design days 1 day
mould life 1 million shots
plastic material PP PS
ejection fully automatic
payment 40% of deposit by L/C T/T 60% of balance by L/C T/T
delivery time 50-60 days
specification depends on customers' demand
2. Why thin wall containers are so difficult to molding?
Generally, during injection molding, thin wall container easy to appear uneven wall thickness and as the wall thickness is too thin, it needs high speed and high pressure injection, so the machine should be bigger than machine for general product, it is not because of its mould size is bigger or it needs big injection weight, it just because it needs high injection pressure, so the clamping force should be big.
3.Why we can product good plastic thin wall moulds?
As for thin wall product moulds, the dimension of the moulds should be controlled precision. For such products, we always use high speed milling machine and some other high precision tooling machine to make it, the tolerance should be controlled in 0.02mm.Regarding the ejection system, we usually use air to blow first, then the container will not stick to the core and then use double ejector plates drived by hydraulic cylinders to ejector the product off the mould. As the container is too thin, so we generally don't use ejector pins, because ejector pin will easy lead to deformation.
Cooling system is also very important to such thin wall product, just as I stated above, for such product molding, it needs high speed and high pressure. So the mould temperature will be high, it is very important to control the mould in low temperature, so we should add water channel as more as possible, and it should be near the product surface. Besides, we always adapt with BeCu to help the mould cooling, because BeCu has good thermal conductivity. Even though, the price will be much high than mould without BeCu, but the good cooling will help make the product very beautiful.
Jtp Mould is located in Huangyan, Zhejiang, China. It only takes 40 minutes from Luqiao Airport and takes only 10 minutes from Taizhou train station. We enjoy the convenient transportation in our city.
Jtp Mould is known as one of the best manufacturers and exporters for plastic injection moulds for household articles, chair mould, pallet mould, crate mould, automotive mould and so on. Our moulds are mainly exported to Italy, Australia, Saudi Arabia, Jordan, Argentina, Colombia, India, Malaysia, Philippines and other 20 countries.
We have a full range of CNC machining centers, large gantry milling machines, vertical milling machines, CNC engraving Machines, electric spark(EDM), wire-cutters, etc. We have advanced technology for CAD / CAM / CAE design and rich experiences in mould making. This makes us to have great ability to manufacture big size moulds, complex moulds, deep-cavity moulds, thin wall moulds and high precision moulds.
We have a strong technical team. We have 5 senior designers and 20 engineers who has more than 15years experiences in mould making. Our designers are good at designing new products and mould structure. In order to avoid any defects during the mould manufacturing, we usually do the mould flow analysis for the mould before we start the work on it. After mould flow analysis, we decide the mould injection gate and structure. Therefore, the mould can be finished successfully and smoothly.
Our current main business are as follows:
1) household moulds: Plastic chair, table, buckets, laundry basket, trash bin, kitchenware, etc.
2) Industrial moulds: Pallet mould, crate mould, paint container mould, etc.
3) Thin wall moulds: Thin wall cup, thinwall tablewares, etc.
4) Pipe fitting moulds: PPR pipe fittings, PE, PVC pipe fittings.
5) Automotive parts: Bumper mould, dashboard mould, etc.
6) packaging moulds: Blowing mould, bottle mould, cap mould, etc.
Why will you choose us:
1. Good quality
2. Punctual delivery time
3. Competitive prices
4. Excellent after-sale service.
5. Professional communication with customers during mould process.
6. We can provide whole set of production line for injection molding.
We always focus on perfection on quality and services. We would like to supply our best services and our best products to all the customers.
Please feel free to contact us by telephone, email or Messenger any time if you are interested in our company. You are always welcome to visit our company.
Let' S start our cooperation and create mutual benefits for each other soon!
