400 Ton Plastic PP/Pet Injection Molding Machine

Name: 400 Ton Plastic PP/Pet Injection Molding Machine
Brand: themouldinfo.com
SKU: 687461182
Availability: InStock
Rating: 4.8 (79 reviews)

Price:	US $ 46000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P

Contact Supplier

Changzhou Worldmark Machinery Co., Ltd.

Showroom Product Company Profile

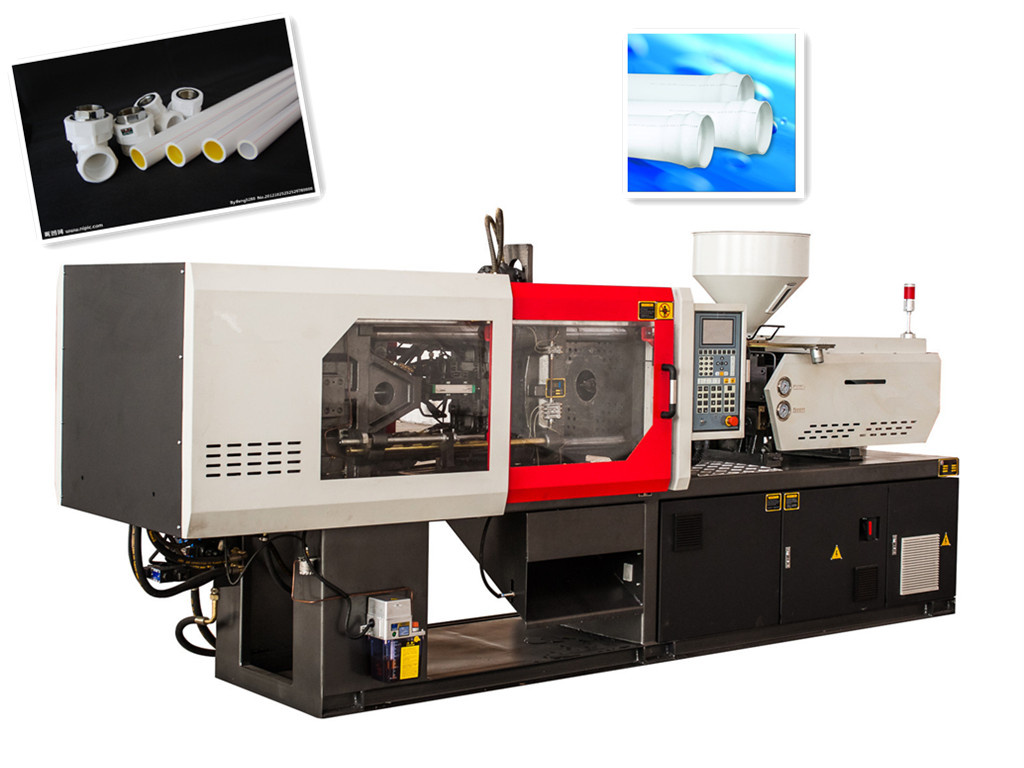

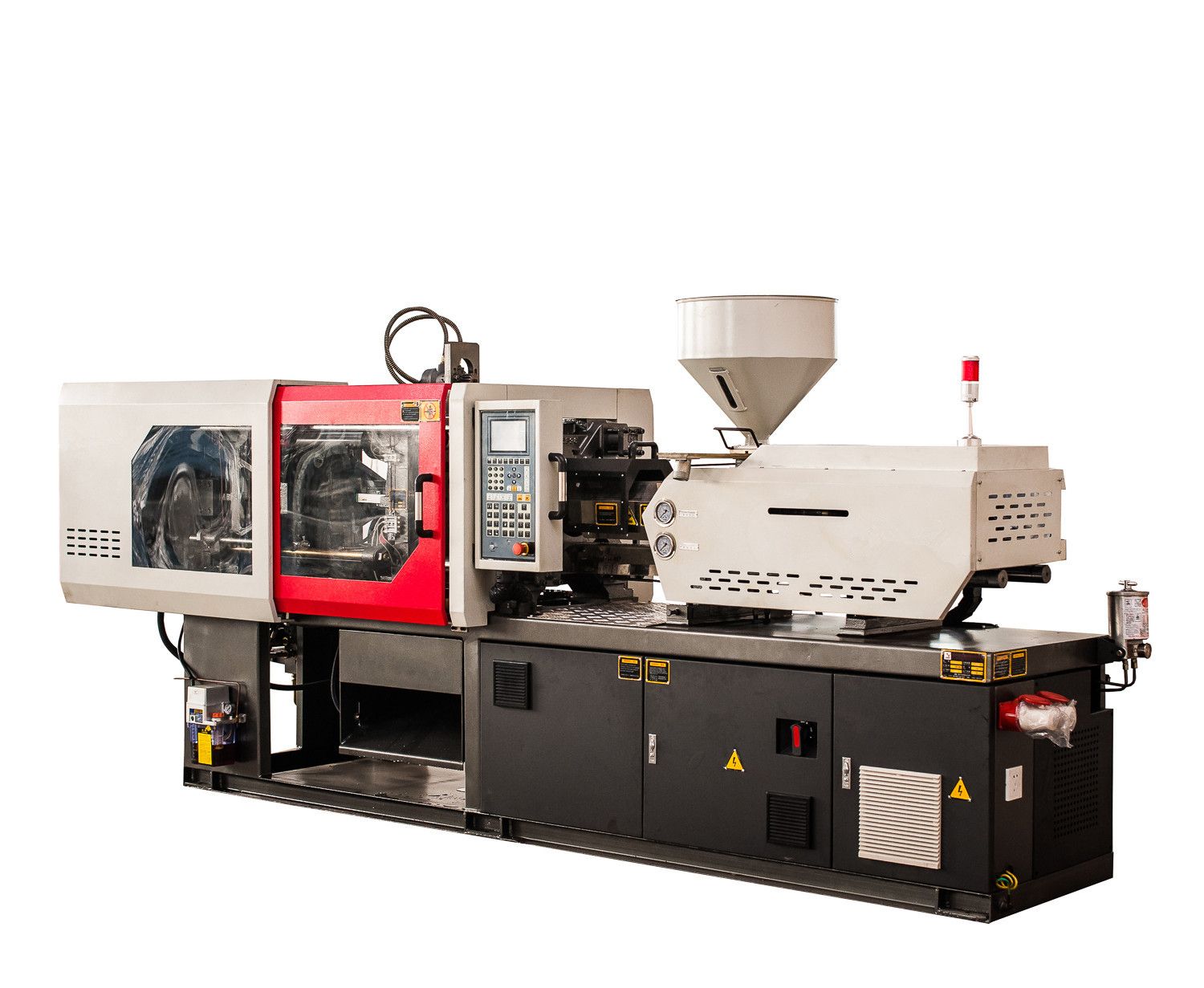

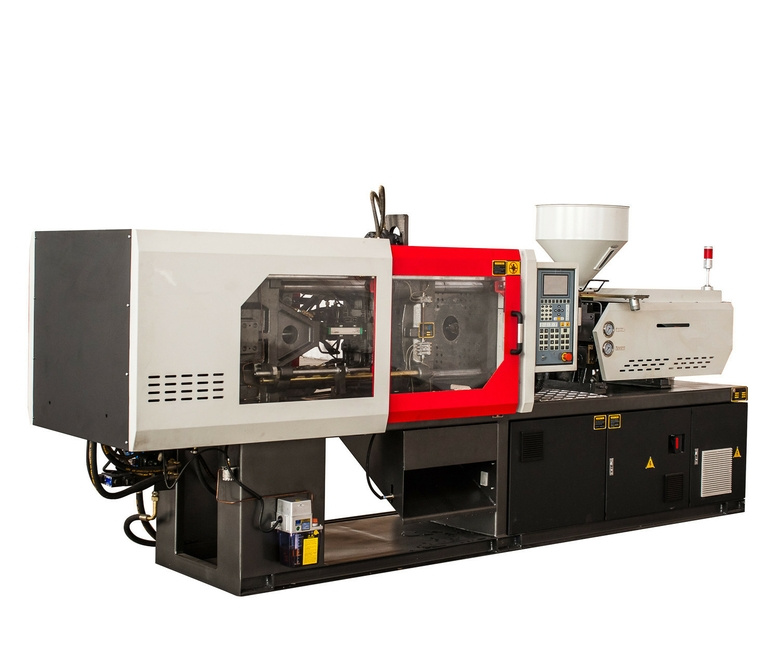

400T Pet Preform Energy Saving Plastic Injection Molding Machine

Product Description

We are professional plastic injection molding machine manufacturer for all kinds of production requirements, Clamping force from 50 to 1680T , injection weight from 50 to 10000g . with best price/ performance ration of any machine on the market.

Some of the important features:

Clamping system: Faster response, stable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation,molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

Other Information

Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil,good for pump and valves
Long working life: Imported spare parts and updated version
Aftersales service: Professional & timely
Delivery time:30-60 days
Port of dispatch: Shanghai

			WMK-400
			A	B	C
Injection unit	Screw diameter	mm	70	75	80
	Screw L/D ratio	L/D	21.4	20	18.8
	Theoretical shot size	cm 3	1385	1590	1809
	Injection weight	g	1260	1447	1646
	Injection weight	oz
	Injection pressure	Mpa	195	158	139
	Injection rate	g/s	310	356	405
	Injection stroke	mm	700
	Screw speed	rp.m	0~165
	Plasticizing capacity	g/s	60	65	70
Clamp unit	Clamp force	KN	3980
	Movable platen stroke	mm	700
	Space between tie bars	mm	720*720
	Mold thickness	mm	280~760
	Ejector force	KN	110
	Ejector stroke	mm	200
	Ejector number	n	13
Other unit	Heater power	KW	24.8
	pump motor power	KW	37
	Oil pump pressure	Mpa	16
	Machine dimension	mm	7.32.02.2
	Machine weight	t	16
	Hopper capacity	Kg	75
	Oil tank capacity	L	850

Prod Model:	WMK-400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Injection Rate:	190g/S, 162g/S, 140g/S
Pump Motor Power:	37kw
Machine Dimension:	7.32.02.2 Mm
Machine Weight:	16t
Automation:	Automatic
Structure:	Horizontal
Computerized:	Computerized
Plastic Type:	Thermoplastic
Type:	Injection Molding

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
