5-Layer Multi-Die Head Extrusion Machine

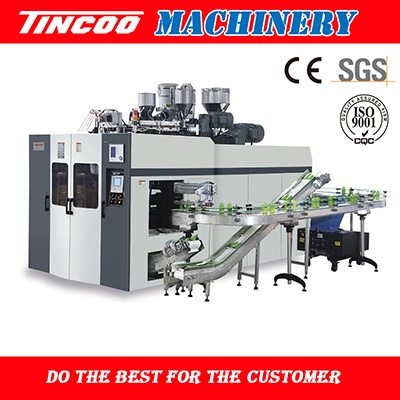

 5-layer multi-die head extrusion machine

5-layer multi-die head extrusion machine DHD-5L-MIII/IV/V/VI,DHD-12L-MIII/IV/V/VI
It is our newest design: 5-layer, double head, four head, fully -auto extrusion blow molding machine.
Advantages of automatic extrusion blow molding machine:
This machine fused multilayer co-extrusion, PLC, electro-hydraulic proportional and frequency conversion and others advanced technology, with high robotization, fast and stably operation, and high productivity. The plasticization of the die reaches advanced international standard. The machine is suitable for producing the high-performance multilayer composite plastic hollow products which with aesthetic appearance, high strength and good barriers, anticorrosion, and anti-leakage.
At present, we are one of the leaders in the field of co-extrusion techniques.
Products widely used in foods, medicine, chemical industry and other fields. Could prolong the shelf period, and bring good economic benefit.
Advanced processing equipment:
Introducing advanced technology form Germany,Italy,Japan etc.
Involving advanced design and production of super large-scale blow-molding machine and engineering management capability.
Holding over 40 items Patent Technologies.
After sales service:
With good brand reputation and attitude of customer-centric, we invite special technologists responsible for after sales.
Service hotline is 24-hour on call.
Fast response: domestic call is handled within 12 hours.
International call is handled within 20 hours.


Specification		DHD-5LII-MIII/IV/V/VI	DHD-12LII-MIII/IV/V/VI
Material		PE,PP,EVOH,PA,EVA	PE,PP,EVOH,PA,EVA
Max.container capacity	L	5	12
Number of die	set	1,2,3,4	1,2,3,4
Machine Dimension	m	4.15×1.85×2.65	4.8×2.95×3
Total weight	ton	8	11
Accumulator head		DHD-5LII-MIII/IV/V/VI	DHD-12LII-MIII/IV/V/VI
Number of die heating	zone	11	11
Power of die heating	KW	11	15
Max die-pin diameter	mm	80	140
Center distance of twin-die	mm	160	240
Center distance of tri-die	mm	150	180
Center distance of four-die	mm	140	160
Clamping Unit		DHD-5LII-MIII/IV/V/VI	DHD-12LII-MIII/IV/V/VI
Clamping force	KN	70	110
platen opening stroke	mm	209-510	209-620
platen size	mm	350×380	460×500
Max mould size	mm	400×380	560×500
Mould thickness	mm	210-300	220-380
Extruder Unit		DHD-5LII-MIII/IV/V/VI	DHD-12LII-MIII/IV/V/VI
Screw diameter	mm	60+50+30×3	80+70+30×3
Screw L/D ratio	L/D	28:1/25:1	28:1/25:1
Extruding Volume	Kg/hr	65+45+7×3	130+95+7×3
Number of heating zone	zone	3	4
Extruder heating power	KW	9+7.5+3×3	20+13+3×3
Extruder driving power	KW	15+11+5.5×3	37+30+5.5×3
Power		DHD-5LII-MIII/IV/V/VI	DHD-12LII-MIII/IV/V/VI
Oil pump drive power	KW	11	11
Fan power for screw	KW	0.25	0.25
Total power	KW	90	155
Air pressure	Mpa	0.6	0.6
Air consumption	m3/min	0.6	0.8
Average energy consumption	KW	40	65

Attention:5L-12L 5 layers blow moulding machine inquires 3-4 dieheads,so the platen and frame should be bigger.
