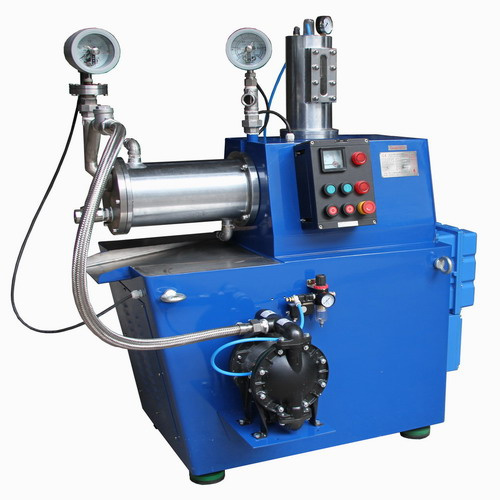

5L horizontal bead mill-Model (ZM5 Series)
5L bead mill/sand mill are the min. size we produce for the production scale. The effective grinindg chamber is only 5 liters, then they suitable for small batches.
Even 5L, there are different materials and constructions to meet with the different grinding requirements. For example,
"ZM5SB3310-X" specification.
1) 5L
2) Double mechanical seal
3) Ex proof
4) Mold steel for inner grinding chamber and grinding discs
5) Double diaphragm fluid transfer pump
6) Without AC drive
7) Dynamic gap separator
8) Chilling water jacket
Option:
1) Single mechanical seal, double mechanical seal.
2) Ex proof or Non Ex proof.
3) SS304, hard alloy, mold steel, ceramic, PU etc. materials selection.
4) Double diaphragm fuild transfer pump, gear pump, screw pump.
5) AC drive or without AC drive.
6) Dynamic gap separator or static gap separator.
|
Model Parameter |
ZM5S |
ZM5D |
ZM5SB |
ZM5DB |
|
Effective cylinder volume (L) |
5 |
5 |
5 |
5 |
|
Main motor power (KW) |
7.5/11 |
7.5/11 |
7.5/11 |
7.5/11 |
|
Grinding medium load (L) |
About 85% of the cylinder volume |
|
Materials in/outlet pipe diameter |
G3/4 |
G3/4 |
G3/4 |
G3/4 |
|
Cooling water in/outlet pipe diameter |
G3/4 |
G3/4 |
G3/4 |
G3/4 |
|
Pump pressure |
0.7MPa |
|
Compressed air consumption(m 3 /min) |
0.2 |
Since its establishment in 1995, Chongqing Degold Machine Co., Ltd. Has always endeavored to develop grinding and mixing technique in chemical industry. Now we have developed various models Horizontal Bead Mills and Dispersers to fulfill industrial production needs ranging from paints, inks, pharmaceuticals, food, dyes, cosmetics, petrochemicals, and non-mental mines.

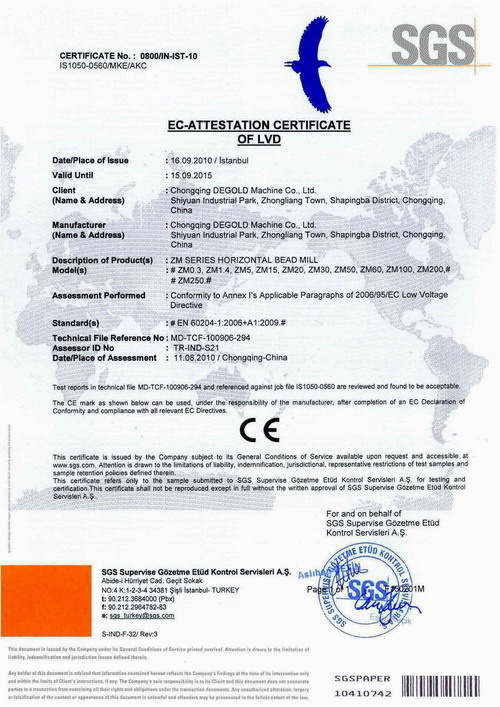

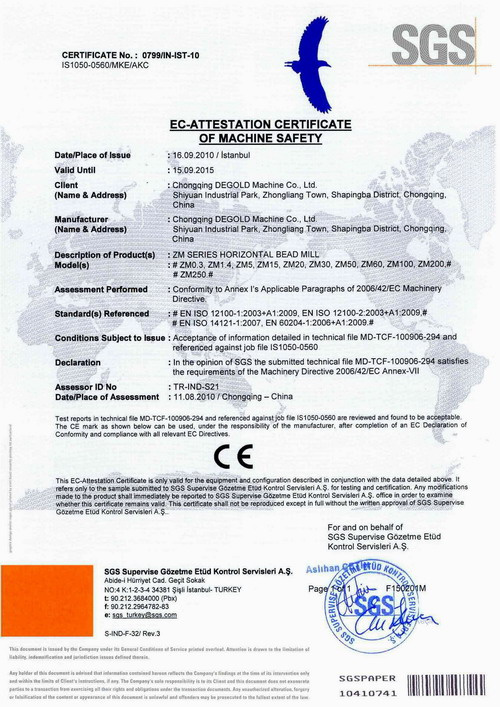

All Degold technical experts have been in this field since 80s in the 20th century. We produce strictly as the requirements of ISO9001: 2008 Quality System and CE standards. Degold designs, develops, constructs, and installs production lines and advises, trains customers.
Machines are popular in domestic and oversea market. We have cooperated with so many famous painting and powder coating manufactures such as Akzo Nobel, 3M, Clariant, and Sherwin-Williams Co., Ltd. etc.
From 2007, we have begun to service oversea customers directly. Our machines have been exported to many countries and regions such as Australia, Argentina, Belgium, Brazil, Colombia, Chile, Indonesia, India, Iran, Malaysia, New Zealand, Peru, Paraguay, Pakistan, Poland, Singapore, South Africa, Spain, Tunisia, Thailand, Uruguay, Vietnam etc.
