Home Mould Products 900ton Injection Molding Machine with Energy-Saving Servo Motor

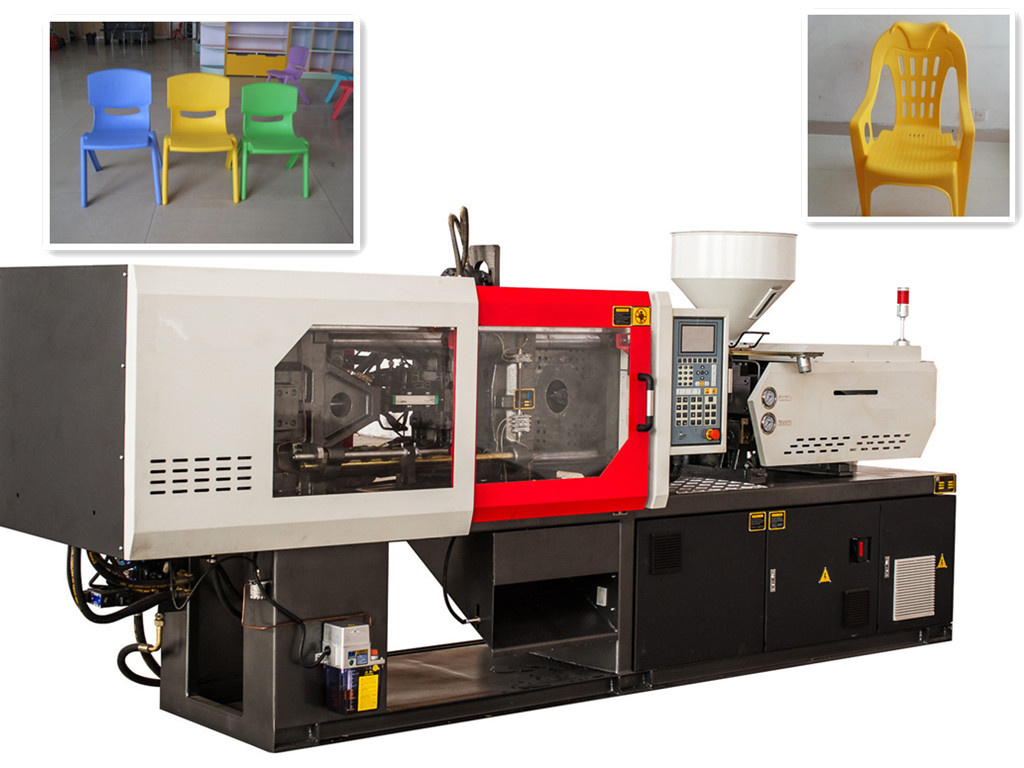

900ton Injection Molding Machine with Energy-Saving Servo Motor

900ton Injection Molding Machine with Energy-Saving Servo Motor
Price: US $ 130000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
900ton Injection Molding Machine with Energy-Saving Servo Motor

Product Description

We are professional plastic injection molding machine manufacturer for all kinds of production requirements, Clamping force from 50 to 1700T, injection weight from 50 to 17000g. With best price/ performance ration of any machine on the market.

Some of the important features:

Clamping system: Faster response, stable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation, molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

Other Information

Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: On time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil, good for pump and valves
Long working life: Imported spare parts and updated version
Aftersales service: Professional & timely
Delivery time: 30-60 days
Port of dispatch: Shanghai
  Unit WMK-900
Screw Diameter Mm 105 110 120
Screw L/D Ratio L/D 22 21 19.2
Short Size Cm3 4396 4825 5742
Injection weight G 4000 4390 5225
Injection Rate g/s 679 821 929
Plasticizing capacity g/s 90.5 102.5 114
Injection Pressure Mpa 184 152 104
Screw Speed Rpm 0-110
Clamp Force KN 9000
Space Between Tie Bars mm 1000*1000
Toggle Stroke mm 1000
Max. Mold Height mm 1000
Min. Mold Height mm 400
Ejector Stroke mm 325
Ejector Tonnage KN 200
Ejector Number P 21
Max. pump Pressure Mpa 16
Pump motor powder Kw 37+45
Heater Power Kw 58.6
Machine Dimension(L*W*H) M 11.2*2.6*3.8
Oil Tank Capacity L 1600
Machine Weight T 45
Prod Model: WMK-900
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Features: High Speed, Saving Electricity
Automation: Automatic
Structure: Horizontal
Computerized: Computerized
Plastic Type: Thermoplastic
Clamping Way: Hydraulic & Mechanical
Certification: ISO9001:2008
Type: Injection Molding
Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
