We are recognized leading manufacture and exporter of woodworking CNC engraving machine, sign making advertising CNC router machine, cutting plotter, CNC laser engraver which are CE, RoHS, and BV certificated. I noted that you're on the market for CNC products.

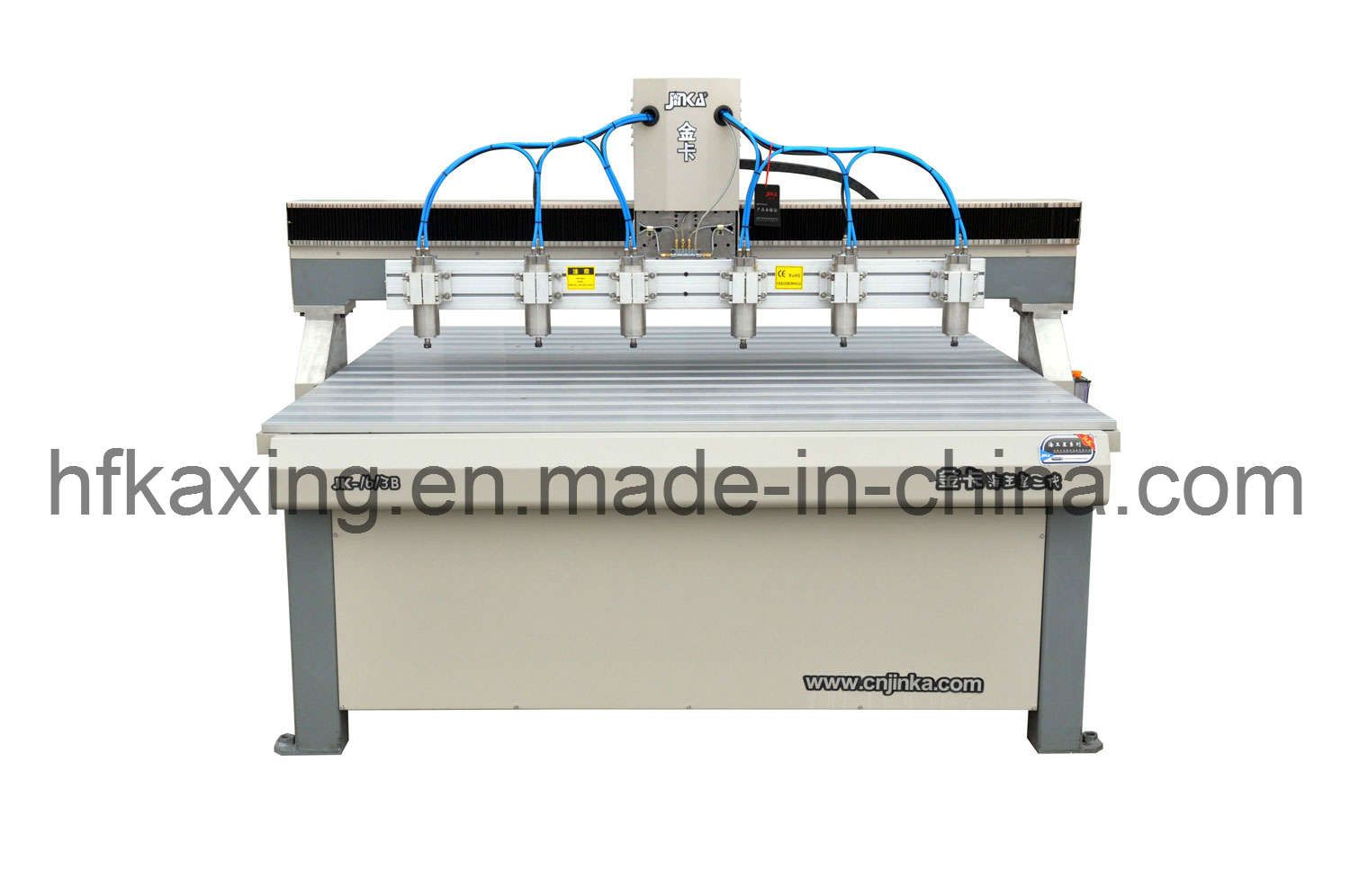

Competitive Advertising CNC Router Machine (JK-1613E)
Applification:
Classical black wood furniture, European style furniture, archaized furniture, figure of Buddha, bamboo handicraft, brick engraving, jade jewelry, artificial marble sculpture, copper or aluminum handicraft, hairpin, photo frame, art ware, toy, architecture model, decoration, advertising signs and scutcheon making, acrylic cutting, blister light boxes, jade jewelry, mobile phone panel, electrocircuit board, electric appliance panel, moon cake mould making, etc.
Competitive Advertising CNC Router Machine (JK-1613E)
Features:
-Integrated casting body features rigidity and non-deformation.
-Employing imported high precision rolling ball screw possesses high accuracy and speed.
-Adopting constant power frequency adjustable water cooling spindle features good performance, large torque, and high efficiency.
-Intellective control of the processing speed, idle speed and down speed improves efficiency and quality of processing, also extends the tool's life time.
-CNC control system features recovery function by remembering the working coordinate and continue to work with it after cutting of power or braking of tools;
-Compatible with any advanced software such as Type3/Artcam/CAXA/UG/PRO-E/Mastercam/Ucancam and so on.
Competitive Advertising CNC Router Machine (JK-1613E)
Standard configuration:
Control system: NC Studio motion control system
Driver: Stepping motor
Transmission type: Rolling ball screw transmission
Spindle: Variable frequency constant power water cooling spindle
Guide rail and motion slides: Linear square rail and motion slides imported from Taiwan
Body: Casting body
Transmission: Coupling connection rolling ball screw transmission
Table: T-slot aluminum table
Gantry: Steel gantry
Bracket: Integrated casting bracket
Dust cover for all axes
Manual lubricating system
Coupling Connection mechanism
Platform integrated with body
Competitive Advertising CNC Router Machine (JK-1613E)
Options:
-Various spindles meet different applications
-NC Studio PCIMC-6B motion control system
-Manual pulse generator
-DSP control system
-Panasonic, Yaskawa AC servo system
-PVC board
-Dust collector
-Air cooling spindle
-Industrial cooling system
Model Available |
JK1313E |
JK1325E |
JK1613E |
Working Area (mm) |
1300*1300 |
1300*2500 |
1600*1300 |
Feeding height (mm) |
180 |
Idle speed |
20m/min |
Processing speed |
10m/min |
Spindle power |
800W~1.5KW Variable frequency water cooling spindle |
Rotary rate |
6000 or 24000 rpm/min |
Working voltage |
AC220V/50Hz or AC380V/50Hz |
Engraving tool |
Φ 3.175/4/6/12.7mm |
File format |
G code/ HPGL |
Positioning precision |
± 0.03mm |
Repeat positioning precision |
± 0.02mm |
Hefei Kaxing Digital Control Equipment Co., Ltd. is a high-tech industry enterprise integrating research, development, manufacturing, sale and after-sales service. Our company mainly focuses on manufacturing CNC engravers, laser engravers, mould engravers, cutting plotters and CAD plotters.
The Gold Cut series products of our company have been widely used in woodwork industry, advertisement decoration industry, sign and scutcheon industry, art craft and gifts industry and module industry. With high technique, reliable quality and excellent character, our products have won a good reputation in the world. Our products sell well not only in domestic market, but also in Southeast Asia, Europe, America and Africa.
We follow in "Gold Cut brand, Gold Cut quality and Gold Cut Service" principle to pursue excellent, aggressive and innovative.
