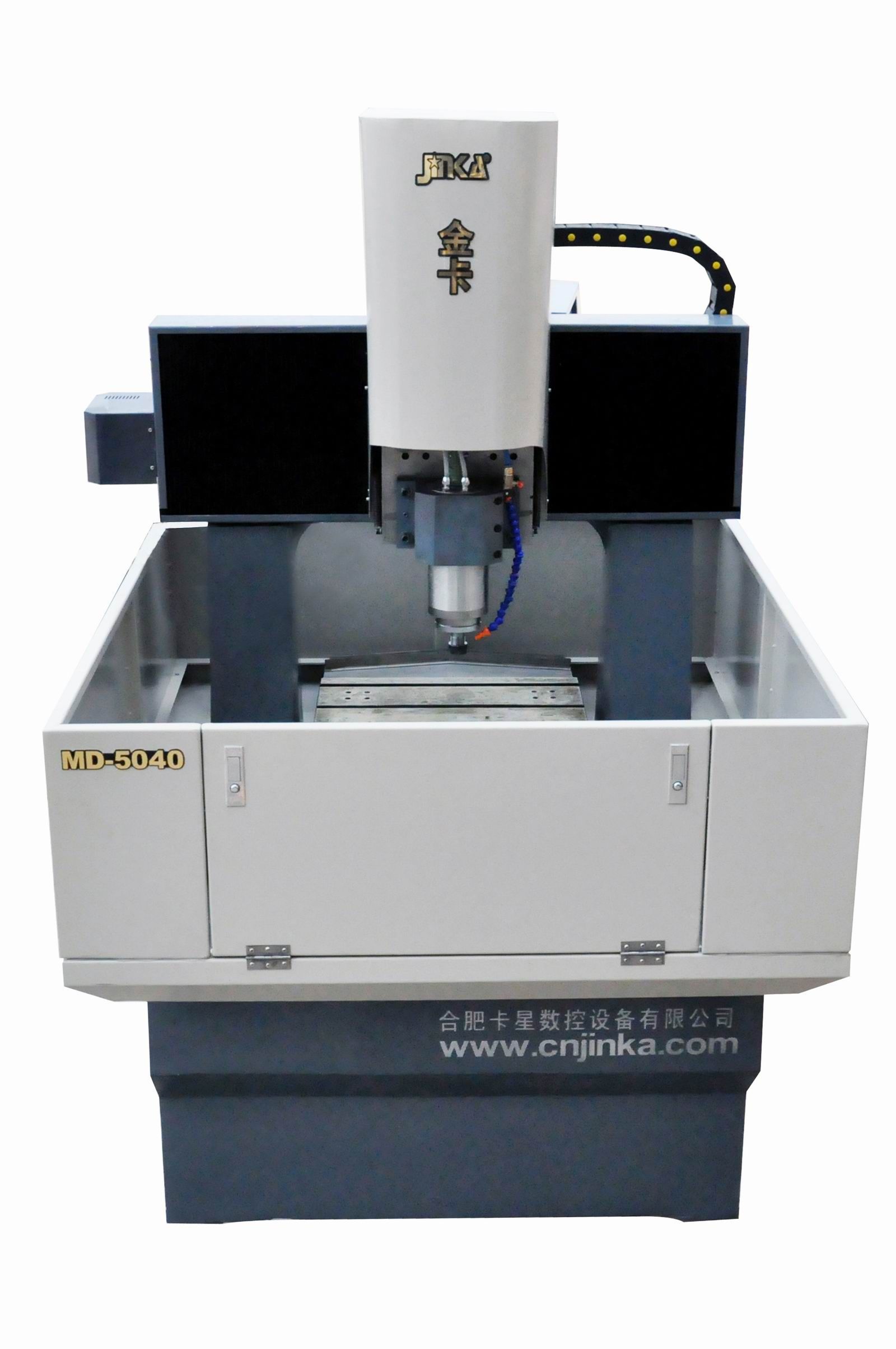

Mould engraving machine
Features
*Adopting casting structure for body, gantry, brackets features better rigidity.
*Fully-closed or semi-closed design
*Imported rolling ball screw and linear square rail
*High precision, powerful, high speed spindle
*Compatible with various popular engraving software features easy operation by employing international standard G code file format.
*Adopting imported servo system featuring high precision and long time working possesses malposition detecting and alarm function
*Movement of table ensures high accuracy of processing.
*All the mount surfaces for square rails are well polished before installation.
Standard Configuration
*NC Studio PCIMC 6B motion control system
*750W; Panasonic AC servo system for all axes.
*Imported linear square rails
*Frequency adjustable constant power water cooling spindle
*Casting body
*Body, brackets, gantry, platform, Z axis connecting board and skip board that made of HT200~250 cast iron.
*Dust cover, Manual lubricator
*Control cabinet
Options
*Taiwan Syntec control system
*NK200 CNC system
*Air cooling spindle
*Rotary axis
|
Model |
MD-3020 |
MD-5040 |
|
Dimension |
300× 200mm |
500× 400mm |
|
Feeding hight |
70mm |
250mm |
|
Idle speed |
10m/min |
15m/min |
|
motor |
5m/min |
10m/min |
|
Processing speed |
1.0KWfrequency adjustable water cooling spindle |
3.0KWfrequency adjustable water cooling spindle |
|
Spindle power |
6000 or 24000 rpm/min |
|
Rotary rate |
AC220V/50Hz |
|
Working voltage |
3.175/4/6mm |
|
Engraving tool |
G code/HPGL |
|
File format |
± 0.02mm |
|
Positioning precision |
± 0.01mm |
|
Repeat positioning precision |
NC studio system |
Hefei Kaxing Digital Control Equipment Co., Ltd. is a high-tech industry enterprise integrating research, development, manufacturing, sale and after-sales service. Our company mainly focuses on manufacturing CNC engravers, laser engravers, mould engravers, cutting plotters and CAD plotters.
The Gold Cut series products of our company have been widely used in woodwork industry, advertisement decoration industry, sign and scutcheon industry, art craft and gifts industry and module industry. With high technique, reliable quality and excellent character, our products have won a good reputation in the world. Our products sell well not only in domestic market, but also in Southeast Asia, Europe, America and Africa.
We follow in "Gold Cut brand, Gold Cut quality and Gold Cut Service" principle to pursue excellent, aggressive and innovative.
