Specifications
Equipped with expanding mould of relative specifications,
can realize full procedure automatic production of straight opening

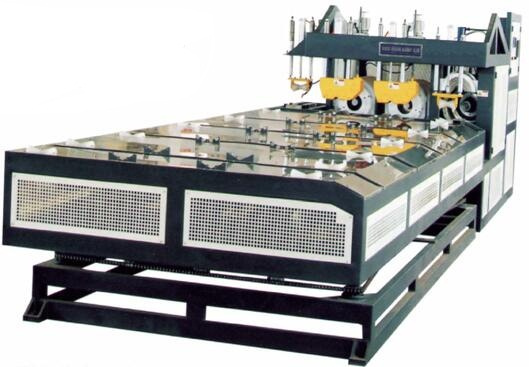

Application:
The machine can be used for the belling of PVC solid wall pipe, pvc double-wall corrugated pipe and PE double-wall corrugated pipe.The belling type:U type andR type.
Main Technical Parameter:
Model | SGK160 | SGK250 | SGK400 | SGK630 | SGK1000 |
| Pipe OD(mm) | 40-160 | 50-250 | 160-400 | 315-630 | 500-1000 |
| Pipe Length(m) | 3-8 | 3-8 | 4-8 | 4-8 | 6-8 |
| Hydraulic working pressure(mpa) | 5 | 6.3 | 6.3 | 8 | 8 |
| Compressed air pressure(mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Total power(kw) | 18 | 18 | 25 | 32 | 50 |
| Total weight (kg) | 2300 | 2500 | 3000 | 3500 | 8000 |
| Overall size(L*W*H)mm | 7000*1530*1963 | 7300*1730*1950 | 7900*2140*2125 | 8423*2970*2650 | 10000*4600*2570 |
| Production speed(s) | 45-500 | 50-600 | 60-900 | 150-1200 | 500-2500 |
Forming mode: With pressurized cylinder (or vacuum pump)and expandable belling moulds |
| Cooling mode: Water-cooled |
| R-type belling moulds: 3Cr13 for collapsible core,40Cr for die block,and other mater are 45#steel,electro- plating for surface treatment |
Ningbo Mengkwa Machinery Co., Ltd. is located in Ningbo city, Zhejiang Province in China. It is only 10km from Ningbo Airport, and it is around 300km far from Shanghai.
We have more than 16 years experience in producing and export plastic machinery. With advanced technology and exprience, we produce plastic extrusion line: Pipe extrusion line, profile extrusion line, sheet & board extrusion line, foam extrusion line, soft PVC extrusion line, plastic pelletizing and recycle line, rubber extruder and vulcanization production line, and etc.
We will always strive to keep forging ahead and making innovations. Meanwhile, we're willing to establish good relationships with both domestic and international customers to create new heights in the plastic machinery industry.
Our aim: Honesty, serious, excellence, devoting.
