UPVC CPVC Plastic Making Machine
| Price: |
US $ 43000set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
UPVC/CPVC Pipe Extruder Line/MachineApplication and feature:

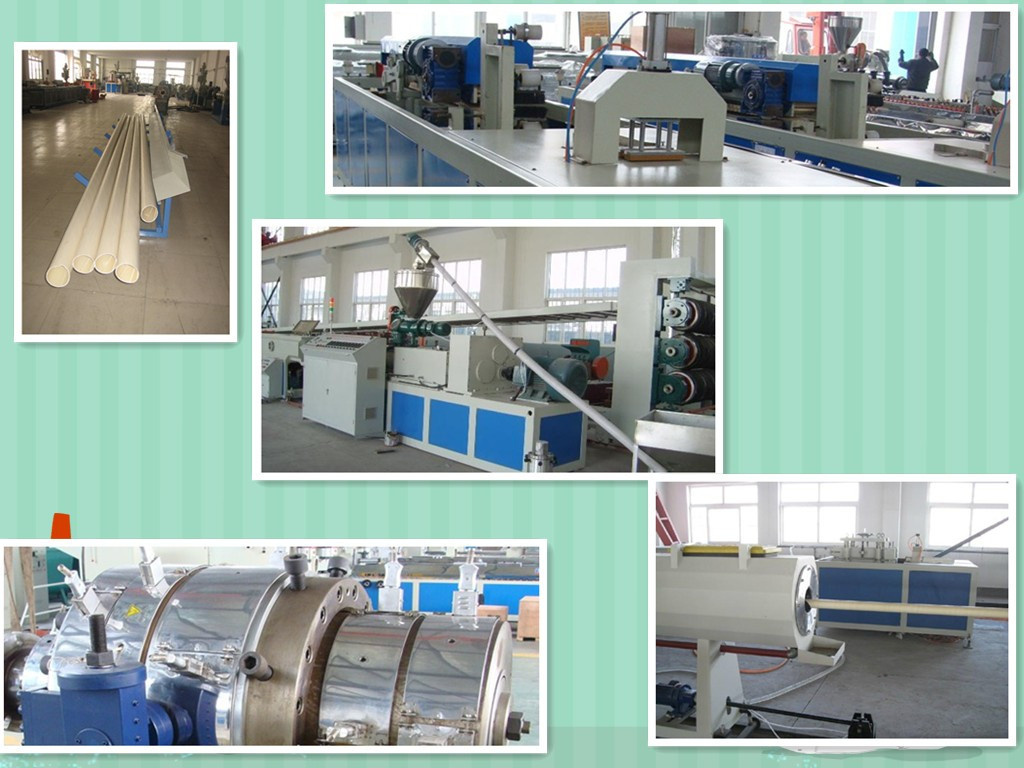

This series plastic pipe production line is mainly used in the area of agricultural, architectural irrigation and drainage system, cable pavement, etc. Total line consist of plstic extruder, mould, vacuum calibrating tank, haul-off unit, cutting unit, stacker, etc. According to different size of pipe, the haul-off unit can be two claws, three claws, four claws, six claws, eight claws, etc. The cutting machine can be saw cutting or planetary cutting.
| Type | Diameter(mm) | Extruder | Capacity (kg/h) | Power (kw) |
| GF63S(double pipe) | 20-50 | SJSZ65/132 | 180-250 | 105 |
| GF160 | 63-160 | SJSZ65/132 | 180-250 | 100 |
| GF250 | 90-250 | SJSZ65/132 | 180-250 | 170 |
| GF315 | 110-315 | SJSZ80/156 | 250-350 | 198 |
| GF450 | 200-450 | SJSZ92/188 | 650-750 | 290 |
| GF630 | 315-630 | SJSZ92/188 | 650-750 | 350 |
| Prod Model: |
GF63S(DOUBLE TYPE) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
UPVC CPVC Plastic Making Machine |
| Delivery Details: |
45-60days |
| Color: |
Customized |
| Size: |
Customized |
| Type: |
Pipe Extruder |
| Plastic Processed: |
PVC |
| Screw: |
Single-Screw |
| Automation: |
Automatic |
| Computerized: |
Computerized |
Ningbo Mengkwa Machinery Co., Ltd. is located in Ningbo city, Zhejiang Province in China. It is only 10km from Ningbo Airport, and it is around 300km far from Shanghai.
We have more than 16 years experience in producing and export plastic machinery. With advanced technology and exprience, we produce plastic extrusion line: Pipe extrusion line, profile extrusion line, sheet & board extrusion line, foam extrusion line, soft PVC extrusion line, plastic pelletizing and recycle line, rubber extruder and vulcanization production line, and etc.
We will always strive to keep forging ahead and making innovations. Meanwhile, we're willing to establish good relationships with both domestic and international customers to create new heights in the plastic machinery industry.
Our aim: Honesty, serious, excellence, devoting.
