| Price: | US $ 29000set |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1set |
| Pay Type: | L/C,T/T |
Specification | DHD-1LII | |
Material | PE,PP | |
Max.container capacity | L | 1 |
Number of die | set | 1,2,3,4 |
Machine Dimension | m | 2.56×1.8×2.24 |
Total weight | ton | 2.5 |
Accumulator head | DHD-1LII | |
Number of die heating | zone | 2 |
Power of die heating | KW | 1.3-2.6 |
Max die-pin diameter | mm | 70 |
Center distance of twin-die | mm | 100 |
Center distance of tri-die | mm | 70 |
Center distance of four-die | mm | 50 |
Clamping Unit | DHD-1LII | |
Clamping force | KN | 30 |
platen opening stroke | mm | 110-260 |
platen size | mm | 260×210 |
Max mould size | mm | 280×210 |
Mould thickness | mm | 110-150 |
Extruder Unit | DHD-1LII | |
Screw diameter | mm | 45 |
Screw L/D ratio | L/D | 24:1 |
Extruding Volume | Kg/hr | 25 |
Number of heating zone | zone | 4 |
Extruder heating power | KW | 4 |
Extruder driving power | KW | 7.5 |
Power | DHD-1LII | |
Oil pump drive power | KW | 5.5 |
Fan power for screw | KW | - |
Total power | KW | 18.6 |
Air pressure | Mpa | 0.6 |
Air consumption | m³/min | 0.4-0.6 |
Average energy consumption | KW | 10 |
Cooling Water Consumption | m³/m | 0.8 |
| Prod Model: | DHD-1L |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

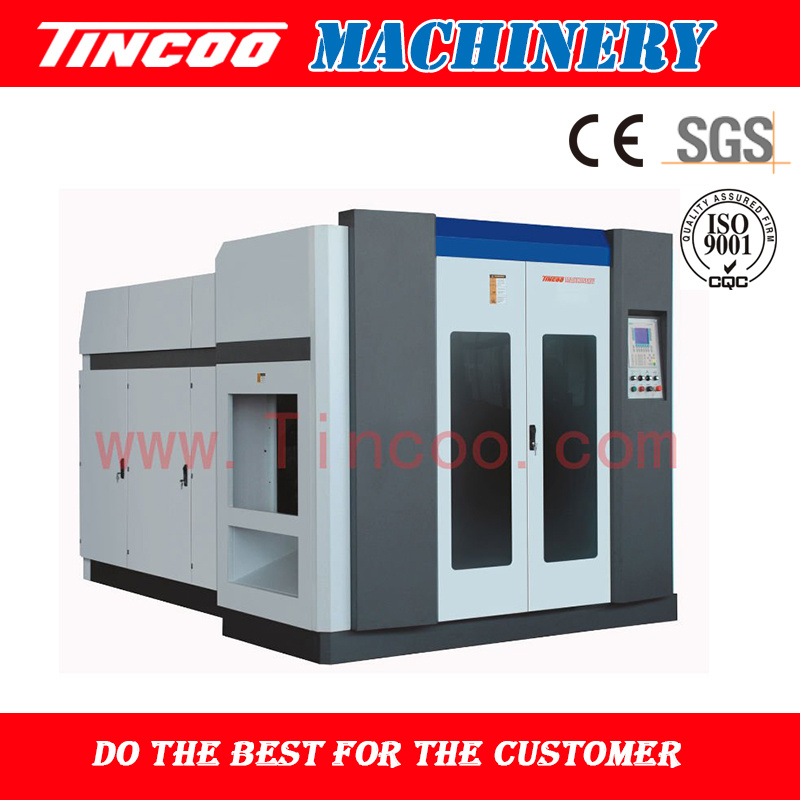

| Type: | Extrusion Blow Molding Machine |
| Raw Material: | HDPE |
| Making Method Of Parison: | Extrusion-Blow Molding |
| Automation: | Automatic |
| Computerized: | Computerized |
| Certification: | ISO9001:2008 |
