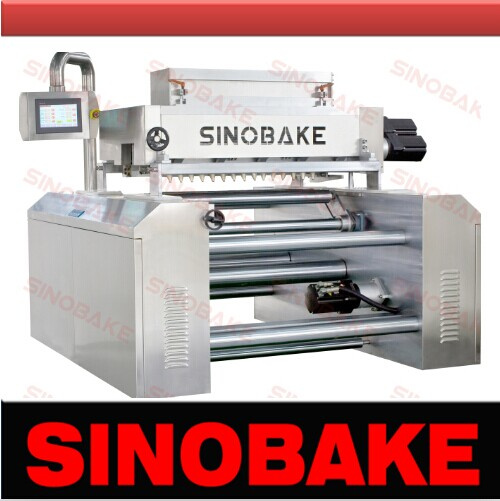

COMBO (WIRE-CUT &DEPOSITOR ) COOKIE MACHINE
BRIEF:
This new developed machine has combine both wire-cut cookie and depositor cookie machine function. Only need to change mould can achieve making two types of cookies. Thus multi-types cookies can be made by one machine.
FEATURE:
PLC system to control production, easy to operate.
It is capable to make both wire-cut and depositor cookies, only need to change mould and dismantle mechanical cutting arm.
Depositor mould is driven by a servo motor separately. Synchro-belt for conveying. Makes cookie forming precisely.
Depositor mould is assembled with compression. Easy to replace.
Wire-cut mould and depositor mould are fastened by clamp. Only need to rotate handwheel can achieve easy replacement.
Hopper is made of aluminium alloy. Easy to dismantle, clean and tidy.
Grooved roller for dough feeding. Gear pump to crush dough. Each of them is driven by a single servo motor.
Removable cover, pneumatic support, protective switch.
A servo motor to drive cam gear to achieve cutting arm up&down and back&forth movement. Precise controlling.
Left & right movement is driven by a servo motor through ball screw.
Working height of steel band is adjusted by handwheel. So that it will be easy to adjust gap between mould and steel band.
No dusty-corner design, easy to clean.
Emergency stop button and some other safety devices.
PARAMETERS
Dough feeding grooved roller, Ø 129, made of food hygiene level aluminium alloy.
Side board is made of Q235 carbon steel. After processing, thickness is 28 mm, surface hardness is HRC58-62.
Side board of hopper is made of food hygiene level aluminium alloy.
Depositor mould is made of stainless steel. Wire-cut mould is made of food hygiene level hard nylon/aluminium alloy.
Cover is made of SUS304 stainless steel. And it is polished.
Servo motor is Schneider brand from France.
The other electrics components are also Schneider brand.
NSK bearing from Japan.
Materials: 304 Stainless steel
Automatic: PLC controlled
Air cylinder: FESTO
Bearing: NSK brand
Gearbox: SEW brand
Quality certificate: ISO, CE certificate
