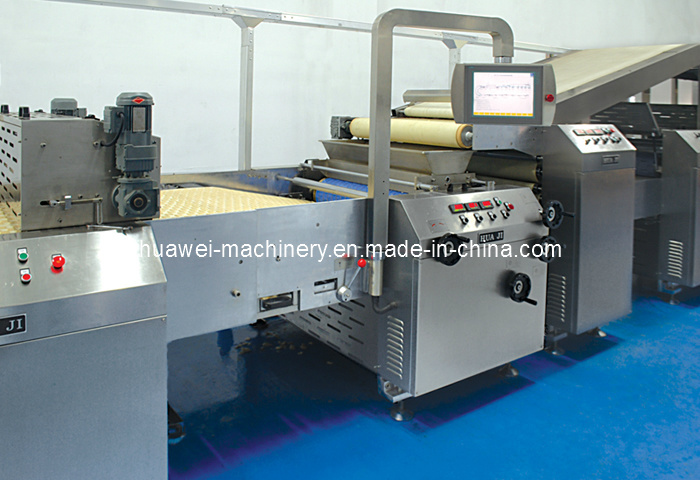

Horizontal Rotary Moulder - Biscuit Machine
| Price: |
US $ 1/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Horizontal Rotary Moulder - Biscuit MachineFeatures: Rotary Moulder is used for forming soft biscuit, which contains much oil and fat. The dough would be formed as the shape of biscuit and drop on the conveyor belt to the next machine.
Parameters for WG1200 Horizontal Rotary Moulder:- Diameter of mould:Ø248,length:1240mm,45# quality carbon steel or copper.
- Diameter of rubber roll:Ø255,oil-proof and food grade rubber,
- thickness: 20mm, hardness: A60
- Working width:1200mm,dimensions:1700*2130*1325,weight:3T,power:8.5Kw
- Q235 carbon steel sideboard, thickness of 28mm,
- chromed surface with hardness of HRC58-62
- Q235 carbon steel conveyor frame plate, thickness of 15mm,
- chromed surface with hardness of HRC58-62
- SUS 304 supporting board.
- Separated control of motors for rolls and conveyor.
- Electric control for pressure of mould and rubber roll,manual adjusting scrape knife
- Diameter of driving roll:Ø215, covered with oil-proof and food grade rubber.
- Endless cotton conveyor belt.
- Pneumatic tensioning and deviation adjusting by YSC cylinder
- 1.5mm SUS304 cover
- Chromed supporting roll and transition knife
- Chain driving, pitch of 25.4mm
- SEW motor and speed reducer, frequency control of speed.
- Digital display of speed and space.
- No corners for cleaning, safe and healthy.
- Emergency switch installed
| Prod Model: |
WG600, 1000, 1200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Materials: |
304 Stainless Steel Biscuit Machine |
| Control Method: |
PLC Controlled |
| Air Cylinder: |
Ysc Brand |
| Bearing: |
NSK Brand |
| Gearbox: |
Sew Brand |
| Transducer: |
Schneider Brand |
| Motor: |
Schneider Brand |
| Quality Certificate: |
ISO, CE Certificate |
| Merit: |
Save Power |
| Advantage: |
Eco-Friendly |
Foshan Shunde Huaji Industrial Co., Ltd. is a professional manufacturer of biscuits and cookies production line. We have been exporting our machines around the world to more than 100 countries. We operate the production in strict standards to provide reliable and safety products for customers all around the world.
The company operates with a faith in the development of new technological production, as we base our strategy on the demands of the market.
Our motto is ' To serve the customer right by providing a quality product and first class service'.
We have employed professional technicians, employees who can provide an excellent service, and the right quality control equipment and personnel to do this job. The result of this being that we have passed the ISO9001: 2000 management system.
Our professionally produced range of biscuit production lines covers models: HW-600, HW-800, HW-1000, and HW-1200. Our production lines are famous for their polished quality, reasonable configuration, multi-functionality, safety, adaptability and nice appearance. We sell abroad to regions such as the Middle-East and Southeast Asia, as well as having a comprehensive sales and distribution network domestically.
We invite you to discuss future opportunities with us, and to also take the opportunity yourself of putting to use our quality equipment.
