Automatic Jerry Cans Making Machine/ Jerry Can Blow Moulding Machines
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |

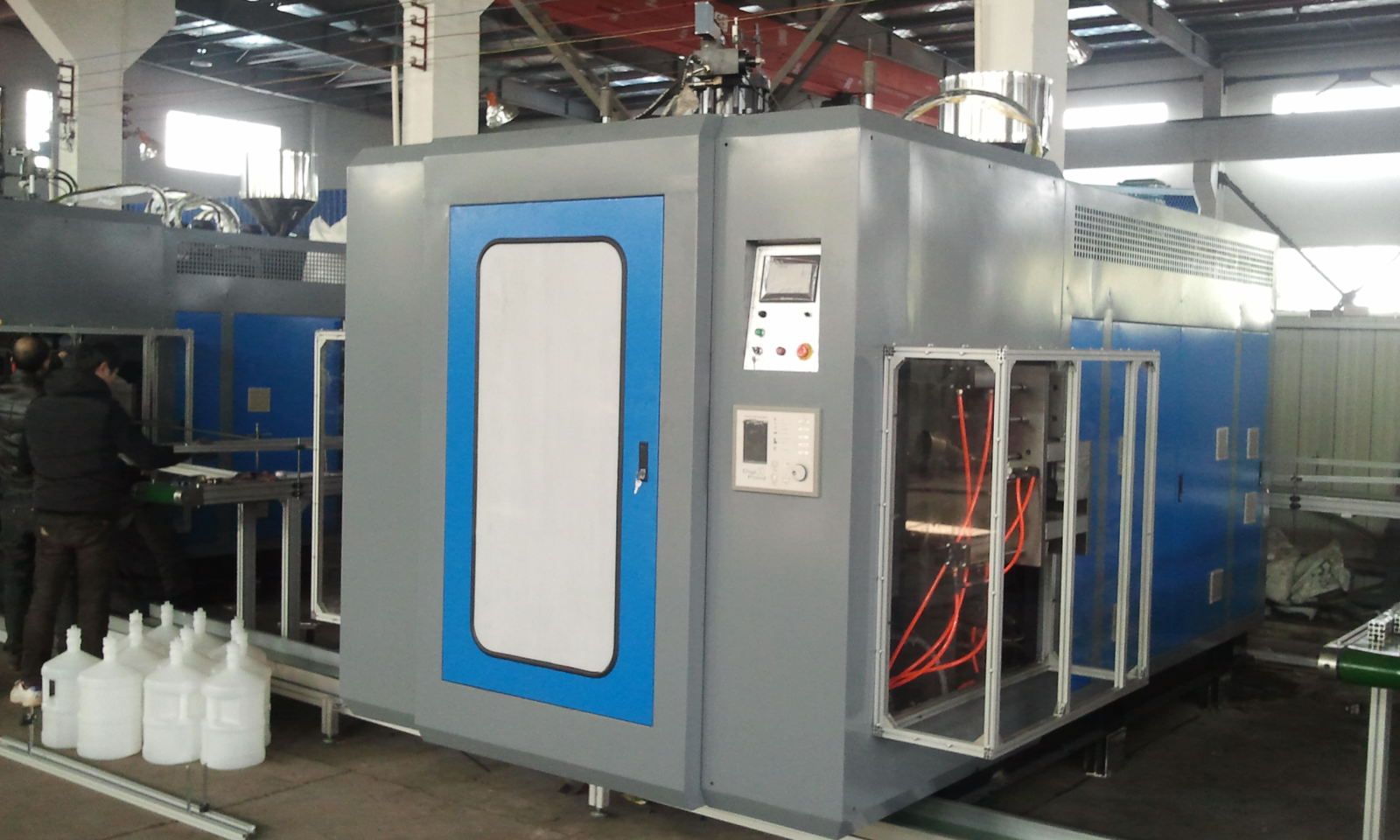

Automatic extrusion blow moulding machine:
ABLD80 full automatic blow molding machine is suitable for various kinds of plastic bottles in all shapes from 13L to 50L. It is widely used to produce tool boxes and big volume bucket, plastic board and related containers. Equipment with sevo parion control system can control the thickness of the product precision to 1/1000mm. It can also meet the requirement of different thickness of plastic.
Easy to operate, saved labor cost, saved enery, high efficiency to promote your productivity
You can regain the machine cost with 1-2 years.
The machine looks neat and nice
Perfect function with economic investment.
Max. Product volume |
50 liters |
Dry cycle |
450pc/h |
Screw diameter |
90mm |
Screw L/D ratio |
25 L/D |
Screw drive power |
37 KW |
Screw heating capacity |
18 KW |
No. of heating zone |
4 zones |
Output of HDPE |
130 KG/H |
Oil pump drive power |
30 KW |
Clamping force |
260 KN |
Max. size of mold |
450-1000mm |
Mold stroke |
700X950mm |
Max. die diameter |
340mm |
Die heating power |
7.6 KW |
Die heating segments |
4 zones |
Blowing pressure |
0.8mpa |
Air volume |
1.0 M³ /MIN |
Cooling water pressure |
0.3mpa |
Water consumption |
90 L/MIN |
Prod Model: |
ABLD80 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Automation: |
Automatic |
Making Method Of Parison: |
Extrusion-Blow Molding |
Raw Material: |
PE |
Computerized: |
Computerized |
Certification: |
CE |
We Apollo Machinery, located in the high-speed developing port city-Zhangjiagang, which is nearby to the international big city-Shanghai, specializes in making various kinds of blowing molding machine for the solution for plastic industry. We have specialized in this field for over 10 years. Our company with over 100 staff was established in 1997, occupy 8000 square meters.
Through over 10 years of hard struggle, our company has developed from a small company to Medium and Large size company. We always place our customer's profit on the first place through high quality, responsible price and considerate after-sale sevices.
We can provide blow molding machines for various kinds of plastic products, including cosmetic packaging, medical packing, washing packing, foodstuff packing, lubricate packing, plastic toys, hollow tube, tool boxes, chemical barrel and more. Our machinery are suitable for plastic containers from 5ML to 200L. Our machinery are also suitable for various kinds of plastic processing such as: PP, PE, PVC, PA, ABS, PPE, POM, PPO, HDPE, PVDC, EVOH, PETG and so on. So we are confident that we can meet your various kinds of demands for plastic blow molding machines.
Our products have a great reputation in the blow molding machinery and our products are always warmly welcomed by our new and old customers. Not only our sales in our domestic land, our products are also exported to overseas, such as America area: Canada, Mexico, Argentina, Colombia, Europe area: UK, France, Germany. Russia, Middle East area: Saudi Arabia, Oman, Iran, Turkey and the other countries of Asia: Japan, Philippines, Myanmar, India and more.
