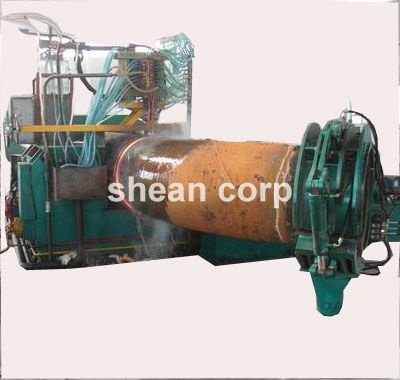

Bender Machine for Carbon Steel Pipe
Shean is one of the most professional manufacturer of Bender Machine for Carbon Steel Pipe in China.
1. Raw materials of the Bender Machine for Carbon Steel Pipe are as follows: Seamless steel pipe, welded steel pipe, or rolled steel pipe.
2. The required bend radius and bend angle, it can be adjusted according to user needs.
3. Specifications
A. Production range: OD21mm-1420mm
B. Radius: 2.5D-10D
C. Thickness: 10mm-80mm
D. Material: Carbon steel, Alloy steel, Stainless steel
E. Drive type: Hydraulic, chain
Structure and working principle of Bender Machine for Carbon Steel Pipe. The Bender Machine for Carbon Steel Pipe is composed of electric oil pump, high pressure oil pipe, quick joint, working cylinder, plunger pump, bending part. The high pressure oil out put from the electric oil pump, through the high pressure oil pipe into working cylinder, high pressure oil push the plunger pump in the cylinder, forming the pushing force, then through the bending part to bend the pipe.
Welcome to our factory visit. Shean also supply all kinds of machine according to customer requirements. We supply Pipe expanding Machine, elbow forming machine, press machine, bevel machine.
Serial number |
Max diameter |
Max thickness |
Stroke of cylinder |
Quantity of cylinder |
Max thrust |
(mm) |
(mm) |
(mm) |
(piece) |
(t) |
|
|
|
|
|
1 |
1420 |
20 |
6500 |
4 |
670 |
2 |
1220 |
20 |
6500 |
4 |
600 |
3 |
1020 |
20 |
6500 |
4 |
500 |
4 |
820 |
20 |
6500 |
4 |
400 |
5 |
720 |
20 |
6500 |
4 |
320 |
6 |
630 |
20 |
6500 |
2 |
300 |
7 |
530 |
14 |
6500 |
2 |
160 |
8 |
426 |
14 |
6500 |
2 |
130 |
9 |
325 |
14 |
6500 |
2 |
84 |
10 |
219 |
12 |
6500 |
2 |
65 |
Shean (Cangzhou) Corp Ltd registed in 2011, production line started in 1994. Has technician 10 persons, workers 50 persons, sale clerk 12 persons. For years, Shean helps heavy industrial enterprises gain huge profit domestic and abroad. Shean started foreign business since 2008 as while as good domestic sales. In 2014, Shean will creat another workshop as showroom of various machines running and head office will move to Cangzhou City with 900 square meters.
Our main scope for making and sells are: Induction pipe bending machine, Elbow forming machine, Tee machine, Hydraulic press, Pipe fittings, elbows, tee. "good products and complete after sale service " is our core principle.
Product covers all over the world, like USA, England, Russia, Turkey, India, Poland etc.
Welcome you visit Shean (Cangzhou) Corp Ltd.
