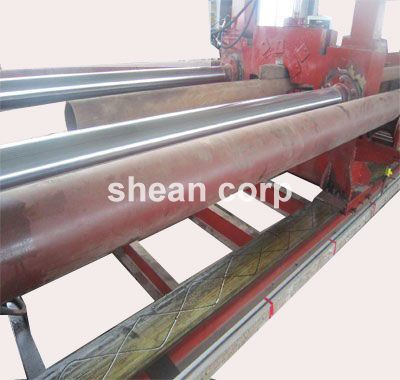

Induction Pipe Heat Bending Machine
Shena engage ourselves in manufacturing high performance Induction Pipe Heat Bending Machine in China that is widely used in the engineering industry.
Technical parameters of the Induction Pipe Heat Bending Machine in China:
Model of pipe bending machine HYG Series
Max. Bending Pipe Capacity: OD 426*60mm
Bending Radius Region: 2.5D--10D
Bending Angle Region: 0-180°
Model of induction heating power supply 160KW-300KW
The Induction Pipe Heat Bending Machine in China consists of the following components: Hydraulic pipe pushing machine, bending radius of the angle adjustment device, hydraulic pump, the total console, motor control cabinets, medium frequency power, capacitor cabinets, water cable, electric choke. Customers should order induction coils and steel chuck according to the products you want to make.
|
Serial number |
Max diameter |
Max thickness |
Stroke of cylinder |
Quantity of cylinder |
Max thrust |
|
(mm) |
(mm) |
(mm) |
(piece) |
(t) |
|
|
|
|
|
|
|
1 |
1420 |
20 |
6500 |
4 |
670 |
|
2 |
1220 |
20 |
6500 |
4 |
600 |
|
3 |
1020 |
20 |
6500 |
4 |
500 |
|
4 |
820 |
20 |
6500 |
4 |
400 |
|
5 |
720 |
20 |
6500 |
4 |
320 |
|
6 |
630 |
20 |
6500 |
2 |
300 |
|
7 |
530 |
14 |
6500 |
2 |
160 |
|
8 |
426 |
14 |
6500 |
2 |
130 |
|
9 |
325 |
14 |
6500 |
2 |
84 |
|
10 |
219 |
12 |
6500 |
2 |
65 |
Shean (Cangzhou) Corp Ltd registed in 2011, production line started in 1994. Has technician 10 persons, workers 50 persons, sale clerk 12 persons. For years, Shean helps heavy industrial enterprises gain huge profit domestic and abroad. Shean started foreign business since 2008 as while as good domestic sales. In 2014, Shean will creat another workshop as showroom of various machines running and head office will move to Cangzhou City with 900 square meters.
Our main scope for making and sells are: Induction pipe bending machine, Elbow forming machine, Tee machine, Hydraulic press, Pipe fittings, elbows, tee. "good products and complete after sale service " is our core principle.
Product covers all over the world, like USA, England, Russia, Turkey, India, Poland etc.
Welcome you visit Shean (Cangzhou) Corp Ltd.
