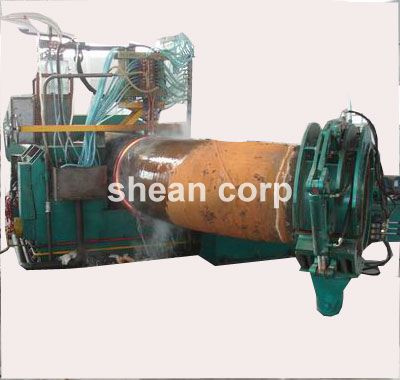

Metal Pipe Bending Machine
Metal Pipe Bending Machine adopt hydraulic system, induciton heater, of HYG type heating specified area of pipe, making it easy operation and prolong usage life, hydraulic system making it the advanced product in bending industry.
Features of Metal Pipe Bending Machine
A Hydraulic controlled pushing plate gate
B Hydraulic valves adopts International Standard products, solenoid valve adopt 24V direct current control
C Annealing treatment after welding of pushing plate, supporting plate etc, eliminating stress
D All cylinders are made by our factory, formed to standards.
E Pickling and passivate treatment after welding of pump station high pressure oil pump
The required bend radius and bend angle, it can be adjusted according to user needs.
Specifications for Metal Pipe Bending Machine:
A. Production range: OD21mm-1420mm
B. Radius: 2.5D-10D
C. Thickness: 10mm-80mm
D. Material: Carbon steel, Alloy steel, Stainless steel
E. Drive type: Hydraulic, chain
Shean is specilized manufacturer of induction heater based hydraulic elbow machine, Metal Pipe Bending Machine in the mother town of pipe fitting industry-Cangzhou, China.
|
Serial number |
Max diameter |
Max thickness |
Stroke of cylinder |
Quantity of cylinder |
Max thrust |
|
(mm) |
(mm) |
(mm) |
(piece) |
(t) |
|
|
|
|
|
|
|
1 |
1420 |
20 |
6500 |
4 |
670 |
|
2 |
1220 |
20 |
6500 |
4 |
600 |
|
3 |
1020 |
20 |
6500 |
4 |
500 |
|
4 |
820 |
20 |
6500 |
4 |
400 |
|
5 |
720 |
20 |
6500 |
4 |
320 |
|
6 |
630 |
20 |
6500 |
2 |
300 |
|
7 |
530 |
14 |
6500 |
2 |
160 |
|
8 |
426 |
14 |
6500 |
2 |
130 |
|
9 |
325 |
14 |
6500 |
2 |
84 |
|
10 |
219 |
12 |
6500 |
2 |
65 |
Shean (Cangzhou) Corp Ltd registed in 2011, production line started in 1994. Has technician 10 persons, workers 50 persons, sale clerk 12 persons. For years, Shean helps heavy industrial enterprises gain huge profit domestic and abroad. Shean started foreign business since 2008 as while as good domestic sales. In 2014, Shean will creat another workshop as showroom of various machines running and head office will move to Cangzhou City with 900 square meters.
Our main scope for making and sells are: Induction pipe bending machine, Elbow forming machine, Tee machine, Hydraulic press, Pipe fittings, elbows, tee. "good products and complete after sale service " is our core principle.
Product covers all over the world, like USA, England, Russia, Turkey, India, Poland etc.
Welcome you visit Shean (Cangzhou) Corp Ltd.
