DISCRIPTIONS about cnc press brake, hydraulic press brake, Plate Press Brake Machine

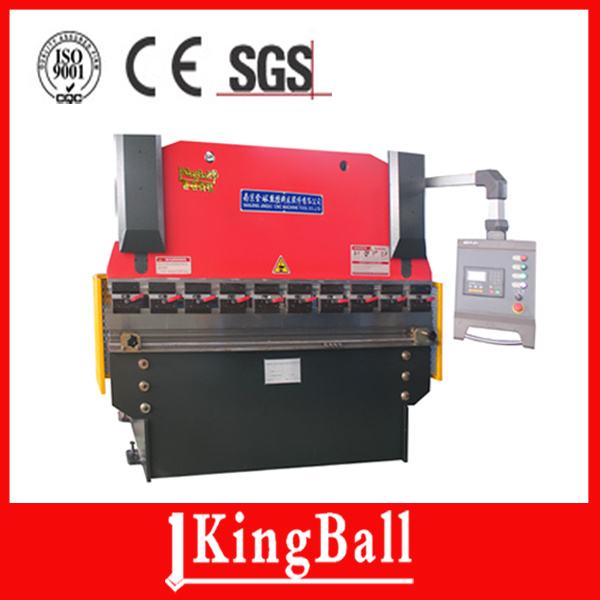

Hydraulic CNC plate Press brake
1. Mechanical stop and torsion bar to maintain synchronization and high precision.
2. The machine uses Delem CNC system, and imported linear transducer, pressure proportional valve and servo motor.
3. Ram stroke(Y) and backgauge(X) are automatically controlled by computer.
4. Backgauge adopts ball-bearing screw and rolling guide, enjoying very high repeat positioning accuracy
Hydraulic system about cnc press brake, hydraulic press brake, Plate Press Brake Machine
1. The hydraulic system can fastly fall down, slowly fall down, control the press according the working rate, fastly get up and down, and abruptly stop.
2. With REXEOH hydraulic system can reach synchronization.
3. The longitudinal plunger pump can endure the high pressure, and it is noiseless, made in shanghai.
4. The airproof is made by Japanese NOK, good performance, long-lived.
5. The machine can unremitting work, and the hydraulic is steady.
Mould Fast Clamp of the cnc press brake, hydraulic press brake, Plate Press Brake Machine
Backgage finger is installed on the linear guide
Ball Screw and Linear Guide
Electric control system about cnc press brake, hydraulic press brake, Plate Press Brake Machine
1. The electrical component and material meet the international standard, safe and long-lived.
2. The moving foot operated on-off can cut power urgently.
3. The other control components are all big brand.
4. The machine is with AC380V, and the control loop is with AC220V.
5. The electrical's main circuit can avoid short circuit and over loading.
6. The operated buttons are on the machine's button table. The electrical switch, indicator lights are in the electrical case.
7. The stop button of pump is the main button. It is off then the whole machine is stop.
8. The machine fits the inching control and crash stop button.
Press brake controller: DA41
DA-41 features
Bright LCD display
Beam stop control
Backgauge control
Angle programming
Tool programming
Retract function
Up to 100 programs
Up to 25 bends per program
Press brake controller: E200
E200 features
LCD display, 240X128;
A multi-step programing to run automatically, positioning in a row;
Automatic way to avoid the backgauge with the expected workpieces interference;
One-way location, the elimination of screw drive space;
Duke / British system is available;
Chinese and English menu operation;
Automatic compensation of the location;
Adequate storage space for the processing procedures;
Memory function of power off action.
Packing
We also have the cutting machines, rolling machines and other machines.
If you want to know more about our products, please contact us. Thanks.
Customer manager: Holly
M. P: 0086-18344661743
Tel: 0086-52491558
Nanjing Jinqiu CNC Machine Tool Co., Ltd
| NO. | ITEMS | PARAMETER | UNIT |
| 1. | Model Number | WC67K-250/3200 | 1set |
| 2. | Pressure | 2500 | kN |
| 3. | Worktable length | 3200 | mm |
| 4. | Distance between columns | 2600 | mm |
| 5. | Depth of throat | 400 | mm |
| 6. | Stroke | 250 | mm |
| 7. | Max height between worktable and ram | 500 | mm |
| 8. | Main motor | 18.5 | kW |
| 9. | Weight | 13700 | kg |
| 10. | Dimension (LxWxH) | 3750x2000x3200 | mm |
