DISCRIPTIONS about cnc press brake ,hydraulic press brake, Plate Press Brake Machine

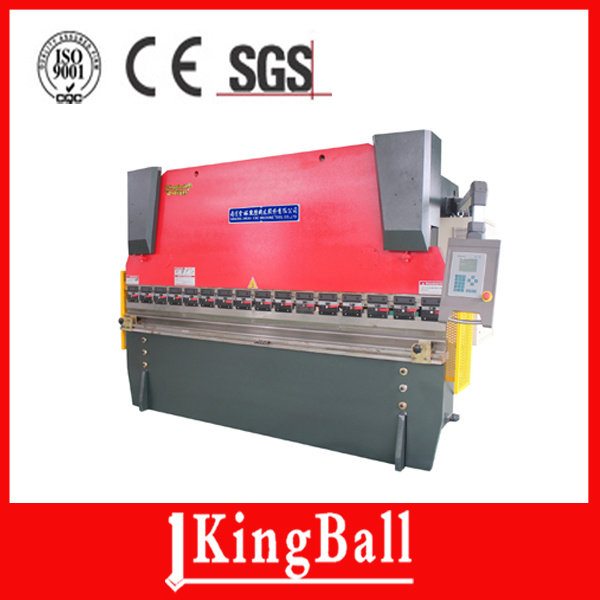

Hydraulic CNC plate Press brake
1. Mechanical stop and torsion bar to maintain synchronization and high precision.
2.The machine uses Delem CNC system, and imported linear transducer, pressure proportional valve and servo motor.
3.Ram stroke(Y) and backgauge(X) are automatically controlled by computer.
4.Backgauge adopts ball-bearing screw and rolling guide, enjoying very high repeat positioning accuracyhydraulic system about cnc press brake ,hydraulic press brake, Plate Press Brake Machine
1. The hydraulic system can fastly fall down, slowly fall down, control the press according the working rate, fastly get up and down, and abruptly stop.
2. With REXEOH hydraulic system can reach synchronization.
3. The longitudinal plunger pump can endure the high pressure, and it is noiseless, made in shanghai.
4. The airproof is made by Japanese NOK, good performance, long-lived.
5. The machine can unremitting work, and the hydraulic is steady.
Mould Fast Clamp of the cnc press brake ,hydraulic press brake, Plate Press Brake Machine

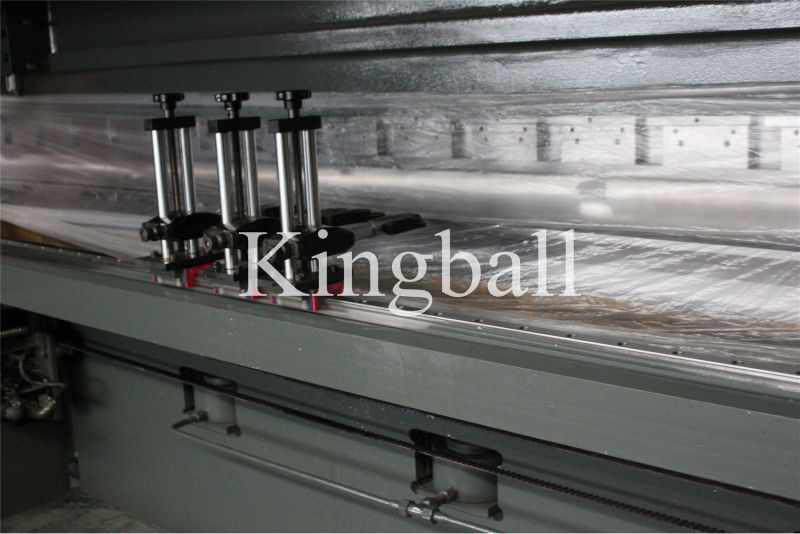

Backgage finger is installed on the linear guide

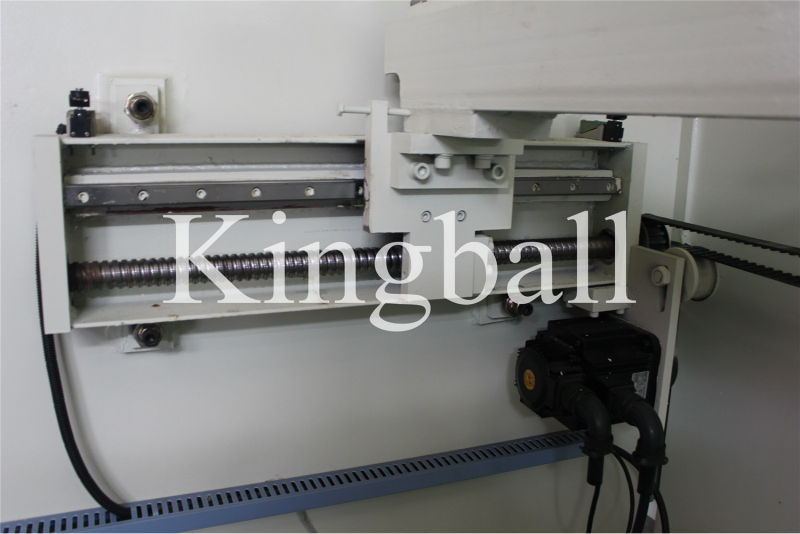

Ball Screw and Linear Guide
electric control system about cnc press brake ,hydraulic press brake, Plate Press Brake Machine
1. The electrical component and material meet the international standard, safe and long-lived.
2. The moving foot operated on-off can cut power urgently.
3. The other control components are all big brand.
4. The machine is with AC380V, and the control loop is with AC220V.
5. The electrical's main circuit can avoid short circuit and over loading.
6. The operated buttons are on the machine's button table. The electrical switch, indicator lights are in the electrical case.
7. The stop button of pump is the main button. it is off then the whole machine is stop.
8. The machine fits the inching control and crash stop button.
Press brake controller:DA41
DA-41 features
Bright LCD display
Beam stop control
Backgauge control
Angle programming
Tool programming
Retract function
Up to 100 programs
Up to 25 bends per program
Press brake controller:E200
E200 features
LCD display, 240X128;
A multi-step programing to run automatically, positioning in a row;
Automatic way to avoid the backgauge with the expected workpieces interference;
One-way location, the elimination of screw drive space;
Duke / British system is available;
Chinese and English menu operation;
Automatic compensation of the location;
Adequate storage space for the processing procedures;
Memory function of power off action.
PackingWe also have the cutting machines,rolling machines and other machines.
If you want to know more about our products,please contact us.Thanks. Contact Person:Penny
M.P:0086-15295775595
Tel:0086-52491558
|
PARAMETER
|
UNIT
|
1.
|
Model Number
|
WC67K-40/2200
|
1set
|
2.
|
Pressure
|
400
|
kN
|
3.
|
Worktable length
|
2200
|
mm
|
4.
|
Distance between columns
|
1850
|
mm
|
5.
|
Depth of throat
|
230
|
mm
|
6.
|
Stroke
|
100
|
mm
|
7.
|
Max height between worktable and ram
|
320
|
mm
|
8.
|
Main motor
|
5.5
|
kW
|
9.
|
Weight0
|
2750
|
kg
|
10.
|
Dimension (LxWxH)
|
2210x1200x1910
|
mm
|
Nanjing Jinqiu CNC Machine Tool Co., Ltd. is one of the leading manufacturers of metal sheet forming machines and equipment. Our main products are WC67Y and WC67K plate press brakes, WE67K electro-hydraulic synchronous press brakes, QC12Y and QC12K plate shearing machines, QC11K and LC CNC hydraulkic guilltione shearing machines, and W11 type three-rolls mechanical rolling machines.
Our products are widely used in light industry, aviation, ship, metallurgy, electronic equipment and stainless steel products. Our main markets are in Europe and North America countries, such as Germany, Italy, France, Spain, Belgium, Greece, the USA and Canada.
Our products have won national export certificate and ISO9001: 2000 quality system certificate issued by Chinese Quality Attestation Center. We are always developing new products and have achieved great success in forging and stamping industry. We will work harder to turn out more high technology products to satisfy customers' demands.
Focusing on the exportation business of our machines, we would like to supply our fast communication and service for your kind inquiries. Besides, we always welcome relative business partners and companies to be our distributors in your market to reach our mutual benefits.
