Bottle Filling Machine

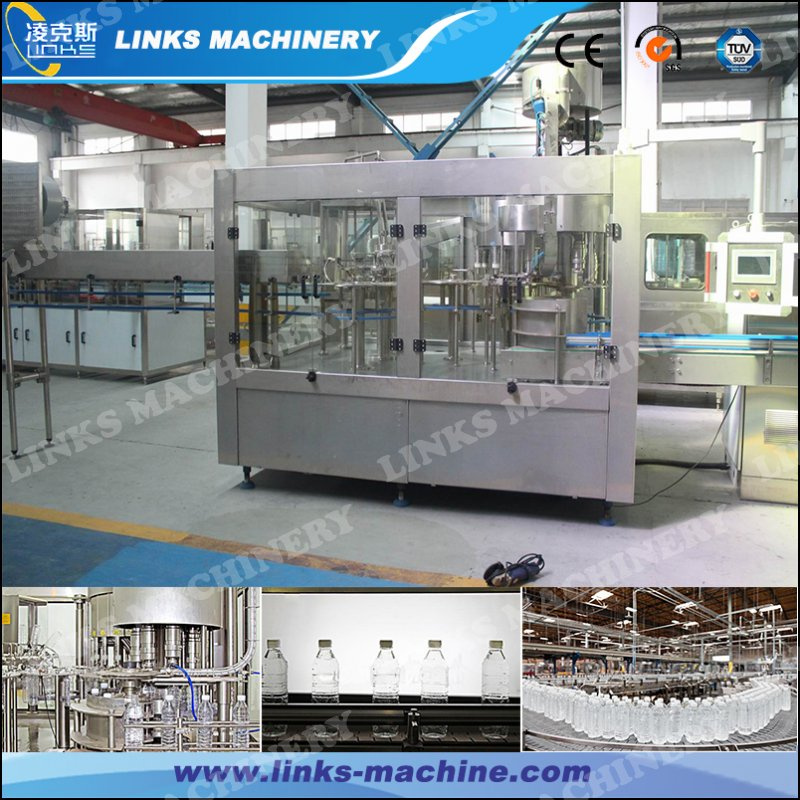

Complete Automatic Pure Water Bottling Filling Machine
XGF24-24-8 three-in-one machine for PET bottle integrates the function of rinsing, filling and capping together. Based on advanced technology overseas, and designed according to water filling processing demands

Main features
1.This machine has a compact structure, completed control system, easy to operate and highly automated.
2.By changing the star-wheel, screw bottle inlet and arc guide plate can realize to change the bottle shape.
3.The parts that direct contact with product are made of food grade stainless steel and no technology corner pockets and easy to clean.
4.By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
5.The machine adopts high effective cap sorting system and completely self control and protective device.
6.The machine is equipped with perfect overload protective device that can keep the equipment and operator safely.
7.The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
8.The electric components and pneumatic components are all introduced from world famous brand products.


Model	XGF24-24-8
Amount of working position	Rinsing 24, filling 24, capping 8
Production capacity	12000BPH(500ml)
Pressure of air source	0.7Mpa
Air consumption	0.9m3/min
Rinsing water pressure	0.2-0.25Mpa
Rinsing water capacity	1.8T/H
Main motor power	2.7kW
Total power	4.2kw
Dimension	3600*2200*2200MM  (L×W×H)
weight	4800kg

We also provide the Complete Automatic Pure Water Bottling Plant
It Includes 4 main parts:
1/ Plastic bottle blow molding machine
2/ Water cleaning system
3/ Water washing, filling, capping machine.
4/ Conveyor system, labeling machine, dating machine, film wrapping machine

The complete line main description:

1/ The plant can produce different volume bottles, from 200ml to 2000ml bottles, round and square bottles, plastic and glass bottles. It is very easy to change the different bottle molds.

2/ The plant is highly automatic, you can operate on the touch screen to adjust the machine speed and working.

3/ We have different speed plants, commonly, 2000BPH, 4000BPH, 7000BPH, 10,000BPH, 15000BPH..ect.

4/ The material is stainless steel 304, food grade much clean and safe.

5/ We provide the engineers for customer installation, training in customer's factory.

Models and Speed List

Model	XGF8-8-3	XGF14/12/5	XGF16/16/5	XGF24/24/8	XGF32/32/10
Washing hands	8	14	18	24	32
Filling valves	8	12	18	24	32
Capping hands	3	4	6	8	8
Suitable PET/Glass Bottles(150ml to 2000ml)
Capacity(Speed)  Base on 500ml	2000BPH	5000BPH	7000BPH	12000BPH	15000BPH


Electric Components Brands Supplier

Main composition	Description Supplier
PLC	Mitsubishi (Japan) , Siemens (Germany)
Touch screen	Weinview(Taiwan)
Frequency converter	Mitsubishi (Japan) , Siemens (Germany)
Air switch	Schneider (France)
Breaker	Siemens (Germany)
Contactor	Siemens (Germany)
Photoelectric switch	Omron (Japa)
