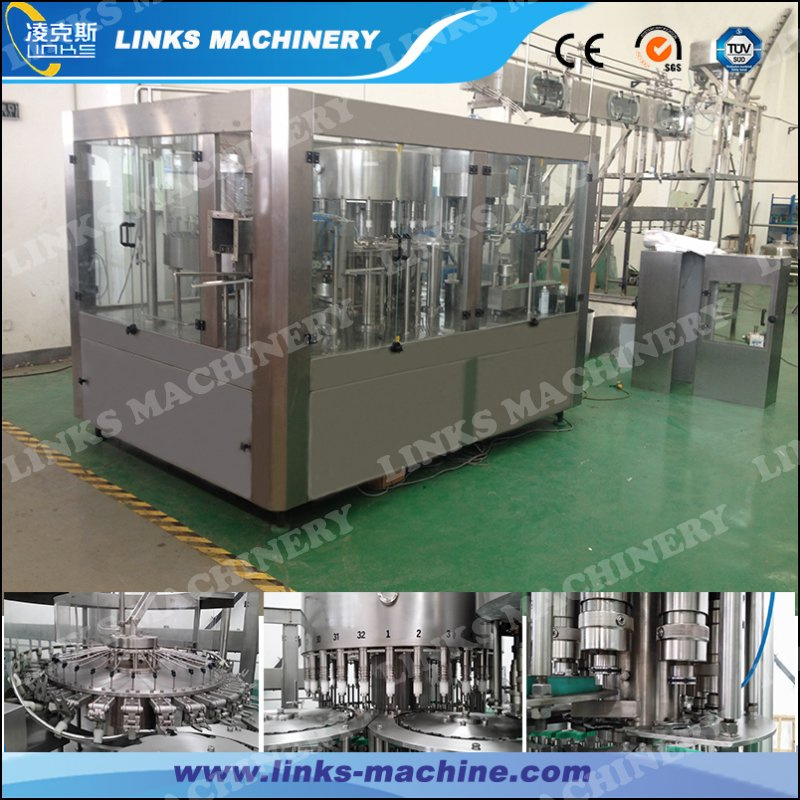

Complete Automatic Pure Water Bottling Filling Machine
XGF24-24-8 three-in-one machine for PET bottle integrates the function of rinsing, filling and capping together. Based on advanced technology overseas, and designed according to water filling processing demands
Main features
1.This machine has a compact structure, completed control system, easy to operate and highly automated.
2.By changing the star-wheel, screw bottle inlet and arc guide plate can realize to change the bottle shape.
3.The parts that direct contact with product are made of food grade stainless steel and no technology corner pockets and easy to clean.
4.By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
5.The machine adopts high effective cap sorting system and completely self control and protective device.
6.The machine is equipped with perfect overload protective device that can keep the equipment and operator safely.
7.The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
8.The electric components and pneumatic components are all introduced from world famous brand products.
Model | XGF24-24-8 |
Amount of working position | Rinsing 24, filling 24, capping 8 |
Production capacity | 12000BPH(500ml) |
Pressure of air source | 0.7Mpa |
Air consumption | 0.9m3/min |
Rinsing water pressure | 0.2-0.25Mpa |
Rinsing water capacity | 1.8T/H |
Main motor power | 2.7kW |
Total power | 4.2kw |
Dimension | 3600*2200*2200MM (L×W×H) |
weight | 4800kg |
We also provide the Complete Automatic Pure Water Bottling Plant
It Includes 4 main parts:
1/ Plastic bottle blow molding machine
2/ Water cleaning system
3/ Water washing, filling, capping machine.
4/ Conveyor system, labeling machine, dating machine, film wrapping machine
The complete line main description:
1/ The plant can produce different volume bottles, from 200ml to 2000ml bottles, round and square bottles, plastic and glass bottles. It is very easy to change the different bottle molds.
2/ The plant is highly automatic, you can operate on the touch screen to adjust the machine speed and working.
3/ We have different speed plants, commonly, 2000BPH, 4000BPH, 7000BPH, 10,000BPH, 15000BPH..ect.
4/ The material is stainless steel 304, food grade much clean and safe.
5/ We provide the engineers for customer installation, training in customer's factory.
Models and Speed List
Model | XGF8-8-3 | XGF14/12/5 | XGF16/16/5 | XGF24/24/8 | XGF32/32/10 |
Washing hands | 8 | 14 | 18 | 24 | 32 |
Filling valves | 8 | 12 | 18 | 24 | 32 |
Capping hands | 3 | 4 | 6 | 8 | 8 |
Suitable PET/Glass Bottles(150ml to 2000ml) |
Capacity(Speed) Base on 500ml | 2000BPH | 5000BPH | 7000BPH | 12000BPH | 15000BPH |
Electric Components Brands Supplier
Main composition | Description Supplier |
PLC | Mitsubishi (Japan) , Siemens (Germany) |
Touch screen | Weinview(Taiwan) |
Frequency converter | Mitsubishi (Japan) , Siemens (Germany) |
Air switch | Schneider (France) |
Breaker | Siemens (Germany) |
Contactor | Siemens (Germany) |
Photoelectric switch | Omron (Japa) |
Established in 2001, Zhangjiagang Links-Machine., Ltd. Is a specialized manufacturer of water purification treatment, water/beverage bottle blow molding machines, water/beverage filling machines, labeling machines, film wrapping machines. With the support of advanced technique from Germany and Italy, highly experienced engineers and customer-oriented after sales service,
Our main products including:
1.1200-30, 000 bph Mineral water/pure water production lines
2.1200-22, 000 bph Juice/fruit tea hot filling production lines
3.1200-18, 000 bph Carbonated/soda beverage production lines
4.100-1500 bph 5 gallon jar bottle drinking water production lines
5. Glass Bottle Vodka/Wine Filling Line
6. Complete sets of water treatment plants
7. PET bottle blowing machine
8. Bottle Preform/Caps Injection molding machine
Providing 'Quality Products, Excellent Service, Competitive Prices and Prompt Delivery', we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more information.
