Company Introduction:
Tincoo Machinery-Zhejiang East Zhouqiang Plastic&Mold Inductry Co.,Ltd is a professional supplier devoted to the designing & production of extrusion blow molding machine,pet stretch blow molding machine, pet injection blow molding machine, injection molding machine, capmaking machine and molds.With capital of 88 million RMB, covering a total area of 50,000 M2. Wehave been exported to more than 150 countries in Asia, Mid-East, Europe, Africa, Australia, and Latin-America. The marketing network has covered all over the world. Fully-auto extrusion blow molding machines with 2 to 7 layers and max.10 die heads for 1ml to 3000L. PET injection blow molding machines with capacity up to 30,000 pcs/hr. We can offer various levels' production projects to meet our customer's needs. The advanced equipment, high manufacturing technology and perfect quality inspection system assures strong protection for the precision of products. Complete sales and service line covers pre-sales, sales and after-sales. Our whole team insist always the idea of "customer first", and tryour best to offer the most considerate service to our customer. Friends from various fields are warmly welcome to visit us.

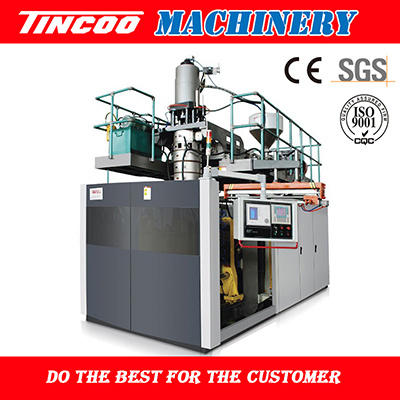

Machine Specification:Features:
1.This series adopts new patent of two pull-rod type closing-mold device;
double-folding accumulator head;extrusion device and product taking-out device,
and entirely achieves full automatic production.
2.The electrical control system adopts Complete computer control to automatically conduct to automically conduct technical parameter optimization and trouble diagnosis
with high control precision and good reliability.
3.This series,completely designed and manufactured according to German standards of same
model is the model with ration of performance to price at present.
Advanced processing equipment:
Introducing advanced technology form Germany,Italy,Japan etc.
Involving advanced design and production of super large-scale blow-molding machine and engineering management capability.
Holding over 40 items Patent Technologies.
After sales service:
With good brand reputation and attitude of customer-centric, we invite special technologists responsible for after sales.
Service hotline is 24-hour on call.
Fast response: domestic call is handled within 12 hours.
International call is handled within 20 hours.| Specification |
| DHB110 |
| Material |
| PE,PP |
| Max.container capacity | L | 160 |
| Number of die | set | 1 |
| Output (dry cycle) | pcs/hr | 300 |
| Machine Dimension | m | 6.0×2.9×4.8 |
| Total weight | ton | 20 |
| Accumulator head |
| DHB110 |
| Accumulator capacity | L | 16 |
| Power of die heating | KW | 30 |
| Number of heating zone | zone | 5 |
| Die diameter | mm | 510 |
| Injection pressure | Mpa | 8 |
| Max.injection speed | Kg/sec | 1.5 |
| Clamping Unit |
| DHB110 |
| Clamping force | KN | 720 |
| platen opening stroke | mm | 500-1500 |
| platen size | mm | 1300×1300 |
| Max mould size | mm | 900×1400 |
| Mould thickness | mm | 510-700 |
| Extruder Unit |
| DHB110 |
| Screw diameter | mm | 110 |
| Screw L/D ratio | L/D | 25:1 |
| Extruding Volume | Kg/hr | 200-280 |
| Screw rotation rate | r/min | 10-86 |
| Extruder heating power | KW | 28 |
| Extruder driving power | KW | 55-75 |
| Power Consumption |
| DHB110 |
| Oil pump power | KW | 37 |
| Servo motor power | KW | 4 |
| General assembly power | KW | 154,174 |
| Average energy consumption | KW | 65,75 |
| Air pressure | Mpa | 0.7 |
| Air consumption | m³/min | 1.0 |
| Cooling water consumption | m³/min | 0.6 |
Established in 1989, Zhejiang East Zhouqiang Plastic & Mould Industry Co., Ltd. is located in Huangyan--"Blow Molding Machine Town" in China, with total investment of 11 million US dollars and covers 50 thousand square meters. It is an enterprise professionally manufactures PE Blow Molding Machines, PE Extrusion Blow Moulding Machines, PET Stretch Blowing Machine and Extrusion Blowing Moulds.
Blow moulding machinery: Adopting foreign advanced technology and management system, and taking advantage of our solid technical power, we have been developing different kinds of plastic forming process and machinery. In accordance with plastic features, we developed series of blow molding machinery to meet customers's demand, such as fully-automatic PE blow molding machines, two-stage fully-auto pet stretch blow moulding machines, PE blow moulding machines, injection and stretch blow molding machines.
Focused on customers, cored on quality, the corporation and customers are viewed as a united whole. Customers" requirements are all we should do.
