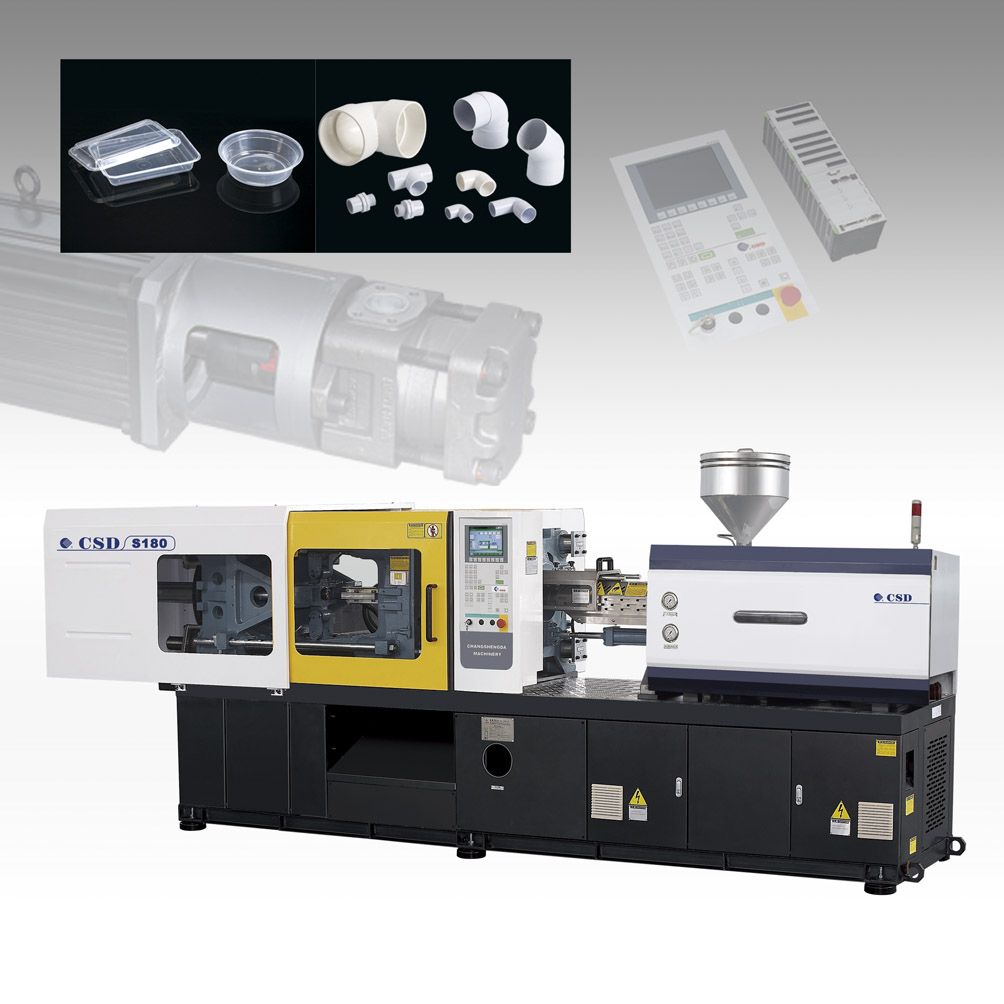

CE Approved with Servo Injection Molding Machine (CSD-S180 (100-500))

Name: CE Approved with Servo Injection Molding Machine (CSD-S180 (100-500))
Brand: themouldinfo.com
SKU: 637752215
Availability: InStock
Rating: 4.5 (136 reviews)

Price:	US $ 15000-45000/Piece
Trade Terms:	FOB,CFR
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Changshengda Machinery (Zhejiang) Co., Ltd.

Showroom Product Company Profile

Servo series Low consumption and environment-friendly:

1). Economizing on electricity: Electric motor energy is carried out according to need. For high-precision products with long holding time and thick wall thickness, energy electricity can be economized 25%-80%.

2). Precision: Products re-precision is once higher than usual injection molding machine.

3). Control: Double closed circular control makes the pressure and speed equaler.

4). Economizing on water: The cooling water can be economized greatly when the surrounding temperature is below 30 degrees.

5). Low noise: The noise is very low during the non-high-pressure situation.

CSD-W-S (-S;-W-D(280-1680)SPECIFICATIONS OF CONVENTIONAL INJECTION MOLDING MACHINE

			CSD-100			CSD-130			CSD-180			CSD-240			CSD-280			CSD-350			CSD-420				CSD-500				CSD-680				CSD-780				CSD-1000				CSD-1250				CSD-1680W
			A	B	C	A	B	C	A	B	C	A	B	C	A	B	C	A	B	C	A	B	C	D	A	B	C	D	A	B	C	D	A	B	C	D	A	B	C	D	A	B	C	D	A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	35	37	40	37	40	45	40	46	52	45	51	57	50	56	62	60	65	70	65	70	75	80	70	75	80	90	80	90	100	110	90	100	110	120	100	110	120	130	110	120	130	140	130	140	150
	SCREW L/D RATIO	L/D	20.8	19.7	18.2	22.2	20	18.2	22.3	20	18.1	22.4	20	18.2	22	20	18.2	22	20	18.2	22.2	20.7	19.6	17.5	22.6	21.4	20	18	24.6	22.1	20	17.8	24.4	22	20	18.3	24.3	22.1	20	18.7	26.2	24	22.2	20.6	24	22.3	20.8
	SHOT VOLUME(THEORETICAL)	cm 3	150	168	196	206	241	305	283	347	478	397	510	638	528	662	812	882	1035	1200	1194	1384	1590	1808	1477	1696	1929	2442	2036	2576	3180	3450	2830	3495	4228	5032	3819	4620	5500	6455	5545	6600	7745	8980	8270	9590	11000
	SHOT WEIGHT	g	137	153	178	188	219	277	258	340	435	361	465	580	480	602	738	802	942	1092	1086	1260	1446	1645	1344	1543	1755	2222	1853	2345	2896	3503	2576	3180	3848	4579	3496	4205	5005	5875	5045	6005	7745	8170	8105	9398	10780
		oz	4.8	5.4	6.3	6.6	7.8	9.8	9.1	12	15.3	12.7	16.4	20.1	16.9	21.2	26	28.3	33.2	38.5	38.3	45	51	58	47.5	54.5	62	78.3	65	82	102	123	91	112	136	162	123	148	176	208	178	212	248	288	284	328.6	377
	INJECTION PRESSURE	Mpa	193	173	148	196	168	145	247	188	146	229	179	143	223	178	145	219	187	161	208	179	156	137	219	191	168	133	224	177	143	118	228	184	152	128	185	170	155	143	208	175	150	128	166	145	128
	INJECTION RATE	g/s	88	100	115	117	130	150	124	157	194	170	210	254	233	281	335	272	319	370	294	341	392	446	369	424	481	610	428	541	668	808	542	669	809	963	792	867	945	1023	812	966	1133	1315	1052	1225	1380
	SCREW SPEED	rpm	0~225			0~200			0~225			0~225			0~225			0~200			0~185				0~155				0~130				0~120				0~100				0~100				0~90
	PLASTICIZING CAPACITY	g/s	12.1	13	15.2	12.9	15	20.1	13.6	18.6	24.6	19	24.1	30.8	24.2	31.3	37.4	35.7	43	51.2	37.2	44.2	51.9	59	43.2	50.5	58.7	74.2	57	73	90	110	77	98	125	155	121	135	145	156	105	125	148	171	150	173	192
CLAMPING UNIT	CLAMPING FORCE	KN	1000			1300			1800			2400			2800			3500			4200				5000				6800				7800				10000				12500				16800
	OPEN STROKE	mm	335			375			450			510			570			660			710				800				860				980				1100				1250				1560
	SPACE BETWEEN TIE BARS(W×H)	mm	380×380			430×430			510×510			560×560			610×610			680×680			740×740				810×810				895×895				980×980				1100×1100				1250×1250				1500×1400
	MOULD THICKNESS	mm	150~400			150~450			180~520			200~550			220~580			250~680			280~730				320~800				400~900				400~980				500~1150				550~1300				700~1500
	EJECTOR FORCE	KN	33			39.6			39.6			62			62			62			110				110				175				186				215				235				400
	EJECTOR STROKE	mm	100			130			140			140			160			160			200				200				260				260				280				320				400
	EJECTOR NUMBER	n	5			5			5			5			9			13			13				13				17				21				21				21				33
OTHERS	HEATER POWER	KW	7.1			7.7			9.7			15			19.8			18.7			26.4				30.5				50				58				68				85				92
		A	11			13.3			20			32.8			43.8			35.6			58.2				66				110				127.6				149.6				187				190
	PUMP MOTOR POWER	KW	11			13			18.5			22			30			37			37				45				22+37				37+37				45+45				55+55				45+45+45
		A	24.6			29			36.4			43			60			70.3			70.3				86				113.3				140.6				172				206				258
	MAX PUMP PRESSURE	Mpa	16			16			16			16			16			16			16				16				16				16				16				16				16
	MACHINE DIMESION(L×W×H)	m	4.25×1.2×1.7			4.49×1.19×1.8			5.1×1.5×1.9			5.3×1.5×1.95			5.7×1.7×2.1			7×1.9×2.2			7.3×2.0×2.2				8.1×2.1×2.3				10×2.5×3.8				11×2.6×3.8				12×2.8×4				13.8×3.2×4.2				14.6×3.5×4.9
	MACHINE WEIGHT	t	3.5			4.5			5.26			6.7			8.2			13.2			17				19.2				36				46				58				65				105
	HOPPER CAPACITY	L	25			25			25			50			50			50			50				100				200				200				200				200				400
	OIL BOX CAPACITY	L	210			240			320			450			610			760			960				1100				1250				1480				1700				1900				2400

Prod Model:	CSD-S180
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor:	Servo Motor (Energy Saving)
Features:	Direct Pressure, Most Stable Mold Clamping System
Type:	Injection Blow Molding
Automation:	Automatic
Structure:	Horizontal
Computerized:	Computerized
Plastic Type:	Thermoplastic
Plasticizing Way:	Screw Type
Clamping Way:	Hydraulic & Mechanical
Certification:	CE

Changshengda Machinery (Zhejiang) Co. Ltd. (CSD) was established in 1992 with a registered capital of $5.2 million USD from Australian sole-ownership enterprises, and boasts a 72, 000 square meter factory zone. The company specializes in research and development in environmental protection, high-precision energy saving injection molding machines for medical and food industry, PET two stage automatic injection stretch blow molding machines, automatic extrusion blow molding machines and various types of plastic moulds and other hi-tech products. Its produce a wide range of goods such as food and beverages packing, plastic goods, pharmaceuticals packing, cleaning products, auto parts, toiletries, home appliances, construction materials, electronics, and so on. CSD's products achieved exceptional sales in South East Asia, the Americas, Eastern Europe, the Middle East, Europe and Africa. Currently the company is working in conjunction with ten of China's most famous brands. CSD's products have gained recognition both inside and outside China as a highly precise, energy-efficient and incredibly streamlined manufacturing company.

CSD boasts a standardized and streamlined production and operations system which has received ISO9001 quality authentication. The company has also been giving the following honorary titles: "Provincial Hi-tech Enterprise R&D Centre", "Zhejiang Province Hi-tech Enterprise", "Zhejiang patent demonstration enterprise", among others. CSD's business ethic primarily focuses on three aspects - one, acting in good faith at all times; Two, making science and technology a priority; And three, thriving on producing superior quality products. The company makes use of advanced design concepts, sophisticated processing equipment and incredibly precise manufacturing methods to meet the needs of high-end clients both inside and outside China.

CSD's products are continuously being innovated in a bib to ensure product quality and secure a reputable corporate image. The company also promotes the service commitment of one station service. The establishment of CSD after-sales centers all around the world not only demonstrates the company's dedication to thorough after-sales support, but also shows a commitment to providing excellent goods at reasonable prices to both new and existing clients.

CSD's employees are driven towards pluralism, standardization and the industrialized development of new technologies, and the company is committed to being an industry leader in plastic goods manufacturing.
