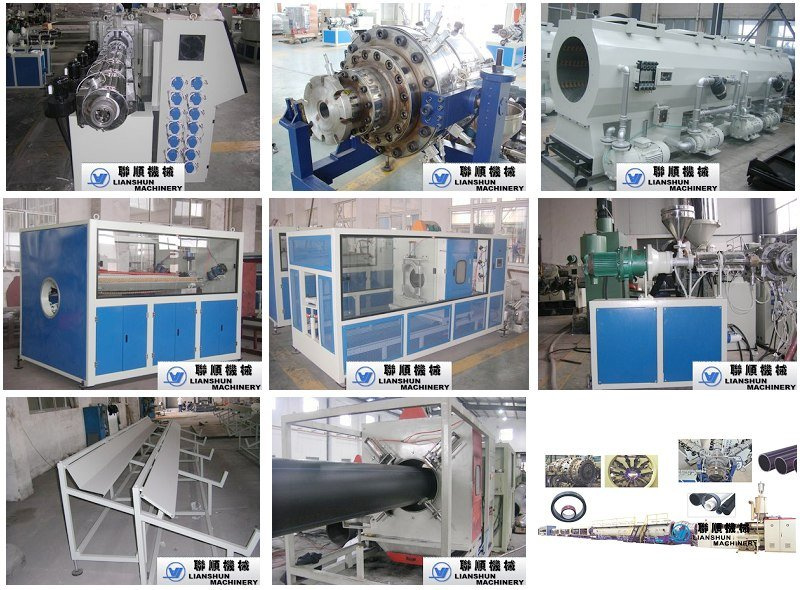

PE Pipe Extrusion Machine
Components:
1. Automatic Feeder
2. Hopper Dryer
3. Single-Screw Extruder
4. PE Pipe Mould
5. Vacuum Calibration Tank
6. Spray Box
7. Haul-off Machine
8. Cutter
9. Stacker
Features and application:
1) The production line is mainly used to manufacture plastic PE gas & water pipes, and GF series pipe production line also can process other plastics.
2) Extruder and GF series pipe production line integrates priority, reliability & practicality together, and provide strong assurance for high-quality plastic tube for users.
|
Main Technical Parameters |
|
MODEL |
OD RANGE (mm) |
MATCHED EXTRUDER |
OUTPUT(kg/h) |
TOTAL INSTALLED POWER(kw) |
|
PEG-63 |
20-63 |
SJ60/33 SJ25/25 |
120-220 |
130 |
|
PEG-160 |
50-160 |
SJ75/33 SJ25/25 |
120-220 |
130 |
|
PEG-250 |
75-250 |
SJ75/33 SJ25/25 |
280-350 |
280 |
|
PEG-450 |
160-450 |
SJ90/33 SJ25/25 |
350-450 |
400 |
|
PEG-630 |
315-630 |
SJ120/33 SJ25/25 |
550-850 |
550 |
|
PEG-800 |
450-800 |
SJ150/33 J25/25 |
800-1300 |
750 |
|
PEG-1000 |
600-1000 |
SJ150/33 SJ25/25 |
800-1300 |
750 |
|
PEG-1200 |
800-1200 |
SJ150/33 SJ25/25 |
800-1300 |
900 |
Jiangsu Lianshun Machinery Co., Ltd., specializes in producing plastic machines, including pipe machines, sheet machines, profiled machines, recycling machines and auxiliary machines.
After more than four years development, the technologies are developed and the functions of machines are stable, especially for plastic pipe production lines and recycling machines. The main products of our company have been exported to different countries and have a good reputation.
We welcome customers from all over the world to cooperate with us. Please do not hesitate to contact us if you have further inquiry. We look forward to hearring from you soon in order to provide you with our best of service.
