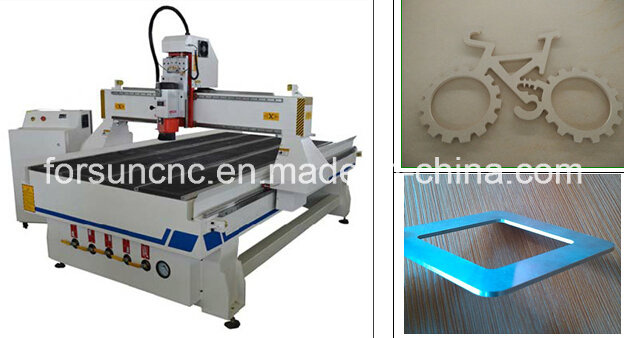

CE supply woodworking machine
Applicable Industry and materials:
1) Mould: wood,wax, wood, gypsum,foams,wax
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, ABS
4) Decorate industry: Acrylic, PVC, MDF,plastic and soft metals such as copper, aluminum
Configuration of CNC Carving Engraving machine
| Standard Configuration: |
1).Working area: 1300mm*2500mm*200mm (X,Y,Z axis)
2).Solid steel frame construction
3) 3.0kw water cooling spindle.
4) Stepper Motors
5).T-Slot PVC table
6).HIWIN Linear Guide for maximum stiffness from Taiwan
7) NC Studio controller system
8) Drive System:X and Y axis:Helical Rack and Pinion, Z axis: Lead Screw
9) Automatic Tool Calibration
10) ArtCam software,
11) Fuling Inverter
12) 3PH 380V 50HZ
13) Plywood case package |
Option item of CNC Carving Engraving machine
1. Water cooling or Oil-free air-cooled vacuum pump
2. Dust collector system
3. Oil mist cooling system (We suggest if processing on hard material)
4. Original type3 software from France
5. Carousel type auto tool changer
6. Laser light curtain safety system
Technical parameter of CNC Carving Engraving machine
| Technical Data |
| NO | Description | Parameter |
| 1 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 2 | X,Y,Z Repositioning Accuracy: | ±0.03mm/300mm |
| 3 | Max. Rapid Travel Rate | 80000mm/min |
| 4 | Max. Working Speed | 45000mm/min |
| 6 | Spindle Speed | 0-24000RPM |
| 7 | Command Language | G Code |
| 8 | Flash Memory | 512M |
| 9 | Collet | ER32 |
| 10 | X,Y Resolution | <0.03mm |
| 11 | Running Environment Temperature | 0 - 45 Centigrade |
| 12 | Relative Humidity | 30% - 75% |
| 13 | Packing Size | 3520*2280*2500mm |
| 14 | N.W. | 1500KG |
| 15 | G.W. | 1700KG |
Quality is our sincerest respect offered to all our customers,and it is the most important factor to maintain long-term business relationship with us.
Please Send an inquiry now,you will have more discount & more detail about price,packing,shipping,ect.
Forsun is a leading global manufacturer of CNC routers, plasma arc cutting machines, and laser cutting machines. All the machines have been certified by CE. In manufacturing, the quality processes used are directly reflected in the excellent product that is delivered to your door. We have partnered with specific component manufacturers to deliver the best components for our machine systems. Our focus is on integrating advanced technology and value into systems that are highly productive, easy to use and built to last. Some of our strategic vendors include HSD Spindles, THK Bearing Systems, Siemens control system, YASKAWA servo, HIVIN linear guide and Eisler Reducer. As a machine builder, the exacting manufacturing processes we have created ensure that even custom systems can be engineered, manufactured and delivered with the shortest manufacturing lead times in the industry. We are near to you physically, and only a phone call or email away electronically for machinery, software and consumable sales as well as after sales support. Count on Forsun to work with you in your machine decision process, to build you an excellent quality CNC router that will work for years, and to continue to support you and your machine decision for years to come. We strive toward exemplary customer satisfaction, employee career fulfillment and corporate citizenship. Success in these areas, we believe, will yield long-term benefits for the Forsun brand, Forsun employees and our partners.
