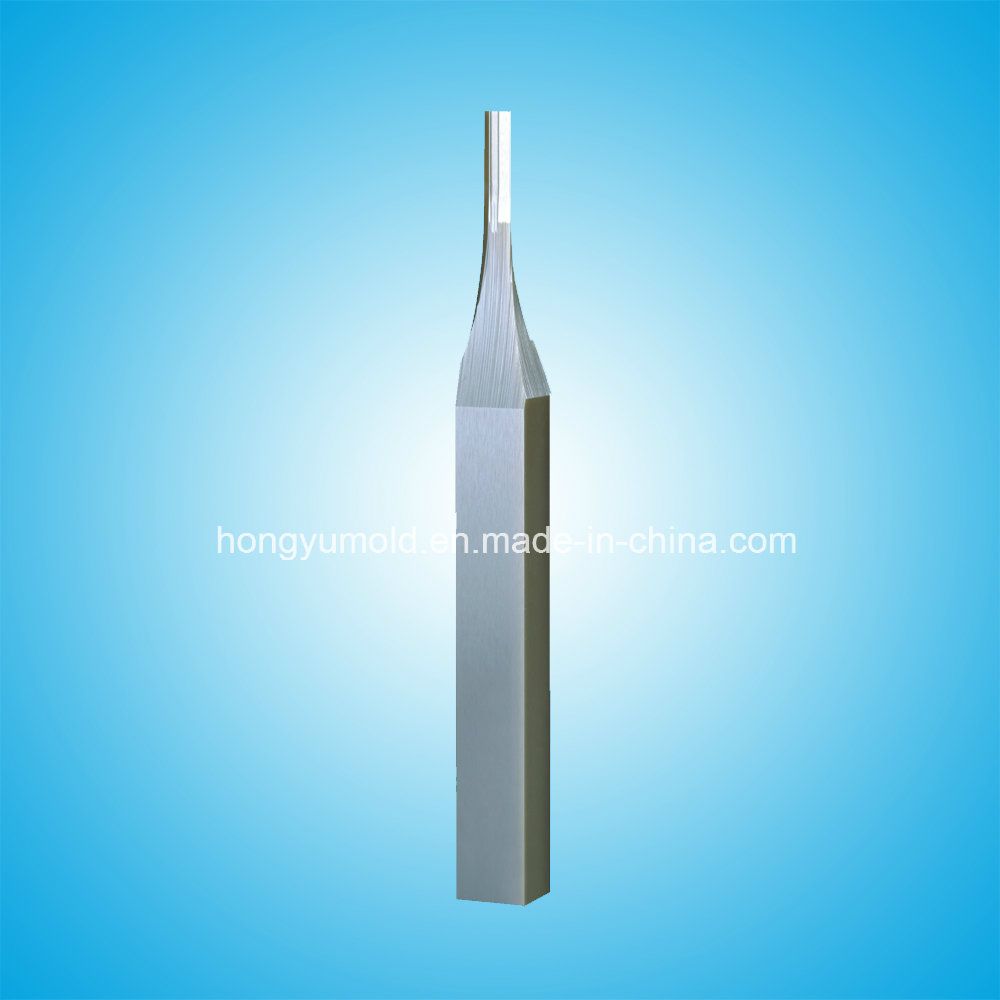

Ceramics Parts (good for less than 0.30mm shim stamping)
Price: |
US $ 10/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
T/T |
With Φ0.2 wire cutting, tolerance can be controlled in ±0.003mm. Outside contour with ±0.002mm. We have three kinds of wires, the diameters are Φ0.2, Φ0.15 and Φ0.1, the smallest radius we can do is R0.07.Product introductions:1 | Item | description |
2 | Name | wire cut Die |
3 | Process Machine | Grinding machine, Sodick Wire cut machine |
4 | Measuring instruments | Projector, Toolmaker Microscope |
5 | Contour tolerance | ±0.001 |
6 | Profile tolerance | ±0.002 |
7 | Hole tolerance | ±0.003 |
|
|
|
9 | First trial place order | Track service, anything is wrong, we will take immediate measures |
10 | Quotation | Once receive RFQ, we will reply you in 2 hours |
11 | Delivery time | 10-20 days after confirm the order |
12 | Material | CF-H40S, RD30,RD50,ASP23, AF1,,etc. |
13 | Design | Non-standard(according to customers' request), Standard |
14 | Minimum order | Products are non-standard parts, one piece is acceptable. |
15 | Packing | Carton, attached Quality Control report |
Any more questions, call me, let's talk more!
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Eastern Asia |
Size: |
5mm*7mm*60mm |
Life Time: |
3 Years |
Hole Tolerance: |
+/-0.003 |
Specification: |
Non-Standard, Standard |
Application: |
Stamping Mould |
Material: |
Hard Alloy and Steel Bonded Carbide |
Technics: |
Cutting Die |
Process Combination: |
Progressive Die |
Manufacturing Technology: |
Automation Technology |
Driving Motor Type: |
Permanent Magnet |
Mold Cavity Technology: |
The Traditional Forming Electrode Machining |
Milling Speed: |
High Speed |
Parts Detection Method: |
Geometric Detection |
Processing Method: |
Grind, Wire Cut |

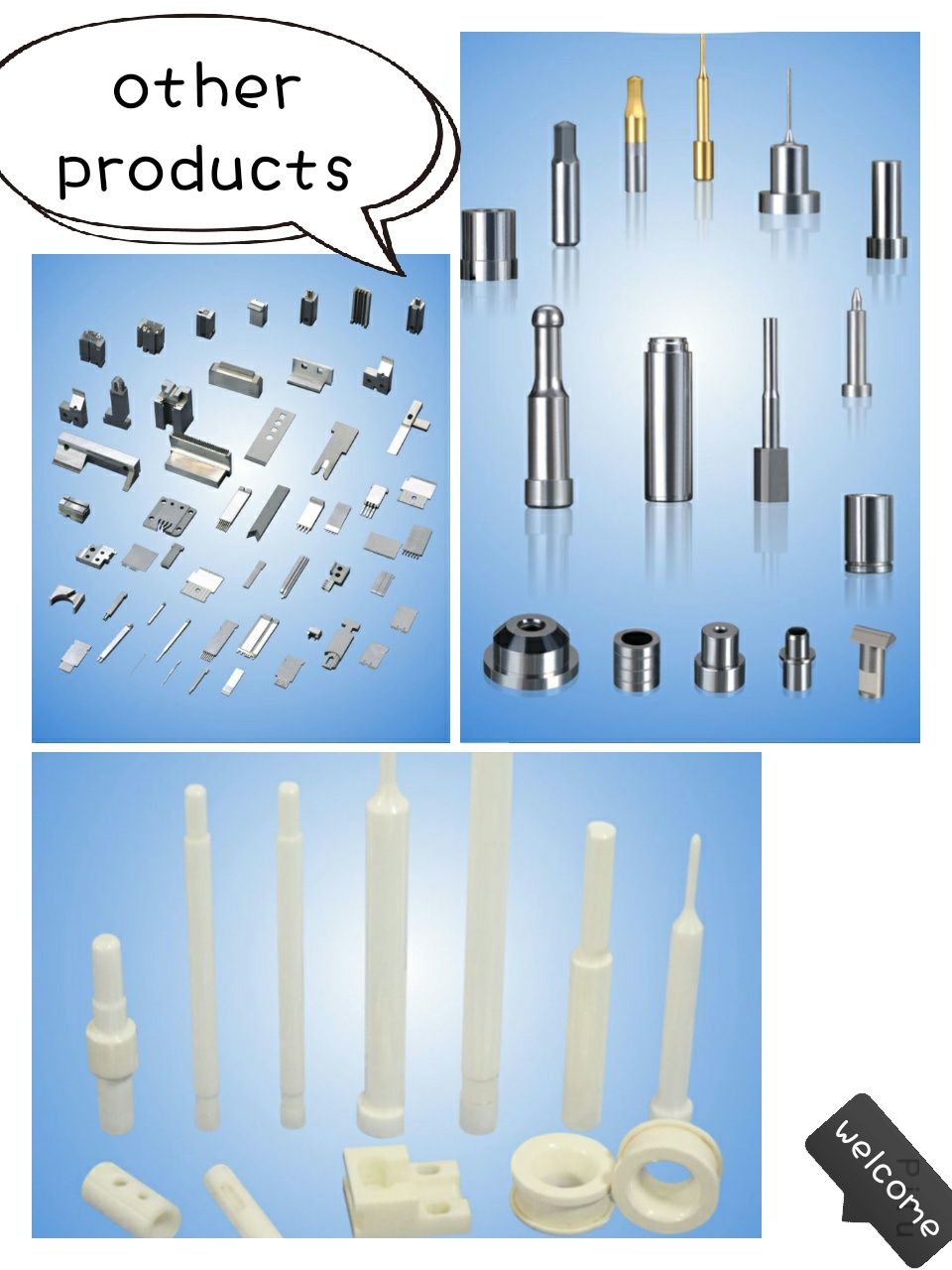

HONGYU Mould Co., Ltd specializes in high precision parts for press molding/ Punching molding/ tungsten carbide molding component/metal tools/ Motor core dies/ SMD mould/ Connector molding parts/ tungsten, steel mold grinding/CNC optical profile grinding/ CNC wire cutting
Manufacturing/precision elec. Discharge
Machining/processing plastic molding component/mirror surface processing/electric pieces of wire cutting machines. Last year we have developed good CNC grinding surface S0.2 (Ra0.04um) with high accuracy quality.

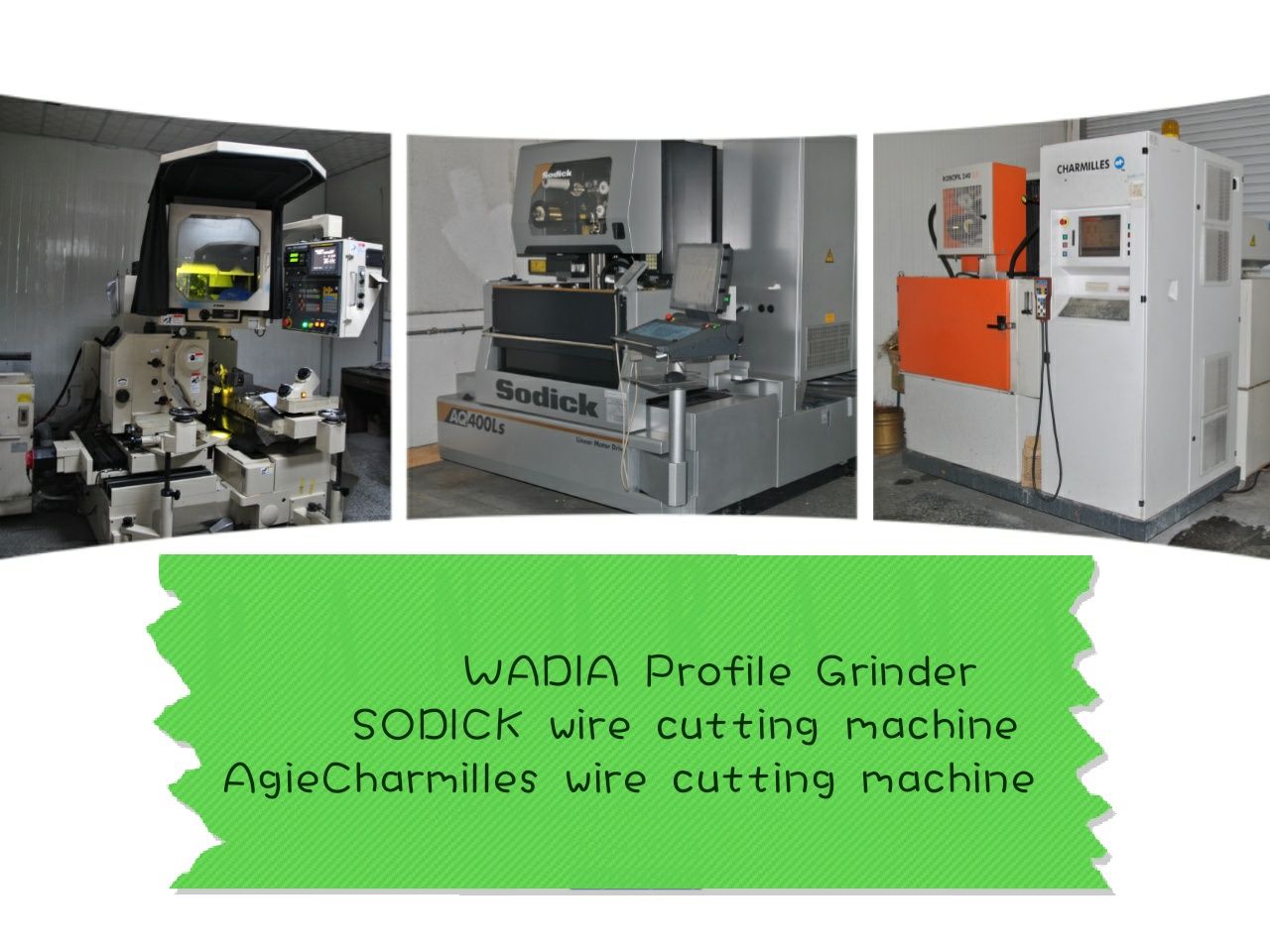

In possession of well known imported equipment including Swiss CNC wire cutting machines/ Sodick wire cutting machine/ Japanese CNC profile grinding machines/Taiwanese elec. Discharge machines/ Taiwanese surface grinding machines and other machines, we can provide high quality, reasonable price products and best service in time.
Our company persists in the principle of "customers as the center, quality as the basement of company's development and service". For finished products, we set up necessary professional testing and measuring equipment including NIKON-V1213 projector, Accretech Contourecord 1600G, Nikon Dig micro altimeter MS-11C, Mitutoyo dig micrometer caliper IP65 and Toolmaker Microscope CURO VM-GI.
We are one of most professional team with over 40 technical employees. We are not very big but we are very proud of our product quality and we do believe that we can provide the best service. We will continue to satisfy all overseas customers and local friends by high quality products, reasonable prices and the best services.
Address: 126 Xinma Road, xinmalian village, Dalang town, Dongguan City,
Guangdong province, China.
Postal code: 523785
Tel: +86 769 83203300 83011518 83011519
Fax: +86 769 83202200
