Plastic Table Spoon Mould:
1. Steel of core & cavity: 2.2311
2. Mold base: 45# (Customized)
3. Cavity: 1x26
4. Yudo Hot ruuner
5. Surface: Mirror polishing
6. Cooling System: Enough cooling
7. Tolerance: 0.02mm, 2D/3D control
8. Mold life: 1000k shots
9. Finishe time for first sample: 40 days
10. Material of table spoon: PS-125(RYSTAC)
11. Weight of table spoon: 2.5g

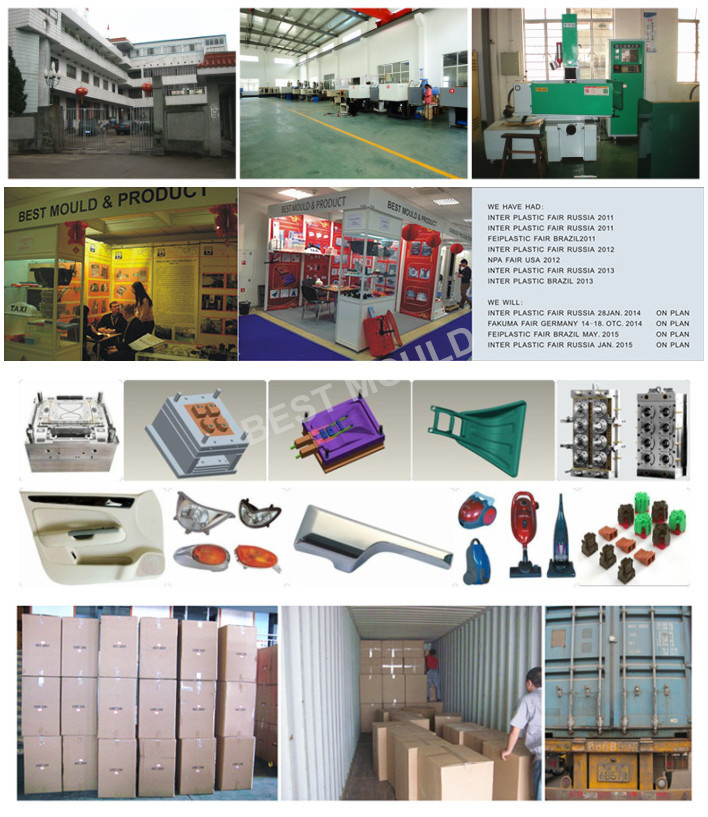

Photoes show of company
Key Specifications/Special Features:
In order to make sure doff automatic and without any eject mark, must be arrange high Polish for this Plastic Table Spoon Mould. This rack choose PSmaterial, then advice choose hard enough steel
1. Customized designs, sizes and frames are accepted
2. Mold steel: 1.2311 forging for cor and cav, 45# for mould base (customized)
3. Mold treatment: Final treatment for cor and cav plates by vacuum queching to 30 to 38deg; (whole plates 0.3mm hardness)
4. Mold cavity: 1*26
5. Mold software: Choose UG for 3D design, AutoCAD for 2D drawing, mould flow for runner analyze
6. Mold size: 500x 500mm (depends on client's machine upon changing mould size)
7. Mold fix machine: 250T on injection molding machine
8. Plastic material: PS (on normal choose PS)
9. Mold cycle time: 28 seconds/shot (without cool water when test this mold)
10. Mould doff way: Automatic by ejectors and air spring (Hasco standard)
11. Mold lifespan (minimum): 1, 000, 000 shots
12. Mold base: Copy standard mould base
13. Mold gate way: Hot runner (customized)
14. Mold packing: Standard wooden case
15. Minimum mold order should be one set
16. Mold shipment will be arranged within seven days after confirm samples and received balance
17. After product, if needs long time stay, should put oil (butter mix benzene) on the cor and cav, slider's surface prevents rust, with free spare parts during mold minimum life and technical Aegis.
Features:
1) We can provide molds for various parts according to your requirements
2) We own CNC processing centers, CNC spark working machinery and various advanced mold tooling equipment. We also have established a CAD / CAM / CAE mold design and development center.
3) Our quality, price, after sale services are really competitive
4) Our range covers from eletrical accessory, auto parts, household appliance, computer accessory, medical appliance, car accessory, digital&security parts ect.
|
Material of Core & Cavity |
Cav. |
Mould Base |
Mould life(shots) |
Surface/Texture |
P20 718H NAK80 2316
SAARSRAHL AG 1.2311 |
1*1 |
LKM LKM (HASCO 50#) DME |
300000 500, 000 1000, 1000 |
EDM MOLDTECH High Polish |
|
|
|
|
|
|
|
Machine |
Lead Time |
Special |
Advantage |
|
|
Advance CNC, EDM, W-cut |
40Days |
Glossy Surface |
High Polish |
|
|
|
|
|
|
|
|
Products Details: |
|
|
|
|
|
Dimension (mm) |
Material |
Dimension control |
Tolerance |
|
|
|
|
2D/3D Device |
0.02mm |
|
Wenzhou Best Mould & Plastic Products Manufacturing Co., Ltd. is lies in "base of Chinese precision mould, Yueqing, Zhejiang, specialized in plastic mould, automatic stamping, die and Zinc, Aluminum casting die, at the sametime, supplying all kinds of machined and assembly for products, Due to requirements from Marketing. Our products are exported to European and American, South Asia and Middle East etc countries and area.
Wenzhou Best Mold Manufacturing Co., Ltd. is founded in 2003, we can supply from design for product appearance and Construsture, mould to mould made completed service, adopting ISO9001: 2000 quality management model, with CAD/CAM/CAE system and advanced working station, creating network system, successful in enjoying source, forming high express of information data. The mould design and machined are made together to assure powerful manufacturing high and precision mould, good communication with our pressure customer, let customers know progress in mould product.
We have CNC machining center, wire erose, EDM machine etc machined equipment, to assure of our customer high effiency in mould production, Best-Mould is equipped with advanced equipment and techical, strict quality management, reasonable price, supplying with satisfied service to our customer.
