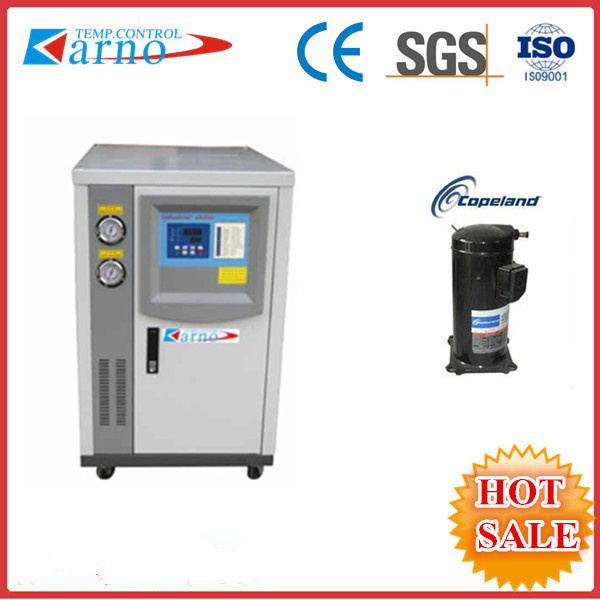

China Manufacture Water Cooling Chiler Unit (KN-7WC)
Water tank evaporator
Water tank evaporator is made with thick stainless steel having automatic water compensation function.
With out requiring of installation of expansion water tank make maintenance more convenient and is fit For high flow rate and small temperature difference and other special applications.
Unit composition
The unit incorporating accurate electric temperature control which can accurately control the temperature Between525° , circulating water pump overburden brake, system abnormal high and low pressure Protector, imported high efficiency dry filter and expanding valve, repairing valve interface and other Settings is insured to be safely and reliably operated and conveniently maintained.
Optional pump settings
We can provide imported high efficiency and low energy consumption pump according to the requirement Of the consumers to make the in instillation and using of the progress water-cooling machine more quick And convenient.
Application Industry:
Plastic industry, electronics industry, electroplating industry, machinery industry, construction industry, food service industry, chemical industry, laser industry, ultrasonic/ultrasound industry, freshness of food industry, seafood industry, numerical control processing industry, ship manufacturing industry, steel and iron manufacturing industry, discharge industry, shoe making industry, leather dry cleaning industry etc...
Applicable equipment
Blowing machine, bottle blowing machine, extruding machine, injection molding machine, foaming
Machine, polyurethane equipment, CNC, laser engraver, reaction kettle, vacuum coating/plating, lab application, cast film etc...
Technical parameters of water cooling chiller unit
Type | Model |
|
|
| KN-2WC | KN-3WC | KN-5WC | KN-6WC | KN-7WC | KN-8WC | KN-1OWC | KN-12WC | KN-15WC | KN-20WC | KN-25WC | KN-30WC | KN-40WC | KN-50WC |
| 50HZ | Btu / h | 23898 | 33457 | 42334 | 57014 | 66232 | 77498 | 110614 | 12890 | 148168 | 221227 | 267316 | 296335 | 442454 | 534632 |
Cooling capacity | KW | 7 | 9.8 | 12.4 | 16.7 | 19.4 | 22.7 | 32.4 | 36.9 | 43.4 | 64.8 | 78.3 | 86.8 | 129.6 | 156.6 |
| Kal / h | 6019 | 8426 | 10662 | 14359 | 16681 | 19518 | 27859 | 31734 | 37317 | 55718 | 67326 | 74635 | 111436 | 134652 |
| Ton | 2 | 2.8 | 3.5 | 4.7 | 5.5 | 6.5 | 9.2 | 10.63 | 12.3 | 18.4 | 22.3 | 24.7 | 36.8 | 44.5 |
Power supply | 220V-1PH-50HZ | 380-415V---3PH-50HZ / 60HZ |
Compressor Power | KW | 1.82 | 2.31 | 3.8 | 4.56 | 5.3 | 6.02 | 7.82 | 9.05 | 11.24 | 15.3 | 18.67 | 22.68 | 30.52 | 37.8 |
Flow Regulator | Capillary vessel | Thermoexpension valve |
Refrigerant | R22 / R407 |
Condenser | style | Shell and tube |
DN | 25 | 32 | 32 | 32 | 40 | 40 | 50 | 50 | 50 | 65 | 65 | 65 | 80 | 80 |
M 3 / h | 1.52 | 2.13 | 2.65 | 3.66 | 5.25 | 4.86 | 7.1 | 8.5 | 9.34 | 14.2 | 16.75 | 18.69 | 27.92 | 33.74 |
Evaporator | style | Water tank / shell and tube |
Water tank Vol.: L | 35 | 55 | 55 | 55 | 75 | 145 | 210 | 280 | 360 | 510 | 510 | 510 | 600 | 780 |
Chiller water flow | M3 / h | 1.21 | 1.69 | 2.14 | 2.88 | 3.34 | 3.91 | 5.58 | 6.8 | 7.48 | 11.16 | 13.49 | 14.95 | 22.32 | 26.97 |
Outlet / inlet connection | DN | 25 | 25 | 32 | 32 | 32 | 32 | 40 | 50 | 50 | 65 | 65 | 65 | 80 | 80 |
Water pump | HP | 0.5 | 0.5 | 0.5 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 3 | 5 | 7.5 |
Weight | KG | 110 | 120 | 130 | 185 | 200 | 315 | 355 |
