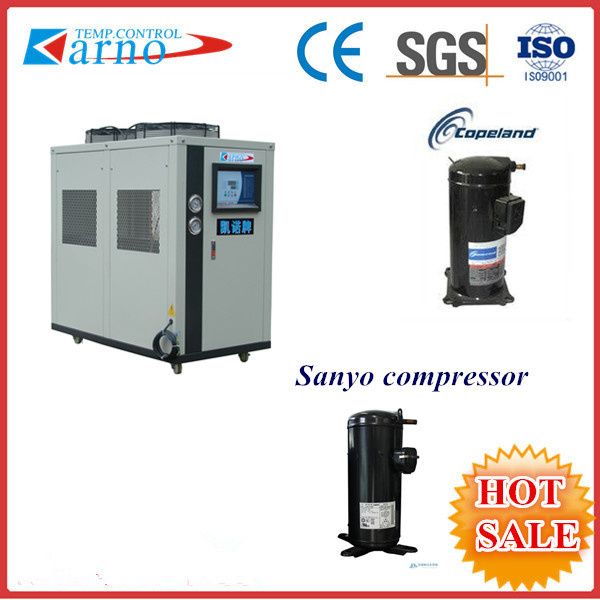

Injection Mold Machine Used Air Cool Chiller (KN-7AC)
Note:
1. Air Chiller Without the Cooling Tower
2. Air Source Water chiller is an ideal choice for places with much dusts and fith
3. Air Source Water Chiller is suitable for area with low-quality water. And it can save the cooling tower and auxiliary devices
4. Its large -capaciy condenser operate well in even very hot seasons
Description Of it:
1. Outlet chilled water temperature range: 5 - 25 Celsius
2. World name brand compressors from Bitzer/Germany, Danfoss/France, Copland/USA, SANYO/Japan, etc
3. Internal electric control parts from Schneider/France, Siemens/Germany, etc
4. Built-in water pump from Minamoto/Taiwan since 1986
5. High efficiency condensers: Copper tube coils and aluminum fins with low noise radial fans, cool the
Water in a short duration to reduce the power consumption
6. Water tank type evaporator made of 304 stainless steel with internal copper tube coils and external
Thermo-insulation layers
7. Shell and tube type evaporator also available
8. Precise microcomputer control system and LED touch screen to make the technicians monitor the
Chiller machine operation condition constantly
9. Especially suitable for these occasions where is short of water or the water is not that clean or the
Chiller machine shall move with the equipment accordingly
10. Caution: Not that advisable to use air cooled water chiller where the air ventilation of the workshop is
Not that good because such conditions maybe influence the cooling effect
11. Faultless aftersales service: Personnels from the aftersales service department can quickly respond
To users requirements upon the receipt of the trouble notice
12. Economical, save the cost of auxiliary equipments: Cooling tower and water pump and related pipes
13. Easy to assemble, disasseble, install and maintenance
14. Box type design, elegant in apperance
15. R22/r134A/r407 refrigerant available
16. Short lead time, timely delivery, and one year quality warranty
Applicable industry
Air Cool Chiller is mainly used for Plastic industry, electronics industry, electroplating industry, machinery industry, construction industry, food service industry, chemical industry, laser industry, ultrasonic/ultrasound industry, freshness of food industry, seafood industry, numerical control processing industry, ship manufacturing industry, steel and iron manufacturing industry, discharge industry, shoe making industry, leather dry cleaning industry etc.
Applicable equipment
Air Cool Chiller is mainly used for Blowing machine, bottle blowing machine, extruding machine, injection molding machine, foaming machine, polyurethane equipment, CNC, laser engraver, reaction kettle, vacuum coating/plating, lab application, cast film etc.
Remarks:
1. The chilled water temperature of such chillers is 5 to 25 celsius, and minus 30 celsius can be made.
2. All chillers contain refrigerant r22/r407/r134A when shipped.
3. These chillers listed above are air cooled type, and water cooled type of the same are available.
4. All parts, whole machines and tube connections are up to standards.
5. Nonstandard parts, machines and tube dimensions can be made as per the customer's needs.
6. Installation, commissioning and maintenance shalll be performed by qualified service technicians.
Payments Terms:
1. T/T, 50% as deposite and the balance to be paid before shipment
2. Per your special requests are also welcome for discussion.
Warranty:
1. With one year warranty
2. Per your special requests are also welcome for discussion.
Note:
1. The machinery will be packed with standard wooden case
2. One unit in one international wooden case
3. Delivery time: About 20 days upon receipt of deposit
Technical Parameters Of Injection Mold Machine Used Air Cool Chiller (KN-7AC)
| Type | Model |
| | | | KN-2AC | KN-3AC | KN-5AC | KN-6AC | KN-7AC | KN-8AC | KN-1OAC | KN-12AC | KN-15AC | KN-20AC | KN-25AC | KN-30AC | KN-40AC | KN-50AC |
| | 50HZ | Btu/h | 20665 | 28541 | 36427 | 48820 | 57082 | 66095 | 94636 | 12368 | 126183 | 189272 | 228704 | 252363 | 378544 | 457408 |
| Cooling capacity | KW | 6.05 | 8.36 | 10.67 | 14.3 | 16.72 | 19.36 | 27.72 | 31.68 | 36.96 | 55.44 | 67.02 | 74.9 | 110.88 | 133.98 |
| | Kal/h | 5202 | 7190 | 9176 | 12296 | 14377 | 16647 | 23835 | 27245 | 31786 | 47678 | 57601 | 63560 | 95357 | 115222 |
| | Ton | 2.08 | 2.4 | 3 | 4.1 | 4.8 | 5.5 | 9.8 | 9.08 | 10.5 | 19.64 | 19.3 | 21 | 31.5 | 38.1 |
| Power supply | 220V-1PH-50HZ | 380-415V---3PH-50HZ/60HZ |
| Compressor Power | KW | 1.7 | 2.43 | 3.91 | 4.82 | 5.6 | 6.16 | 7.72 | 9.25 | 10.08 | 15.64 | 20.8 | 25.65 | 33.6 | 38.6 |
| Flow Regulator | Capillary vessel | Thermoexpension valve |
| Refrigerant | R22/R407 |
| Condenser | style | Copper tubing-aluminum fin type with low noise axial fan |
| M3/h | 2000 | 3000 | 5000 | 6000 | 7000 | 8000 | 10000 | 15000 | 20000 | 20000 | 25000 | 30000 | 40000 | 50000 |
| Evaporator | style | Water tank/shell and tube |
| Water tank Vol.: L | 35 | 55 | 55 | 75 | 75 | 145 | 210 | 250 | 360 | 510 | 510 | 510 | 600 | 780 |
| Chiller water flow | M3/h | 1.04 | 1.44 | 1.84 | 2.46 | 2.88 | 3.33 | 4.77 | 5.57 | 6.37 | 9.55 | 44.54 | 12.73 | 19.23 | 23.08 |
| Outlet/inlet connection | DN | 25 | 25 | 25 | 32 | 32 | 32 | 40 | 40 | 40 | 50 | 65 | 65 | 80 | 80 |
| Water pump | HP | 0.5 | 0.5 | 0.5 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 3 | 5 | 5 |
| Weight | KG | 102 | 150 | 176 | 260 | 280 | 320 | 410 | 730 | 760 | 830 | 1200 | 1400 | 1520 | 1620 |
Dongguan Kainuo Machinery Co., Ltd is an automatic equipment manufacture which develops, designs and produces independenttly. It mainly manufactures industrial cooling and heating equipments and plastic auxiliary equipments and so on. Our professionals provide problems solutions according to customers special needs and environments conditions, Kainuo's main products are: industrial refrigeration chillers (including low-temperature chillers, laser chillers, air-conditionings, refrigerant chillers for electroplating etc. ), mold temperature machines (including the transport water or oil mold temperature controller, normal temperature to the Ultra-high temperature mold temperature controller ), plastic machinery (including honeycomb dehumidifying dryer, rubber crusher, hopper dryer, blending machine, etc). Our company already succeed at stepping into the market, the main customers from Japan, the US, Egypt, Singapore, Malaysia, Indonesia, Thailand, South Africa and so on.
The company has provided specialized refrigeration, heating temperature control equipment and associated soluitions to in 32 different industrial over the world, Some of which include defense, aerospace, plastics, food, medical care, preservation, plating, laser applications, ultrasonic cleaning, optical communication, textile, electronics, leather manufacturing machining, mold manufacturing, furniture, chemicals and so on.
In order to meet the needs of the social progress, Kainuo is developing a new generation of energy-saving. environment protection, safe and reliable products, Not only to design beautiful, but also affordable, durable. At the same time Kainuo with the world famous manufacturer of injection molding make an effort to promote the advanced injection, molding techniques in china's development and applications, help customers to maximize cost saving, increase productivity, extend equipment life, particularly in the food, medical care, and is subject to the genaral customers high praise.
With the best quality, best service and most competitive prices, we are engaged in industrial production for you to solve the problems and difficuities encountered. Feel the future of science and technology, share of advanced knowledge, enhance professional training, taste wonderful creativity, and you creat a glorious, harmonious together.
