China Professional Precision Plastic Injection Mould for Knife and Table Spoon (WBM-201050)

China Professional Precision Plastic Injection Mould for Knife and Table Spoon (WBM-201050)
Price: US $ 7000-9000/Roll
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: T/T,Western Union
We are professional mould manufacturer and as well as produce products for more than 10 years.
SGS certification we got.

Company brief introduction:

1. Over 10 years experience
2. Highly qualified engineering team
3. Competitive price
4. High-tech development direction
5. SGS certification

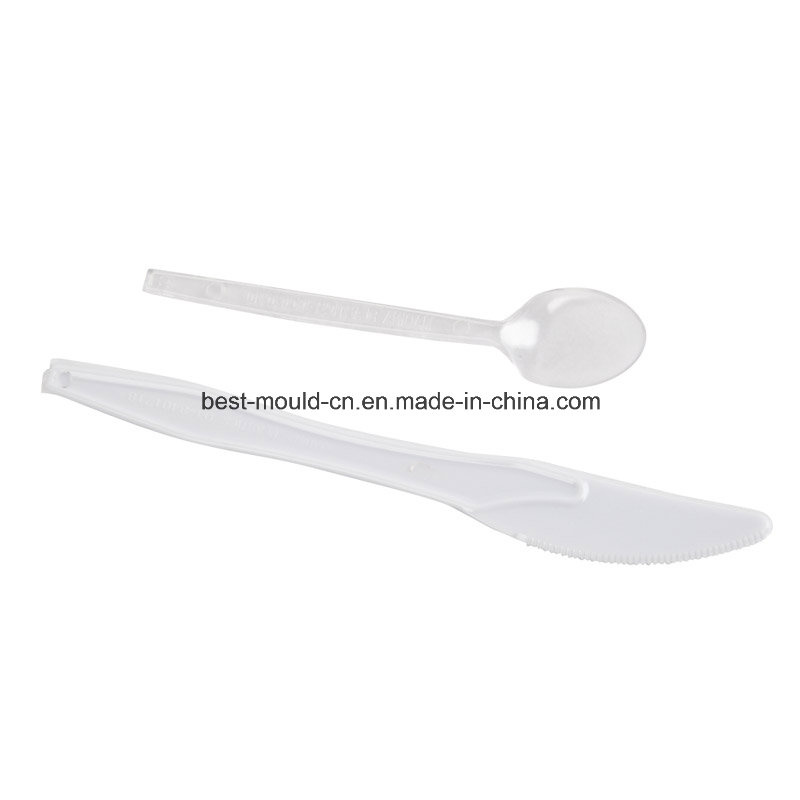

 Process Photoes of table spoon and Knikfe

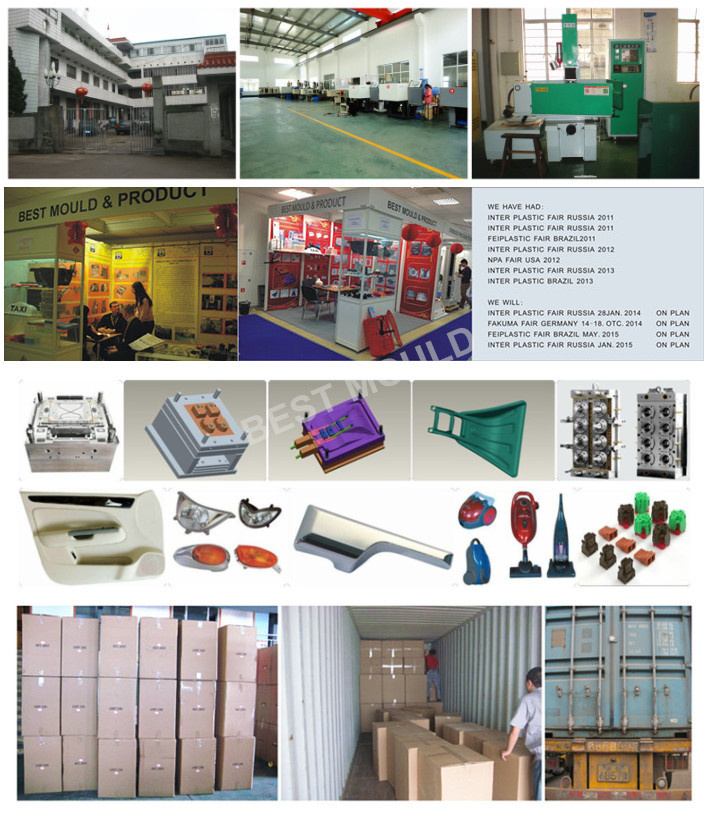

Photoes show of company

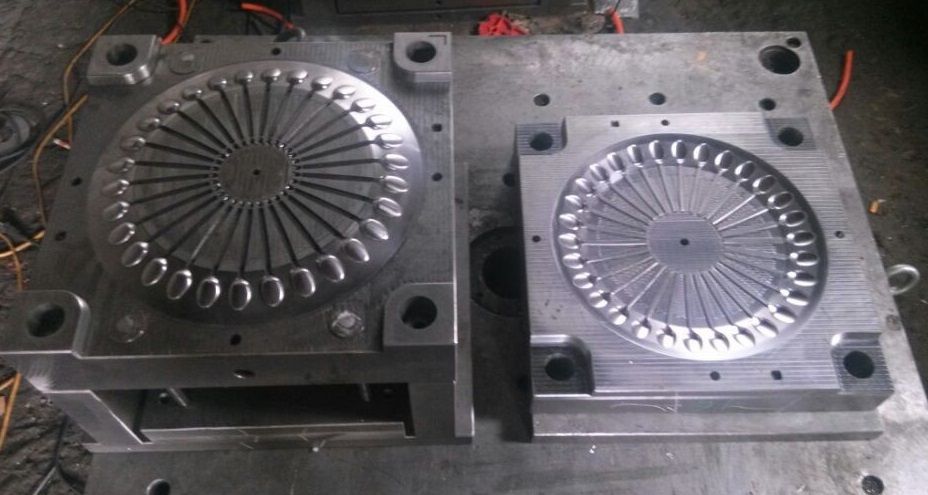

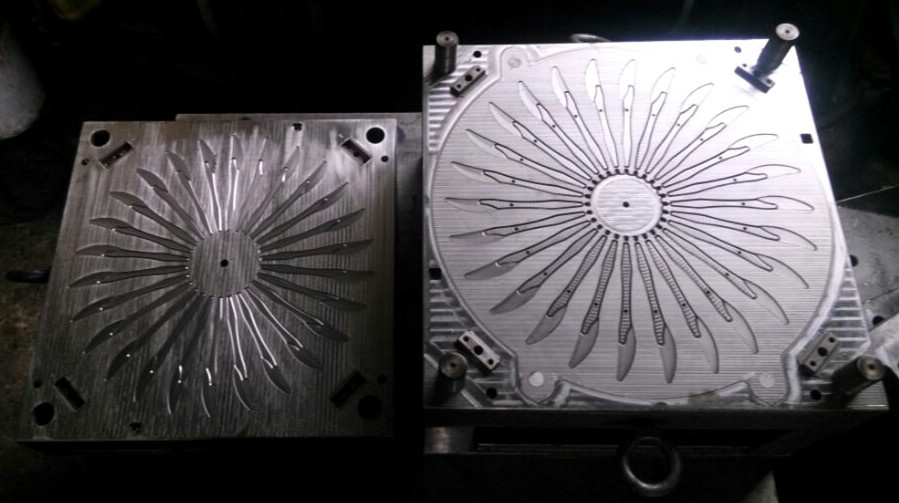

Mould description :
SGS certification
1. Steel of Cavity and core: 2738
2. Mold base: 45#
3. Cavity: 1x26Cavity
4. Mold gate way: Yudo hot runner
5. Cooling system: Enough cooling
6. Surface: Mirror polishing
7. Tolerance: 0.02mm, 2D/3D control
8. Mould life: 1, 000, 000 shots
9. Finishe time for first sample: 40 days.

Key Specifications/Special Features:

In order to make sure doff automatic and without any eject mark, must be arrange high Polish for this Plastic Injection Mould/Mold. This rack choose PP material, then advice choose hard enough steel
1. Customized designs, sizes and frames are accepted
2. Mould steel: NAK80 forging for cor and cav, LKM for moUld base (customized)
3. Mould treatment: Final treatment for cor and cav plates by vacuum queching to 38 to 42deg; (whole plates 0.3mm hardness)
4. Mould cavity: 1*1
5. Mould software: Choose UG for 3D design, AutoCAD for 2D drawing, mould flow for runner analyze

6. Mould size: 600 x 500mm (depends on client's machine upon changing mold size)
7. Mould fix machine: 350T on injection molding machine
8. Plastic material: PP (on normal choose PP)
9. Mould cycle time: 32 seconds/shot (without cool water when test this mold)
10. Mould doff way: Automatic by ejectors and air spring (Hasco standard)
11. Mould lifespan (minimum): 1, 000, 000 shots

12. Mould base: Copy standard mold base
13. Mould gate way: Hot runner (customized)
14. Mould packing: Standard wooden case
15. Minimum mould order should be one set
16. Mould shipment will be arranged within seven days after confirm amples and received balance
17. After product, if needs long time stay, should put oil (butter mix benzene) on the cor and cav, slider's surface prevents rust, with free spare parts during mould minimum life and technical Aegis.

1) We can provide plastic mould for various parts according to your requirements
2) We own CNC processing centers, CNC spark working machinery and various advanced mould tooling equipment. We also have established a CAD / CAM / CAE mould design and development center.
3) Our quality, price, after sale services are really competitive
4) Our range covers from eletrical accessory, auto parts, household appliance, computer accessory, medical appliance, car accessory, digital&security parts ect.
 Mould Details:
Material of Core & CavityCav.Mould BaseMould life(shots)Surface/Texture
P20                                         718H                                     NAK80                                 23161*1LKM                                        LKM (HASCO 50#)                                       DME300000                500,000                   1000,1000 EDM                   MOLDTECH                       High Polish
MachineLead TimeSpecialAdvantage
Advance CNC,EDM,W-cut 45 DaysGlossy SurfaceHigh Polish
Products Details:
Dimension (mm)MaterialDimension ControlTolerance
100*95*74mmABS Korea2D/3D Device 0.02mm
Prod Model: WBM-201050
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mould: Plastic Injection Mould
Cavity: 1*26
Steel Of Cavity And Core: 2738,Nak80,2316,718h,P20,H13
Mould Base: Lkm, Dme, 45#, C50
Mould Gate Way: Yudo Hoto Ruuner/Normal Runner
Surface: Mirrror Polishing
Cooling System: Enough Cooling
Mould Life: 500k-1000k Shots
Tolerance: 0.02mm,2D/3D Control
Finish Time For First Sample: 40 Days
Shaping Mode: Injection Mould
Process Combination Type: Single-Process Mode
Application: Home Use
Installation: Fixed
Mould Cavity: 1*26 Cavity
Plastic Material: PS
Standard: International Mould Standard
Wenzhou Best Mould & Plastic Products Manufacturing Co., Ltd. is lies in "base of Chinese precision mould, Yueqing, Zhejiang, specialized in plastic mould, automatic stamping, die and Zinc, Aluminum casting die, at the sametime, supplying all kinds of machined and assembly for products, Due to requirements from Marketing. Our products are exported to European and American, South Asia and Middle East etc countries and area.

Wenzhou Best Mold Manufacturing Co., Ltd. is founded in 2003, we can supply from design for product appearance and Construsture, mould to mould made completed service, adopting ISO9001: 2000 quality management model, with CAD/CAM/CAE system and advanced working station, creating network system, successful in enjoying source, forming high express of information data. The mould design and machined are made together to assure powerful manufacturing high and precision mould, good communication with our pressure customer, let customers know progress in mould product.

We have CNC machining center, wire erose, EDM machine etc machined equipment, to assure of our customer high effiency in mould production, Best-Mould is equipped with advanced equipment and techical, strict quality management, reasonable price, supplying with satisfied service to our customer.
