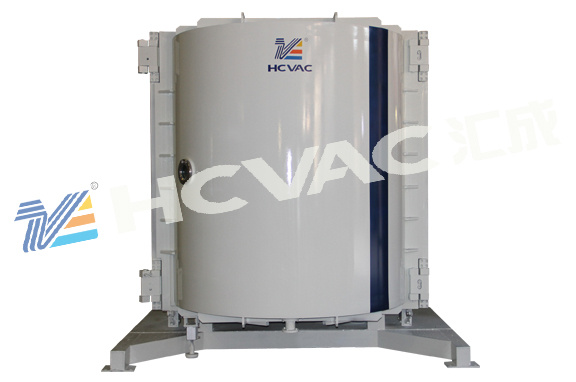

Chrome Vacuum Coating Machine:
Characteristic: The principle of the electric arc is intergrating cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.
Applied industry: Chrome Vacuum Plating Machine can be used to coat metal film, TiN,TiC,ZrN,CrN,Ti,Ni,Cr,Cu and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment.
Chrome Vacuum Plating Machine is used in the fields of ultra-hard coating about the tools and mould, decorative coating about car wheels, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc .
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
A special after-sales service hotline is set up to provide the customers with satisfactory problem solutions and technical support.
ISO 9001 standard to ensure the quality can meet the customer's requirements.
Please feel free to contact us for further information!
Contact: Lillian Yang
Mobile:0086-13825720037
Technical Parameter:
Mode
Dimension | JTZ-1214 | JTZ-1418 | JTZ-1619 | JTZ-1820 |
| 1200*1400mm | 1400*1800mm | 1600*1900mm | 1800*2000mm |
| Application | plastic decorative coating and glass decorative coating |
| Film type | Meal film, translucent film, nonconductive film, electromagnetism shield film, dielectric film, etc. |
| Power source | Resistance evaporation power, DC magnetron power, |
| Sputtering and electrode structure | Column magnetron targets, plane rectangle targets, twin targets, evaporation electrode. |
| Vacuum chamber structure | Vertical double door, Vertical single door, pump system postposition, horizontal single door, pump system for side. |
| Ultimate vacuum | 8.0*10 -4 pa |
| Vacuum system | Diffusion pump +Roots pump +Mechanical pump +Holding pump |
| Pump time | Pump from atmosphere to 8.5*10 -3 ,below15 minutes |
| Control mode | Manual/Automatic all in one mode, Touch screen + PLC |
| Remark | We can design the dimension of the equipment according to customer's special technique requirement. |
DongGuan HuiCheng Vacuum Technology Co., Ltd is a high-tech enterprise specialized in the R&D, Production and Marketing of various kinds of the vacuum equipments. Our company aggregates many excellent technicians in the vacuum industry, including engineers with the senior and middle technique titles. We also invite the senior experts and experienced technicians to be responsible for the development and design of the new products, insure the high technology and quality of the vacuum equipment. Our products are popular with both the domestic and overseas clients, and have a high reputation in the vacuum industry.
Our company is dedicated to the R&D of the series of the vacuum coating machine. We have been designed various coating technics projects according to different requirements successfully, especially in the fields of mobile(computer) shell, electronical appliance, metal, auto parts and high-tech industries, etc. Particularly we designed the special wheels coating machine for the VIP enterprise in Zhejiang Province in 2007, bringing great benifits for the client, making prominent contribution to the environment protection and generating extremely positive social effectiveness. It is high appreciated by the government and craft brother. Therefor this project is listed to the item of the Nation Star Project. Our main products also include slide valve vacuum pump, Roots vacuum pump, water ring vacuum pump, rotary-vane vacuum pump, various vacuum units and different vacuum heating energy equipments, etc.
Our company sticks to the selling concepts of"People-Oriented, Keeping improving, Innovative and Factualistic, Customer First"; Holding the management policy of "Keep the science and technology ahead, Put quality and service at the first place"; Carrying forward our corporate spirits"Honesty and High efficiency, Unity and Struggle, Factualic and Innovative". We'll continue to hold the development and improvement as our main rhythm, stepping forward to the goal of becoming diversification, internationalization and high technological modern enterprise. We will make new contribution to set up the international advanced level in the vacuum fields.
