1. Germany Ball Screw Nut, guarantee the working clearance is very small.
2. Broken-point memory ensures the continuity of work when inciddent happens.
3, Gantry movement ensures the undeformation after a long-time work as well as a higher accuracy; Solid gantry, well structure of lathe bed, stable lathe table.
4. Auto-oiling system, confirm the power was uniform in these three axis.
5. Mainly used for breast-plate engraving, & cut 2cm thickness organic glass easily.
6. Cast steel structure, solid without distortion.
7. Water-cooling spindle with low noise and guarantee long time mass processing.
8. Tool sensor system, save your time.
9. Optimized mechanical and electrical design with well-selected brand parts minimizes breakdown rate.
Applicable industry
Advertisement industry, handicraft industry, various types of man-made plate, LED, mold manufacturing, wood processing, craft manufacturing, light box cutting, building model, light equipment mold processing, sign and mark, acrylic board processing, PCB circult board, department cards.
Applicable material
Acryl, wood, Aluminum, 3D technology, copper, PVC board, MDF board, PCB Board, breastplate, indoor & outdoor decoration, etc.
|
Description |
Parameter |
|

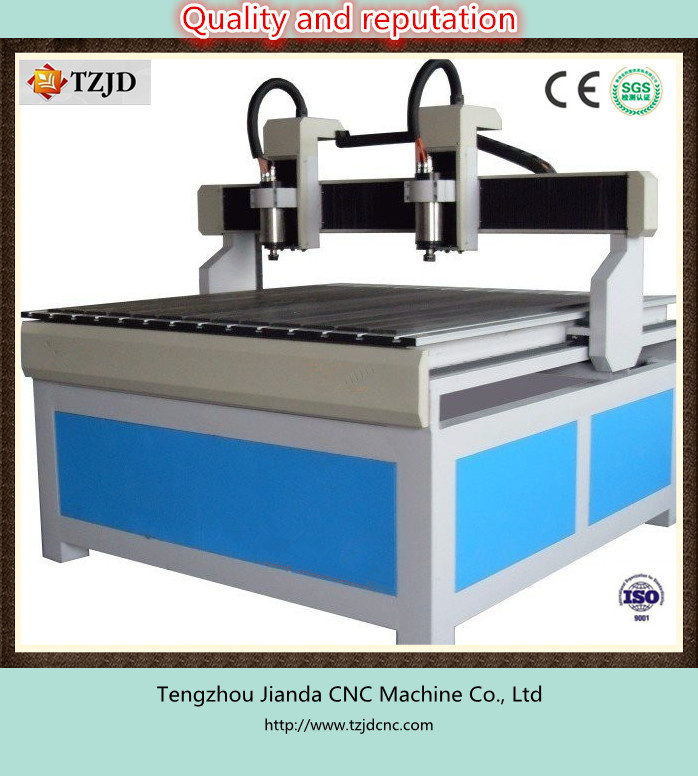

TZJD -1212 |
|
Working Area (X*Y*Zmm) |
1200mm* 1200mm* 150mm |
|
Max Engraving Speed |
6000mm/min |
|
Frame |
Cast Square tube welding |
|
XYZ travelling positioning accuracy |
± 0.03/300mm |
|
XYZ repositioning accuracy |
± 0.02mm |
|
Spindle power(KW) |
1.5 KW /2.2KW/3KW /4.5KW *2 |
|
Max. Power Consumption(Without spindle) |
1.2KW |
|
Spindle Speed |
6000-24000rpm |
|
Resolution |
0.005mm |
|
Repeatability |
0.01mm |
|
Voltage |
AC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ) |
|
Drive motor |
Stepper(option:Servo motor) |
|
Working table |
T-Slot with PVC board |
|
Working Dictate |
G Code*.u00*.mmg*.plt |
|
Operating system |
Nc-studio /DSP optional |
|
Software environment |
Windows98/2000/xp |
|
Interface |
USB |
|
Flash memory |
128M(U Disk) |
|
Software Compatability |
Type3,,Ucancam,Artcam Software) |
|
Running Environemt |
Temperature: 0-45 |
|
Relative humidity: 30% -75% |
|
Machine available |
Dust collector system, spindle cover, Japan Panasonic
Servo motor, vacuum absorption table & vacuum pump
system, Auto-oiling system, Tool-sensor, |
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine, advertising machine, marble/stone engraving machine, laser engraving cutting machine, metal mould machine, double heads engraving machine, cylinder engraving machine, etc.
The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. Our machines have already exported to USA, Canada, England, Australia, Russia, India and so on.
Tengzhou Jianda CNC Machine Co., Ltd Is the professional CNC router manufacturer. We adopt many computerized numerical patents. Our company is devoted in the research and development of engraving CAD/CAM technology and CNC technology and have obtained remarkable achievement in the design of precise engraving machine as well as artistic carving.
Today, TZJD CNC has developed to a large worldwide Manufacturing Group; And become an excellent leader of the world in this field. Our products have covered woodworking industry, advertising decoration, making label industry as well as crafts and gifts fields. We wishes to develop the double-win together with our customers. Welcome to your valuable advise.
Our products are famous for its low price, good quality and good after sales service. We are still try our best to produce innovative products to you.
