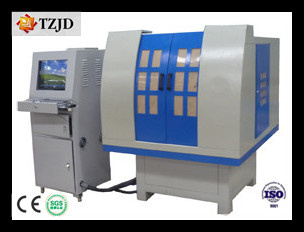

Mould Metal CNC Router machine
Mould cnc router, metal cnc router, mould engraving machine, mould milling machine, cnc mould router, mold metal engraving machine, cnc router, cnc engraving machine, cnc engraver, milling machine, stainless steel cnc router.
1. Tool sensor system, save extra time to adjust the machine.
2. Use high speed drive motor, also servo motors for optional.
3. It achieves 2D and 3D works easily.
4. This type machine can support these functions: Drilling/milling, engraving/carving, cutting.
5. It widely used for small materials working, without noise & high-power.
Many gear speed regulation and control function & Curve and linear speed independent control.
6. Water tank system on the body & water-cooled system automatically.
Applicable materials
Iron, stainless steel, copper, aluminum, plastic, marble, aluminum plate, timber, KT board, ABS board,
PVC board, acrylic, jade, sign board, mould, bronzing, badge, pattern mould, art carve, coin dyes, etc.
|
Description |
Parameter |
|
TZJD-6060MA |
|
Working Area (X*Y*Zmm) |
600mm*600mm*300mm |
|
Max Engraving Speed |
6000mm/min |
|
Frame |
Cast Steel |
|
Spindle power(KW) |
1.5 KW/2.2KW/3KW |
|
Max. Power Consumption(Without spindle) |
1.2KW |
|
Spindle Speed |
6000-24000rpm |
|
Resolution |
0.005mm |
|
Repeatability |
0.01mm |
|
Voltage |
AC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ) |
|
Drive motor |
Stepper(option:Servo motor) |
|
Working Dictate |
G Code*.u00*.mmg*.plt |
|
Operating system |
Nc-studio/DSP optional |
|
Software environment |
Windows98/2000/xp |
|
Interface |
USB |
|
Flash memory |
128M(U Disk) |
|
Software Compatability |
Type3,,Ucancam,Artcam Software) |
|
Diamerer of cutter |
3.175, 6mm, 12.7mm, 2, 1, etc. |
|
Running Environemt |
Temperature: 0-45 |
|
Relative humidity: 30%-75% |
|
Machine necessary |
Dust collector system, spindle cover, Japan Panasonic Servo motor, Auto-oiling system, Tool-sensor, water tank system, water-cooled system. |
