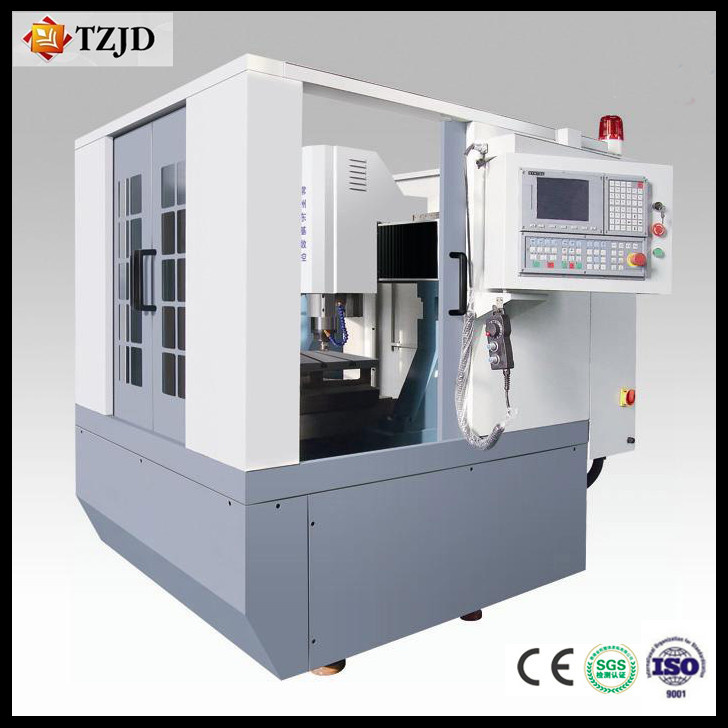

Metal Engraving Machine

Metal Engraving Machine
Price: Negotiable/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T
1. Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, adopts Taiwan line guide rail.

2. The gantry was confirmed and the working table can be move manipulable, improve the working-efficiency.

3. Tool sensor system, save extra time to adjust the machine.

4. Use high speed drive motor, also servo motors for optional.

5. Memory function ensures the processing point when the blade is broken or having to postpone the process.

6. With better compatibility, can math with many programs such as Typle3, artcam, castmate, proE, Coreldraw/CAD, CAM. It achieves 2D and 3D works easily.

7. This type machine can support these functions: Drilling/milling, engraving/carving, cutting.

8. It widely used for small materials working, without noise & high-power. Many gear speed regulation and control function & Curve and linear speed independent control.

9. Water tank system on the body & water-cooled system automatically.

Applicable materials:
Iron, stainless steel, copper, aluminum, plastic, marble, aluminum plate, timber, KT board, ABS board, PVC board, acrylic, jade, sign board, mould, bronzing, badge, pattern mould, art carve, coin dyes, etc.

CNC mould engraving machine, mould CNC router, metal engraving machine, mould CNC engraving machine, metal mold CNC machine, CNC router, mold carving machine, engraving machine, CNC engraving machine;
Description Parameter
TZJD-6060MB
Working Area (X*Y*Zmm) 600mm*600mm*300mm
Max Engraving Speed  6000mm/min
Frame Cast Steel
Spindle power(KW) 1.5 KW/2.2KW/3KW
Max. Power Consumption(Without spindle) 1.2KW
Spindle Speed      6000-24000rpm
Resolution 0.005mm
Repeatability 0.01mm
Voltage AC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ)
Drive motor Panasonic Servo motor
Working Dictate         G Code*.u00*.mmg*.plt
Operating system LNC control system
Software environment Windows98/2000/xp
Interface USB
Flash memory 128M(U Disk)
Software Compatability Type3,,Ucancam,Artcam Software)
Diamerer of cutter 3.175mm, 6mm, 12.7mm, 2mm,1mm, etc.
Running Environemt Temperature: 0-45
Relative humidity: 30%-75%
Machine necessary Dust cover system, control system integration shell, spindle cover, Japan Panasonic Servo motor, Auto-oiling system, Tool-sensor, water tank system, water-cooled system.
Prod Model: TZJD-6060MB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Area: 600mm*600mm*300mm
Color: White, Blue, Also as Demands
Structure: Germany Ball Screw
Body: Cast Steel
Spindle: 1.5kw/2.2kw/3kw/4.5kw Water-Cooling
Guide Rail: Taiwan Hiwin Linear Guide Rail
Machine Available: Water-Tank Device
Cooling Method: Water-Cooled System
Controller: Lnc Control System
Software: Type3, Artcam
Carving Material: Metal Alloy
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine, advertising machine, marble/stone engraving machine, laser engraving cutting machine, metal mould machine, double heads engraving machine, cylinder engraving machine, etc.

The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. Our machines have already exported to USA, Canada, England, Australia, Russia, India and so on.

Tengzhou Jianda CNC Machine Co., Ltd  Is the professional CNC router manufacturer. We adopt many computerized numerical patents. Our company is devoted in the research and development of engraving CAD/CAM technology and CNC technology and have obtained remarkable achievement in the design of precise engraving machine as well as artistic carving.



Today, TZJD CNC has developed to a large worldwide Manufacturing Group; And become an excellent leader of the world in this field. Our products have covered woodworking industry, advertising decoration, making label industry as well as crafts and gifts fields. We wishes to develop the double-win together with our customers. Welcome to your valuable advise.



Our products are famous for its low price, good quality and good after sales service. We are still try our best to produce innovative products to you.
