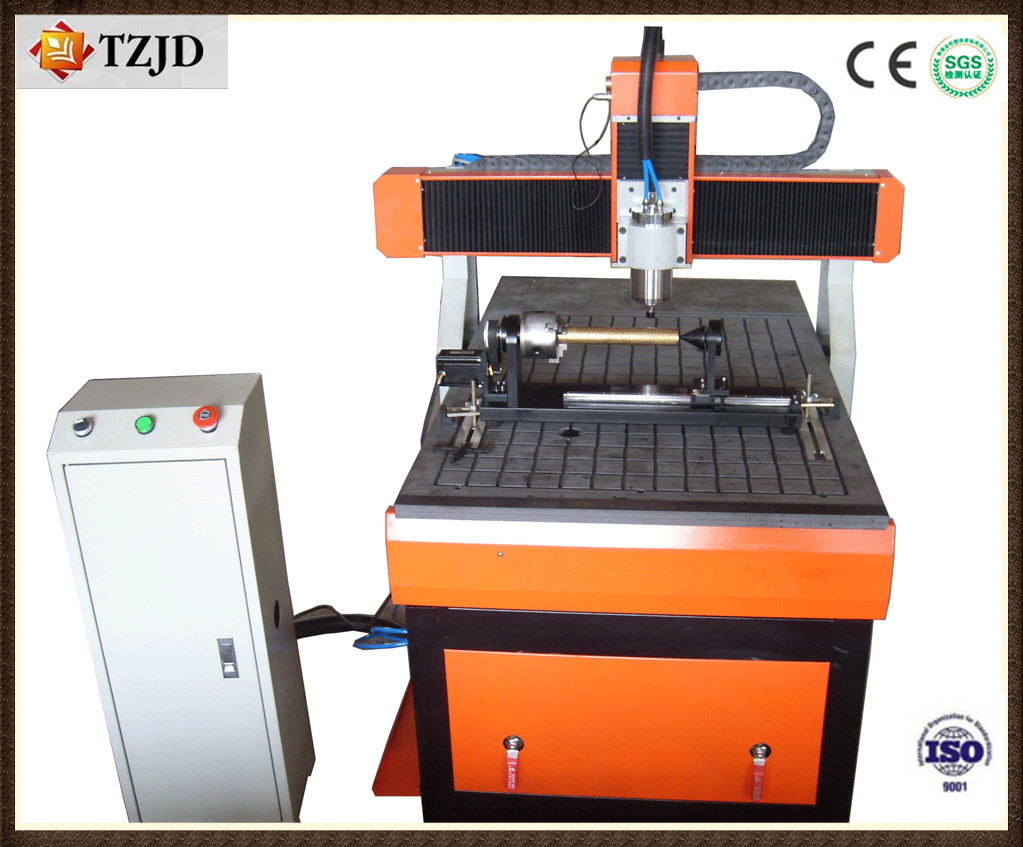

CNC Cylinder Engraver Carver CNC Machine
1. Spindle with water cooling system works vigorously with low noise
And guarantees long time mass processing.
2. Aluminum decorated appearance, beautiful shape and magnificent looking.
3. Wide range of use: Architecture model, school,
Government departments and enterprises.
4. German Ball Screw Nut and imported Guide; Guarantee the long-life using.
Pplicable industry
Can be used for advertisement engraving and cutting, handicraft industry, various types of man-made plate, LED, Neon literlly cutting groove, stone processing, mold manufacturing, wood processing, craft manufacturing, light box cutting, building model cutting, indoor decoration cutting, light equipment mold processing, sign and mark manufacturing, acrylic board processing, PCB circult board engraving.
Applicable material
Acryl, wood, Aluminum, 3D technology, copper, PVC board, MDF board, PCB Board, breastplate, indoor & outdoor decoration, etc.
| Description | Paramater |
| TZJD-6090C |
| Working Area (X*Y*Zmm) | 600mmx900mmx150mm |
| X, Y Structure | Gear Wheel Transmission, Shaft Linear Bearings |
| Z Structure | Ball Screw, Shaft Linear Bearings |
| Table Surface | T-Slot Table with PVC board |
| Max Engraving Speed | 20000mm/min |
| Frame | Cast Square tube welding |
| Spindle power(KW) | 2.2kw/3kw/4.5kw |
| Max. Power Consumption(Without spindle) | 2.0KW |
| Spindle Speed | 0-18000rpm |
| Resolution | 0.005mm |
| Repeatability | 0.01mm |
| Voltage | AC220V,50/60Hz,1PH(option,380V 3PH) |
| Drive motor | Stepper/servo |
| Working Dictate | G Code*.u00*.mmg*.plt |
| Operating system | Dsp System/Syntec/LNC |
| Necessary function | Auto-oiling system |
| Interface | USB |
| Flash memory | 128M(U Disk) |
| Software Compatability | Type3,Ucancam, Artcam Software |
| Running Environemt | Temperature: 0-45 |
| Relative humidity: 30%-75% |
| Working software | Windows98/2000/xp/7 |
| Machine available | Rotary device (12cm, 16cm, 20cm, 30cm, 35cm, different diameters); Dust collector system with duct cover; Auto-oiling system; etc. |
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine, advertising machine, marble/stone engraving machine, laser engraving cutting machine, metal mould machine, double heads engraving machine, cylinder engraving machine, etc.
The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. Our machines have already exported to USA, Canada, England, Australia, Russia, India and so on.
Tengzhou Jianda CNC Machine Co., Ltd Is the professional CNC router manufacturer. We adopt many computerized numerical patents. Our company is devoted in the research and development of engraving CAD/CAM technology and CNC technology and have obtained remarkable achievement in the design of precise engraving machine as well as artistic carving.
Today, TZJD CNC has developed to a large worldwide Manufacturing Group; And become an excellent leader of the world in this field. Our products have covered woodworking industry, advertising decoration, making label industry as well as crafts and gifts fields. We wishes to develop the double-win together with our customers. Welcome to your valuable advise.
Our products are famous for its low price, good quality and good after sales service. We are still try our best to produce innovative products to you.
