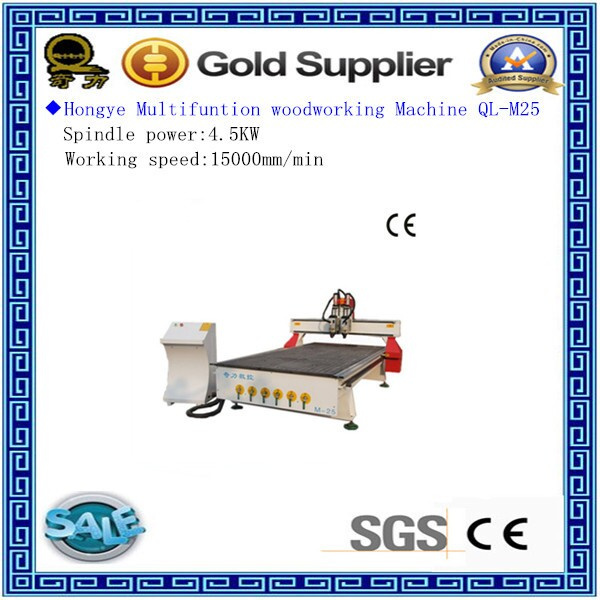

china vacuum table cnc engraving machine cnc woodworking router
1. Machine Features1) Vacuum table can fix materials of different sizes effectively2)Taiwan TBI balls screws, HIWIN square guide rails, high precision, Large load bearing and stable running. 3) Gantry-travelling, sturdy, reliable and stable, non-deforming, high locating accuracy. 4) Y axis use servo/stepper motor drive, select matching to ensure smooth movement. 5) DSP control system, with U disk available and not need computer( can be completely off-line operation. ), provides high independence and great convenienceFor operation. 6) Unique ability to save several point of origin on several workpieces. 7) No engraving saw-tooth, smooth undersurface, legible contour, by high-power spindle. 8) Auto seeking original point system, a good way to improve theWorking effeciency. 9) Large compatibility of drawing software, such as Type3, artcam andSome other CAD or CAM. 2. Application Industry and Materials: Wood CNC router is widely used in furniture industry, furniture decorationIndustry, woodworking decoration industry, musical instrument industry, Wooden crafts industry, etc. And this machine is suitable for large areaPlate engraving, solid wood furniture engraving, solid wood art murals carving, MDF carving and cutting, etc. ---Woodworking Industry: Stereo wave board processing, wooden door, Various furniture product auxiliary processing. ---Advertising Industry: Advertising label, PVC plate, PCB board(drilling and engraving), Double color boards, logo production, acrylic cutting, plastic suction for making advertising dedication, word cutting, Sign making, crystal word, LED display screen, kinds of doorplate, Nameplate and so on. ---Mold Industry: Apply for carving various molds, wood pattern, Foam mould, And metal mold, etc. ---Musical instrument industry: Instrument 3D surface engraving, shape cutting---Wooden crafts. ---Exhibition industry: Showcase, etc. 3. Parameter| Brand | QL |
| Model | QL-1325 |
Engraving area
(W*L*thickness)(mm) |
1300*2500*200 |
| Working Form | Full-automatic |
| Spindle Power | 4.5kw air coooling |
| Spindle Rotate(rpm) | 6000~24000 |
| Motor Driver | Stepper motor (Chinese servo motor or Yaskawa servo motor is optional) |
| Tool Diameter(mm) | Ø3.175, Ø4, Ø6, Ø12.7mm |
| Machine Structure | Industry square tube structure |
| Transmission System | Taiwan TBI ball screw or high accuracy gear rack |
| X, Y, Z Rail | Taiwan HIWIN square rail |
| Mechanical Accuracy | <0.03/300mm |
| Engraving Speed(mm/min) | 8000~12000mm/min |
| Feeding Speed | Manual |
| Data Transmission | USB or PC connect |
| Support Format | G code or HPGL |
| Working Voltage | AC220V/50Hz or 380V/50Hz |
| Support Format | G Code or HPGL |
| Range of Application | Woodworking relief engrave, Cutting, Hollow |
| Machine Net Weight | 1200Kg |
4. Sample
6. PackagesWater-proof plastic film package with foam protection in each corner. Solid Seaworthy Wood Box Package with Steel Belt. Save space as much as possible for container loading. 7. Guarantee & After Sales Service: 1) The whole machine guarantee is 12 months except for special parts. 2) 24 hours technical support by phone, email or MSN, skype etc. 8. Company Information: Jinan Hongye CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate. The aim of Jinan Hongye CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision products. 9. FAQ: How long is the delivery time? For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days. How about the payment terms? 30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, PaypalDo You Arrange Shipment For The Machines? Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents. How about Guarantee & After Sales Service? The machine guarantee is 12 months. 2) 24 hours technical support by phone, email or MSN, skype etc. If some problems happened to this machine during warranty period, what should I do? We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever, so any doubts, just let us know, we will give you solutions in 24 hours. What is the MOQ? MOQ for our products is 1 set machine, we could send it to your country port if you tell detail information about your country port.
