Application:

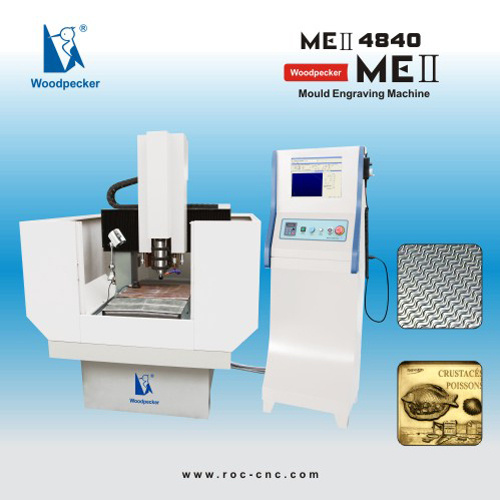

This mould engraving machine is released in 2008. It is very easy to operate. The sturdiness and precision of the machine will satisfy the most demanding mould processes. The Z axis uses pneumatic balancing. It comes with a 4.5kw high frequency spindle, which ensure high cutting power. It is suitable for injection molding and steel and copper dies.
Main Configuration Information:
Engraving Area: 480*400mm
Height of Gantry Lifting: 200mm
Max. Travel Speed: 10m (servo)/min
Spindle Power: 4.5KW water cooled spindle
Machine Body: Double column stand, cast iron built, and linear guide system. German ball screw, SaiO2 controller, 380V triple phase. Imported servo system(half enclosed).
I set of cutters (8PCS) supplied with each machine. Specialized cutters available for hard materials.
Product Highlights:
1. The machine has a double column design, rectangular linear guide, imported ball screw, imported digital AC servo motor, half enclosed.
2. This CNC mould engraving machine can very easily satisfy most mould cutting requirements.
3. Z-axis with air-balance design for more smooth and steady working.
4. Equipped with 4.5KW water cooled spindle ensures the high cutting efficiency.
5. I set of cutters (8 PCS) supplied with each machine.
6. Simple operatin panel, more easy to operate.
7. Precise and sturdy.
8.12 Months Warranty on all parts and labour.
9. Power-off protective memory function assures restarting work in the same position after power-off.
Guarantee & Aftersales Service:
Comprehensive guarantee for one year except the wearing parts.
24-hour technical support by email or calling.
User-friendly English manual for machine using and maintaining.
With the following optional devices, more functions can be added to the engraver machine:
Add fourth axis(Step Motor)
Add fourth axis(Servo Motor)
|
Model |
MEII-4840 |
|
Working Table Size |
540*435mm |
|
Max. Working Size |
480*400*200mm |
|
Spindle Power |
4.5KW water cooled spindle |
|
Positioning Precision |
± 0.02/300mm |
|
Spindle Rate |
18000r/min |
|
Max. Travel Speed |
10m/min |
|
Engraving Tool Diameter |
Ø 3.175∼ Ø 12mm |
|
Driving Motor |
Step motor, half enclosed |
|
Power Source |
AC380V± 10% 50HZ |
|
Consumption |
9.0kw |
|
Wearing Parts |
Cutter |
|
Machine Dimension |
1500*1500*1900mm |
|
Machine Net Weight |
1500kg |
|
Package |
Fumigation free wooden case package |
|
Packing Size |
1650*1650*2180mm |
|
Gross Weight |
1800kg |
