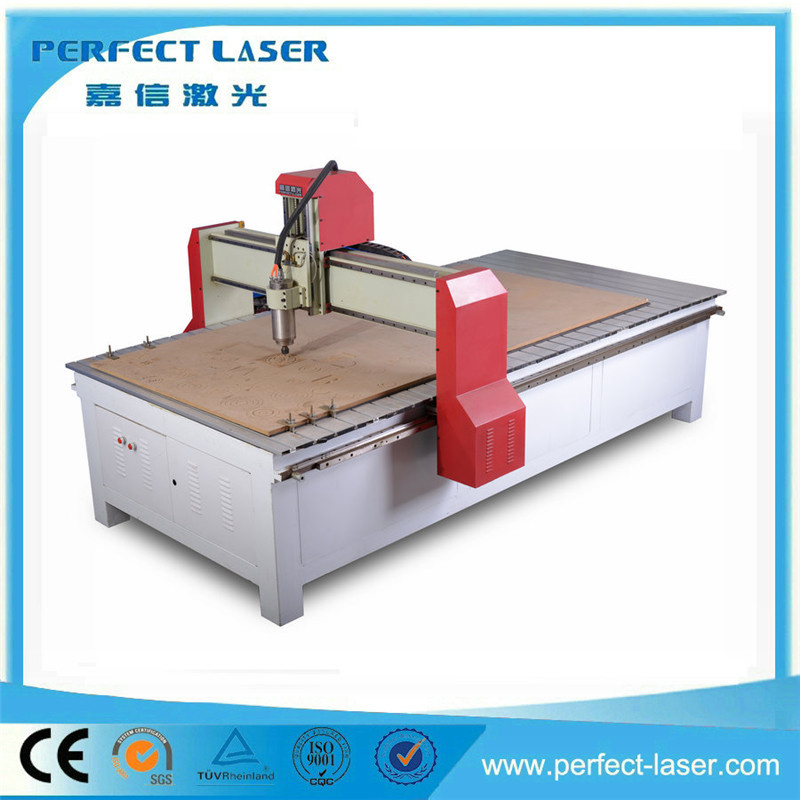

MDF/Door/Furniture/Wooden CNC router with ATC/DSP/Vacuum Absorbing table/dust collecting system
Special Features
Using Professional Dust Collecting System (for Cutting Wood) and Vacuum System (for absorbing objects)
Advanced digit-control system, handle operation and large liquid crystal display brings out more convenient operation, simpler maintenance and more human nature on the design of the machine.
The three axes use linearity square guide rail and drive which could meet different cutting demand and has high cutting precision.
Unique intelligent calculation fully develops the potential of the electric machinery and leads to high speed processing, the synchronization of curves and straight lines, smoother curves and race speed at 12m/min.
Large internal memory capacity of 32M is able to store 30 processing files simultaneously and open and process any of them.
This model uses domestic-leading PCI controlling system. It uses imported square shape guide rail and the transmission is steady. It adopt high-precision level gear transmission, the maximum speed can reach 30m/m. It can engrave the graph of 1.5*1.5mm clearly.
It equipped with aluminum work table with special design, which can endure much weight. On the base of PEM-1325A, it uses the vacuum work table, which can adsorb the wood dust, and make the environment clean. And it adopts a more advance XYZ Auto-oil-feeding system.
If you want to know more, please contact us RIGHT NOW!
| Model | PEM-1212A | PEM-1212B | PEM-1325A | PEM-1325B |
| Working Area(X,Y,Z) | 1200*1200*100mm | 1300*2500*120mm |
| Perfect Laser also have the ability to custom-made according to user's special demand |
| Spindle Power | 3KW | 4.5KW | 3KW | 4.5KW |
| Table material | Aluminium Alloy, Cast Steel Structure |
| Maximum feed height | 80mm-300mm |
| X,Y,Z Guideway rails type | Square Guide Rail, Gear Transmission |
| Working Delicacy | 0.025-0.05mm |
| Max Engraving Speed | 25,000mm/min |
| Resolution ratio | 0.002mm |
| Repetition accuracy | ±0.02mm |
| Spindle Rotating Speed | 6000 - 24,000rpm |
| Spindle cooling | Water Cooling |
| Drive motor system | Step Motor and Step Driver(Option: Servo System) |
| Interface | PCIPort or USB Port |
| Memory buffer (Flash) | 128MB (U Disk) |
| Engraving Command | G code, u00, mmg, PLT, HPG |
| Command language system | English Version, Windows 98/2000/XP Operation System |
| Operational Software | Original Type3 Software, ArtCam software or Wentai Software |
| Command language system | English Version, Windows 98/2000/XP Operation System |
| Software Compatibility | Support CAD/CAM software, PLT format, Corel Draw, Auto CAD |
| Working temperature | 0-45 |
| Relative humidity | 30% - 75% |
| Remark: the PEM-1325B is equipped with Vacuum work table and adopt more advance X-Y-Z Auto-oil-feeding System. |
