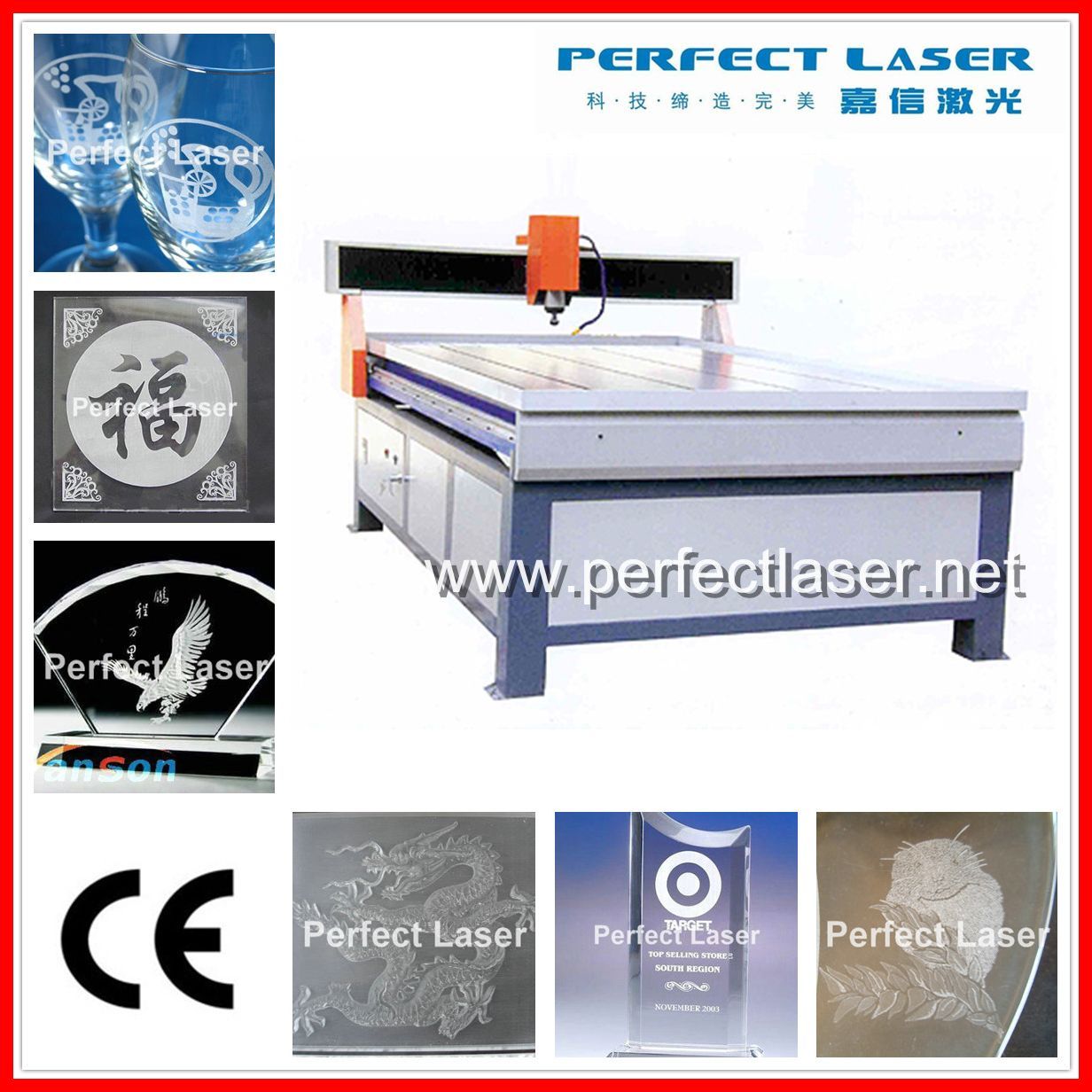

Wood / Acrylic / metal / plastic CNC Router Machine with CE certificate
CNC Router machine Instruction:
Our Advertising CNC Router is designed with pure Aluminum, which ensures the parallelism, verticality and concentricity and greatly increases the precision and speed of the engine bed. It is applied in cutting of kneading board of large size and making of large-scale relief and label. The size of the machine is calculated and customized according to optimization rules in market Statistics. It covers main sizes of marks and labels in the
Market. It can cut through Plexiglas with thickness of 20mm one time without trouble and can be applied to large-scale relief, too. It is doubtlessly a perfect product in the range of advertising.
Special Features
1) X, Y, Z axis use imported ball bearing guide screws. It's precise and fast. Even the letters of 1mm can be clearly discernible. The small-power machine uses large-power main axis, it's an ideal product for
Manufacturing labels, construction models and moulds in batches.
2) High speed calculation It uses DSP64 contouring control system and FPGA technology which can
Continually and smoothly run the three axes with high speed. It has the ability of calculation of 5000 vector/s.
3) Steady data transmission. The data transmission uses the technology of ISA/IP DNC/IP straight association, which can associate the machine without interruption, and it has no limitation of the amount of the document.
4) Double-nut guide screw. It uses Germany-imported high-precision ball bearing guide screw which can
Eliminate cracks automatically. Coordinated with the imported shaft coupling, it can realize precise control. It
Uses straight line guide rail (cylinder or square), which can ensure the working life.
5) Large internal memory capacity of 32M is able to store 30 processing files simultaneously and open and process any of them.
6) Connection with the computer via USB interface enables data to be transmitted in a second, supports hot plug and play, no driver installation required(Window98/NT/2000/XP)
Application:
Our Advertising CNC Router Series are widely used in the field of Advertising board, Label design, Acrylic cutting, model of the multi material decoration products. Which is also widely applied in engraving and cutting on all kinds of metal and nonmetal materials, such as wood engraving, wood cutting, MDF Engraving, MDF Cutting, PVC plastic Engraving, PVC plastic Cutting, plexiglass engraving, plexiglass cutting, acrylic engraving, acrylic cutting, organic glass engraving, organic glass, etc.
|
Product Name |
CNC Router |
|
Model |
PEM-6090 |
PEM-1212 |
PEM-1215 |
PEM-1218 |
PEM-1325 |
|
Working Area |
600*900mm |
1200*1200mm |
1200*1500mm |
1200*1800mm |
1300*2500mm |
|
Perfect Laser also have the ability to custom-made according to user's special demand |
|
Table material |
Aluminium Alloy |
|
Maximum feed height |
80mm |
|
X,Y,Z Guideway rails type |
Round Shape Guide Rail, Rod Transmission |
|
Max Engraving Speed |
4,000-7,000mm/min |
|
Resolution ratio |
0.002mm |
|
Repetition accuracy |
±0.02mm |
|
Spindle power |
1.5KW (Optional 2.2kw, 3kw,4.5kw) |
|
Spindle Rotating Speed |
6000 - 24,000rpm |
|
Spindle cooling |
Water Cooling |
|
Drive motor system |
Step Motor and Step Driver |
|
Interface |
PCIPort or USB Port |
|
Memory buffer (Flash) |
128MB |
|
Engraving Command |
G code, u00, mmg, PLT, HPG |
|
Command language system |
English Version, Windows 98/2000/XP Operation System |
|
Operational Software |
Original Type3 Software, ArtCam software or Wentai Software |
|
Command language system |
English Version, Windows 98/2000/XP Operation System |
|
Software Compatibility |
Support CAD/CAM software, PLT format, Corel Draw, Auto CAD |
|
Working temperature |
0-45 |
|
Relative humidity |
30% - 75% |
