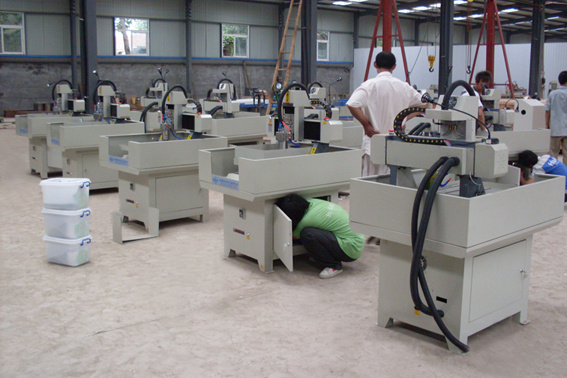

Product's description: Metal engraving&milling machines BRM-A Series
1. Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, adopts Taiwan Hiwin straight line guide rail.
2. Use high speed drive motor, the speed enhanced nearly 1.5 times faster than the original type.
3. Memory function ensures the processing point when the blade is broken or having to postpone the process.
4. With good compatibility, this machine can work with many programs such as Typle3, artcam, castmate, proE, Coreldraw/CAD, CAM. It achieves 2D and 3D works easily.
Applicable industry
Moulding industry, it can engrave all kinds of nonmetal molulding, especial for autocar foam moulding, steamship wooden model, aviation wooden model, train wooden model, etc.
Musical instrument industry, it can engrave 3D surface of large scale musical instrument and the contour cutting. Metal engraving&milling machines BRM-A Series
Applicable materials
Plastic, wood, metal.
|
Description |
Parameter |
|
BRM0303A |
BRM0405A |
BRM0506A |
BRM0606A |
BRM06075A |
|
Working Area (X*Y*Z) |
300*300* 100mm |
400*500* 150mm |
500*600* 110mm |
600*600* 110mm |
600*750* 150mm |
|
Structure |
Whole cast iron |
|
Spindle power |
1.5KW/2.2KW /3.0KW/4.5KW, etc. |
|
Max Moving Speed |
15000mm/min |
|
Max Engraving Speed |
5000mm/min |
|
XYZ traveling positioning accuracy |
± 0.02/300mm |
|
XYZ repositioning accuracy |
± 0.02mm |
|
Cutting thickness of material |
≤ 40mm |
|
Platform pressure deformity |
< 0.02mm(150kg) |
|
Spindle Speed |
6000-24000rpm |
|
Voltage |
AC220V, 50/60Hz(option: AC110V, 50Hz/60Hz, AV380V, 50Hz/60Hz) |
|
Drive motor |
High-precision stepper motor(Option: servo motor) |
|
Command language |
G code |
|
System |
NC-studio (Option: DSP or Taiwan LNC System) |
|
Tools |
Specially for metals |
