APPLICATIONSThis machine is perfect for 3d engraving and flat objects at the same time. It is widely used in 3D carved plates with wave patterns, cabinet door, solid wooden door, craft wooden door, non-painting wooden door, screen, craft windows, computer desk and the panel furniture auxiliary processing etc.
STANDARD CONFIGURATIONY axis with double motor drivers ensures stable and smooth movement.
High precision rack gear transmission ensures fast speed and high accuracy.
Imported linear square rails ensure high accuracy and maximum work load. A.
Adopting vacuum system, made by advanced international technology, configured with vacuum pump of strong absorption, can absorb different size materials.
Humanized design of vacuum table with T-slot and clamps, can absorb or clamp the material conveniently.
Intelligent protection of working table can avoid damage due to wrong operation. Intelligent overrunning protection can avoid mechanical collision when set graphic exceeds processing size.
Automatic lubrication system fulfills the periodic lubrication maintenance just by one single touch.
OPTIONS4.5KW/7.0 spindle(HSD or water-cooling).
Special size table. From 4x4 feet~7x21 feet.
Special size for Z axis: From 200mm to 500mm.
Vacuum table or Aluminum T-slot extrusion table.
Automatic lubricating system.
Yaskawa servo system.
Dust collecting system
Mach3 controlling system.

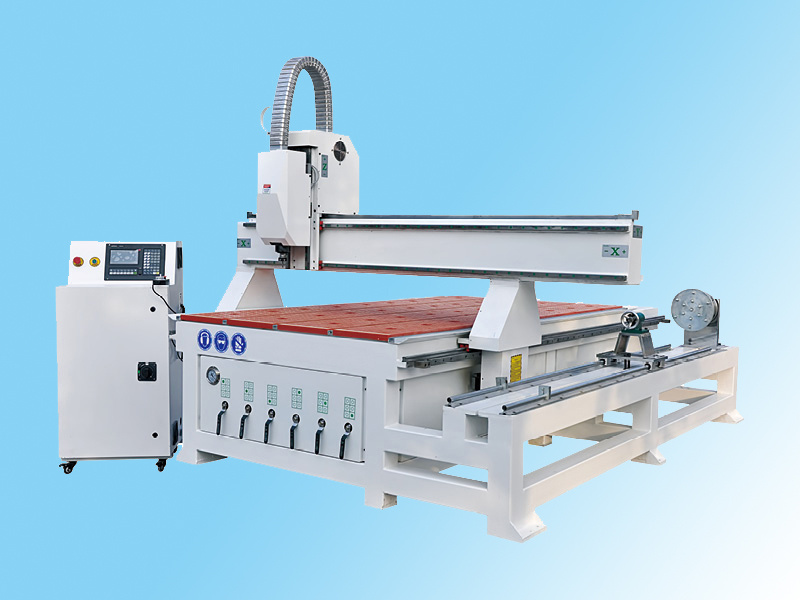

Diameter of Rotary device(0-400mm)
TECHNICAL PARAMETERS | Model | XE1325 | XE1530 | XE2030 | XE2040 |
| Working size(X*Y*Z) | 1300x2500x200mm | 1500x3000x200mm | 2000x3000x200mm | 2000x4000x200mm |
| (51.2x98.4x7.9inch) | (59.1x118.1x7.9inch) | (78.7x118.1x7.9inch) | (78.7x157.5x7.9inch) |
| Spindle Power | 3.0KW | 3.0KW | 3.0KW | 3.0KW |
| Spindle Speed | 0-24000rpm |
| Reposition Accuracy | <±0.03/300mm |
| Tool Diameter | Φ12.70mm |
| Maxi Moving Speed | 50000mm/min |
| Maxi Engraving Speed | 25000 mm/min |
| Transmission | X,Y axis high precision Rack gear; Z axis ball screw |
| X,Y,Z Guide Rail | Square Linear Rail(Taiwan) |
| Dust Collector Power | 3.0KW |
| Vacuum Power | 5.5KW |
| Control System | AD-Tech System |
| Working Voltage | AC380V/50HZ |
| Interface | Printer port 50pins or USB |
| Software | Type3, Ucancam V9, Vectric |
Jinan Zenith CNC Equipment Co., Ltd., was founded in 2007, is a specialized manufacturer on advertisement equipments, due to the experiences of 9 years of research and manufacture in this field, we have produced "XZ" series CNC Routers for woodworking, advertisement stuff machining and mold processing, and laser equipments as well. "ZENITH" is our new brand for oversea market.
We make the high quality advanced machines, we are providing the best after-sale service in China. And we are also offering the most competitive price to all of the customers. "ZENITH" is known by more and more people. At present, our products have been exported to many countries and regions such as Czechic, England, Russia, Brazil, Paraguay, India, Australia, Thailand, Singapore, Malaysia, China Taiwan, and so on. We have enjoyed the mutual benefit and will move on, and we hope to establish a long term business relations with more and more oversea customers.
