Subject: Concrete pipe making machine of Roller Suspension
Keywords: semi-automatic concrete pipe machine, cement pipe making machine,
Concrete culvert pipe making machine, reinforced cement pipe production line.
Details: this roller spun machine is a new advanced pipe making machine popular in the world. With half-dry cast concrete as material, the roller will be drove by the electric motor, and rotate at a high speed, the roller force will compact the concrete ,and also the centrifugal force will make concrete solid and form the pipes.
This machine can make pipes with diameter from 300-2500mm and length from 2-4meters.
We can design many kinds of the pipe joint, including flush joint, socket& spigot joint
And all the concrete pipes are widely used in administrative drainage, agricultural field irrigation, road culvert and deep water well.
Characteristics: Variable frequency Siemens Motor
Automatic concrete feeding conveyor
Easy to operate Frequency inverter
Host machine power |
18.5KW |
Rotor frequency of roller |
40-50rpm |
Molding time |
5 - 10 min |
Host machine weight |
2.7T |
Dimension(mm) |
2105*1900*4250 |
Pressure |
100T |
Production capacity |
100-120 pcs/day |
Concrete mixer |
JD350 |
Pipe size(mm) |
φ200*1000, φ300*1000, φ400*1000,
φ500*1000, φ600*1000,
φ800*1000, φ1000*1000 |
Raw material |
Cement, sand, broken stones |

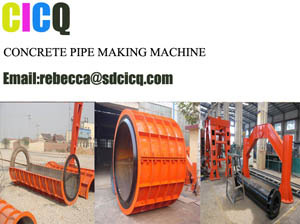

technique of concrete pipe machine&mould
1.Steel cylinder:Raw material of the National Standard 6-12mm thickness Steel sheet, We use the CNC Three rollers Reeling machine to make the cylinder, precise in the size, and use spot welding first on the joint, After finished, then use the continuous welding to make a good steel cylinder.
2. Latitudinal Steel:with USA Powermax Plasma power supply, and our CNC machine to cut the latitude Steel. Very beautiful cutting, no rough edge, high accurate size according to the Drawing by USB input.
3.Longitudinal Steel:we purchase the entire 6 meter or 12 meter long , width 100-150mm, thickness 10-30mm Steel strip, and use. Then use the flame cutting at the designed length. It is higher strength, and non-deforming. Which helps the mould longer using life.
4.Anti-rust painting:the good quality oil paint will be used at this stage, the anti-rust painting helps the moulds clean, no rust, and water-proof.
Shandong CICQ Heavy Industry Co., Ltd is a Chinese supplier and manufacturer producing Concrete pole machines/Concrete pipe machines;
-Our products: We can design, produce, install, and service concrete pipe making machine/electrical pole production line suited to your application.
-Our quality: The equipments and moulds meet the national standards and can be customized according to the standards of the world.
-Our market: Our products have spread all over Africa, Middle Asia, Southeast Asian countries.
-Our service: Application reviews, testing, installation, and we stand by our product with a strong commitment to customer service.
