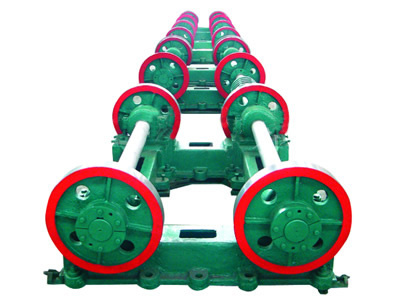

Steel mould Concrete Prestressed Poles electrical pole for Transmission
The working principle :
1. Steel mould should work together with the pole of spinning machine. Steel mould should be placed on a spinning machine smoothly.
2. The mixed slurry into the mold, to drive the rotary motor in different directions under.
3. In this process, in the concrete of the excess water released by centrifugal force, and the dense,high strength concrete. Then, the inner wall of the magnetic pole formed around the column mould.
Description:
This mould is used for electronic concrete pole making. Its mainly manufacture technology is longitudinal tension by steel wires. Then it can squeeze out the excess water in the concrete under the centrifugal force. Thus, it can greatly improve the concrete density and strength.
In order to form the concrete more quickly to meet the design strength of more than 70%, steam curing can be carried out so as to shorten the mould-releasing cycle.
Technical Parameter:
Inner diameter of top end (mm) | Length (m) | Tread (m) | Running Wheel Diameter (mm) | Length (m) | Tread (m) | Running wheel diameter (mm) |
| 100 | 6-7 | 2 | /
600 | / | / | / |
| 130 | 6-8 |
| 150 | 6-11 |
| 170 | 7-12 |
| 190 | 7-13 | 15 | 2 | 650 |
| 230 | 6-9 | 12 |
| 270 | 6 | 9 |
| 270 | 6 | 9 |
| 283 | 6 | 600 | / | / |
| 310 | 6-9 | 650 | / | / |
| 350 | 6 | 9 | 700 |
| 390 | 6 | 700 | 9 | 750 |
| 430 | 6 | 750 | / | / |
| 470 | 6 | 780 | / | / |
| 510 | 6 | 800 | 9 | 850 |
| 550 | 6 | 850 | / | / |
Technical parameter of pole steel mould
Parameter
Specs |
Top diameter Φ0(mm) | Length
(mm) | Tread of wheel
(mm) | Tread diameter of running wheel
ΦP(mm) | Tread width of running wheel
B(mm) | Taper |
| DMZ1507-10 | 150 | 7000~10000 | 2000 | 600 | 95 | 1:75 |
| DMZ1908-14 | 190 | 8000~14000 | 2000 | 600 | 95 | 1:75 |
| DMZ1915-18 | 190 | 15000~18000 | 2000 | 650 | 95 | 1:75 |
| DMZ1919-21 | 190 | 19000~21000 | 2000 | 700 | 95 | 1:75 |
| DMZ1922-27 | 190 | 22000~27000 | 2000 | 800 | 95 | 1:75 |
| DMZ239-27 | 230 | 9000~27000 | 2000 | 900 | 95 | 1:75 |
| DMD306-10 | 300 | 6000-10000 | 2000 | 600 | 95 | Equal Diameter |
| DMD406-14 | 400 | 6000-14000 | 2000 | 650 | 95 | Equal Diameter |
| DMD506-15 | 500 | 6000-15000 | 2000 | 750 | 95 | Equal Diameter |
| DMD606-18 | 600 | 600-18000 | 2000 | 850 | 95 | Equal Diameter |
Competitive Advantage:
1. Welding technology, this enhances the smooth finish of the mould wall, and eliminates the uneven traces of rivet holes. So the concrete poles appearance will be improved significantly.
2. The cylinder is changed to U-type longitudinal stiffeners which can greatly increase the stiffness and flexural strength of the steel mould,
3. Install the slot with rubber sealing strip, in order to prevent leakage to ensure quality.
Shandong CICQ Heavy Industry Co., Ltd is a Chinese supplier and manufacturer producing Concrete pole machines/Concrete pipe machines;
-Our products: We can design, produce, install, and service concrete pipe making machine/electrical pole production line suited to your application.
-Our quality: The equipments and moulds meet the national standards and can be customized according to the standards of the world.
-Our market: Our products have spread all over Africa, Middle Asia, Southeast Asian countries.
-Our service: Application reviews, testing, installation, and we stand by our product with a strong commitment to customer service.
