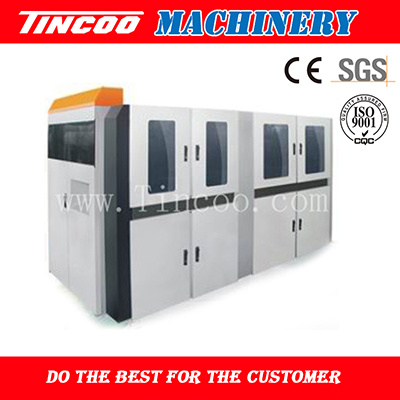

DH-B series full-automatic pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has one to eight cavities and the maximum capacity of the products is 0.6L and 1.5L,5L. It can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.
1).High Automatization
2).High Intelligence:The machine can be controlled through touch screen and running status is shown on it.
3).High Quanlity:Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4).High Speed:1400BPH(1-cavity) 2000BPH(2-cavity).
5).No Contamination:Closed production zone, good self-lubrication system avoid contamination.
6).Low Cost:Low consumption of electricity, air and water.
7).High Transparency:Easy maintenance, absolute safely, visual inspection, low noise.
Settings:
a).PLC colour display: OMRON(JAPAN)
b).Pneumatic parts:Parker(CHINA)
c).Controller of preform transfer:Servo motor National(JAPAN)
d).Other electric parts are all world-famous brand
Advanced processing equipment:
Machine center, digital lathe, EDM, such as many imported American and Japanese machine tools assure processing precision and good interchangeable function.
.
TYPE | ITEM | DH-B1500-6 |
CONTAINER | Number of cavity | 6 cavities |
Output | 5500-6000 pcs/hr |
Max.container volume | 2L |
Max.neck diameter | 80mm |
Max.container diameter | 105mm |
Max.container height | 300-330mm |
ELECTRICAL SYSTEM | Number of lamp | 65pcs |
Max.heating power | 65kw |
Installation power | 90kw |
Actual power consumption | 90kw |
AIR SYSTEM | Operatating pressure | 7-9kg/c |
Low pressure consuming | 2000 Ltr/min |
Blowing pressure | 25-35kg/c |
High pressure consuming | 3000-3500 Ltr/min |
CHILLER WATER | Operating pressure | 5-6 kg/c |
Temperatuer | 10ºC |
Consuming | 7600kcal/hr |
Flow rater | 45Ltr/min |
MACHINE | Machine dimension | 3.0x1.5x1.7 (m) |
Machine weight | 4.0ton |
Established in 1989, Zhejiang East Zhouqiang Plastic & Mould Industry Co., Ltd. is located in Huangyan--"Blow Molding Machine Town" in China, with total investment of 11 million US dollars and covers 50 thousand square meters. It is an enterprise professionally manufactures PE Blow Molding Machines, PE Extrusion Blow Moulding Machines, PET Stretch Blowing Machine and Extrusion Blowing Moulds.
Blow moulding machinery: Adopting foreign advanced technology and management system, and taking advantage of our solid technical power, we have been developing different kinds of plastic forming process and machinery. In accordance with plastic features, we developed series of blow molding machinery to meet customers's demand, such as fully-automatic PE blow molding machines, two-stage fully-auto pet stretch blow moulding machines, PE blow moulding machines, injection and stretch blow molding machines.
Focused on customers, cored on quality, the corporation and customers are viewed as a united whole. Customers" requirements are all we should do.
