Model NO.:
DIN 1.2714/GB5CrNiMo/JIS SKHT4
Type: Steel Plate
Technique: Hot Rolled or Forged
Standard: ASTM, AISI, GB, JIS, DIN
Special Use: Mould
Application: Hot Work Tool Steel
Place of Origin: China
Brand Name: Changgang, Taigang, Baogang, Fushun
Model Number: DIN 1.2714/ GB5crnimo/JIS Skht4
Certification: ISO9001: 2008; SGS Test; Mill Certificate Test
Export Markets: Global
Adavantage
High Quality
Various Type
Competitive Price
On time delivery
Product Description

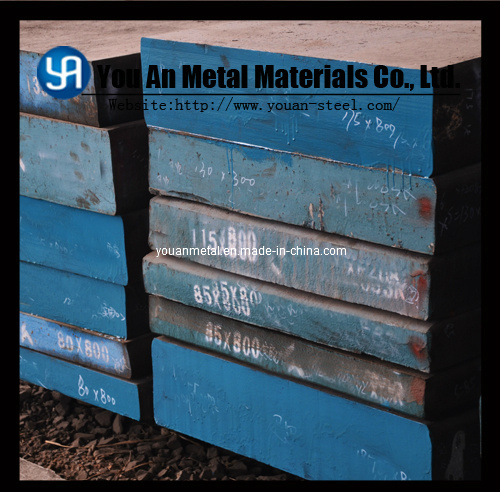

DIN1.2714 Hot Work Tool Steel plate
Description:
1. DIN 1.2714//GB5CrNiMo/JIS SKHT4 hot work tool steel
2. Hot rolled condition, annealing or Harden, black or milled surface
3. Hardness: 170~195HBS; 38~45HRC
4. Hot rolled technology: EAF+LF+VD
5. Ultrasonic test standard: SPE1921-GR3, CLASS D/D or E/E6. Heat Treatment:
Annealing softening Cooling Annealed Hardness HB
650 ° - 700 ° C In oven Max 250
Hardening Cooling Hardness HRC-N/mm ²
830 ° -870 ° C In oil 58-2200
860 ° -900 ° C In the air 56-2050
6. Production leadtime: 7~10 days
DIN1.2714 Hot Work Tool Steel Applications:
1. Construction of sub-matrices for the extrusion industry
2. Mold plastic in general
3. Mold Forging in general
4. Pistons pressers, containers and shirts for the extrusion industry
5. Shear blades
6. Low-pressure die casting molds
7. Details of mechanics in general
Din 1.2714 steel
1. Chemical Composition %
C: 0.50-0.60 Si: 0.1-0.4 Mn: 0.65-0.95 Cr: 1.00-1.2 Mo: 0.45-0.55
V: 0.07-0.12 Ni: 1.50-1.80 P: 0.03max S: 0.03max
2. Characteristics
Excellent wear resistance and edge holding ability
High surface hardness after heat treatment
Medium toughness
Good through hardening properties and dimensional stability
High compressive strength
3. Application
Wood chipper knives, industrial knives, shear blades, hot billet shears, cold forging and swaging dies.
2.
You An metal materials Co., Ltd, located in Dongguan, Guangdong, China. Which is a leading company of supply plastic die steel, hot work steel, cold work steel, alloy structural steel, bearing steel, high speed tool steel, carbon steel, stainless steel and so on with different kinds of steel, we are begin to export the steel material from 2005 with fully export working experience to the market all over the world, such as Europe, Brazil, USA, Poland, Turkey, Singapore, Malaysia, India, Korea and so on.
You An Steel focuses on special steel industry over many years, we has established reliable and stable sourcing with over 40 mills and manufacturers in China, Our company have introduced large-sized Vertical saw machines, Horizontal saw machines, Milling machines, Grinding machines and other advance equipments, we can export our products by wholesales and retail sales, it can sale of whole plate or strip, all our products can meet the standards of DIN, AISI, JIS and GB, all the material should be inspected the ultrasonic, hardness and others strict inspection process before the shipment! We hope to cooperate with the customers from different countries, shares its experiences and develops with the world together.
