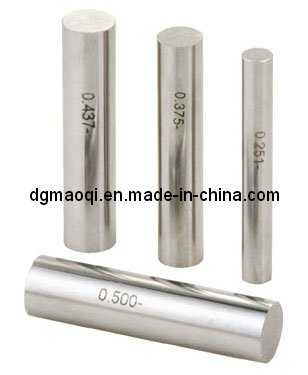

PIN GAUGE
1. Gauges: Pin gauge
2. Material: Steel, ceramic
3. Type: Various types
Ceramic pin gauge. Precision finishing. Good price with high quality.
Special steel, hardened and finely ground
PIN GAUGE
Pin Gauge is used to check the position, size of hole, distance between two hole, and the deep of hole.
It is necessary instrument for checking precision cast.
Pin gauge is widespread used for electronic tablet, circuit board, mold, prescision mechine, and so on.
Measuring Pin Set
Special steel, hardened and finely ground
Without Handle, DIN 2269
Contents: 41 Measuring Pins
Diameter-Range: 1, 0 - 5, 0 mm
Steps: 0, 1 mm
Tolerance +/- 1 µ M
Lenght: 70 mm
SIZE: Φ 6.0*50mm
Standard: DIN2269
Ceramic pin gages
Measuring Pin gauge set EH, EL, ER Japanese brand EISEN
Roundness: 0.3 micro meter
Size
(mm) |
Step
(mm) |
Length
(mm) |
Tolerance
(µm) |
Roundness/
Cylidricity
(µm) |
Hardness
(HV) |
0.100~0.199
|
0.01 |
40 |
±0.3 |
0.3 |
over
650 |
0.200~0.999 |
0.01 |
40 |
±0.3 |
0.3 |
over 650 |
1.000~7.000
|
0.01 |
50 |
±0.3 |
0.3 |
over 650 |
7.001~7.010
|
0.01 |
50 |
±0.3 |
0.3 |
over 650 |
7.011~10.000
|
0.01 |
50 |
±0.5 |
0.5 |
over
650 |
